NOTE: If the engine is stopped when the axle is in
the suspension mode, on engine start up the axle
will remain in the mid position and the indicator
lamp will NOT be illuminated. Axle suspension
mode will not be activated until the top of the switch
is pressed fully forward to position 2 and then
released. The indicator lamp on the switch will
illuminate to show axle suspension mode has been
activated.

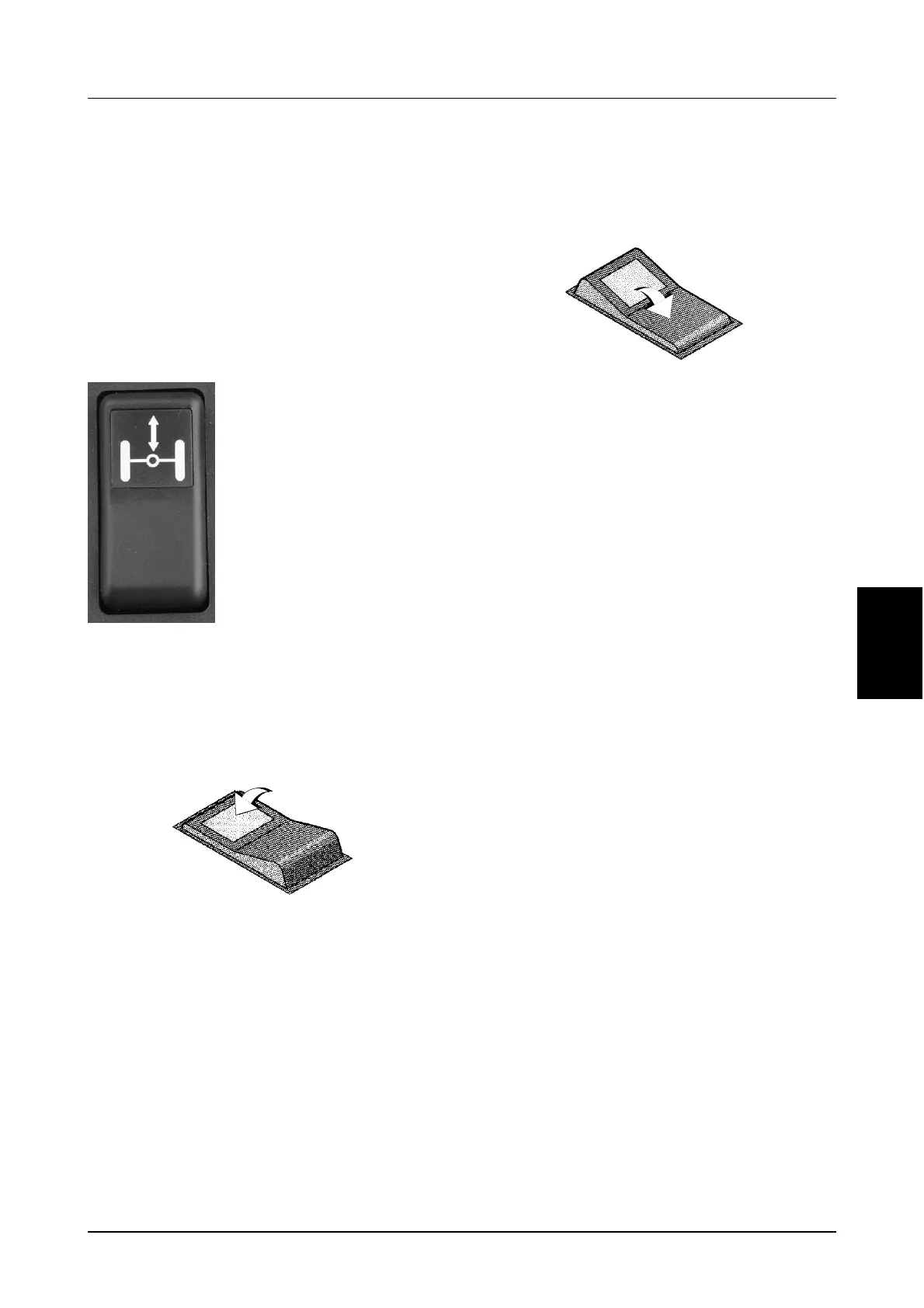

Manual Override Switch
MD04D001
Suspension RAISE
(to increase ground clearance)
DS98K259
Press and hold the top of the switch. The indicator
lamp on the suspension mode switch will go OFF.
Release the switch when required ground
clearance is reached.
Suspension LOWER
(to reduce ground clearance)
DS98K261
Press and hold the bottom of the switch. The
indicator lamp on the suspension mode switch will
go OFF. Release the switch when required ground
clearance is reached.
NOTE: Adjustment is only possible when axle
suspension mode is activated and the travel speed
is below 14 km/h (8.7 mph), above 14 km/h (8.7
mph) the axle automatically goes into suspension
mode and the indicator lamp will illuminate. The
axle will remain in the suspension mode if the
travel speed then falls below 14 km/h (8.7 mph).
NOTE: With the keyswitch in the ON position
(engine not running), the suspension will remain in
the manually adjusted position. The suspension can
be lowered by pressing the bottom of the Manual
Override Switch.
IMPORTANT: If the indicator lamp on the
suspension mode switch flashes, a fault has
occurred. The axle will remain in the current position
and can not be moved by operating either the
manual override switch or suspension mode switch.
See your dealer to diagnose the fault and reset the
system.
Manual Override will onl
operate when the axle
suspension mode is activated
Use the switch to manuall
adjust the ground clearance
within the total suspension
travel range of 90 mm (3.5 in)
to match working conditions.
