Tyres, Wheels, Ballasting
178

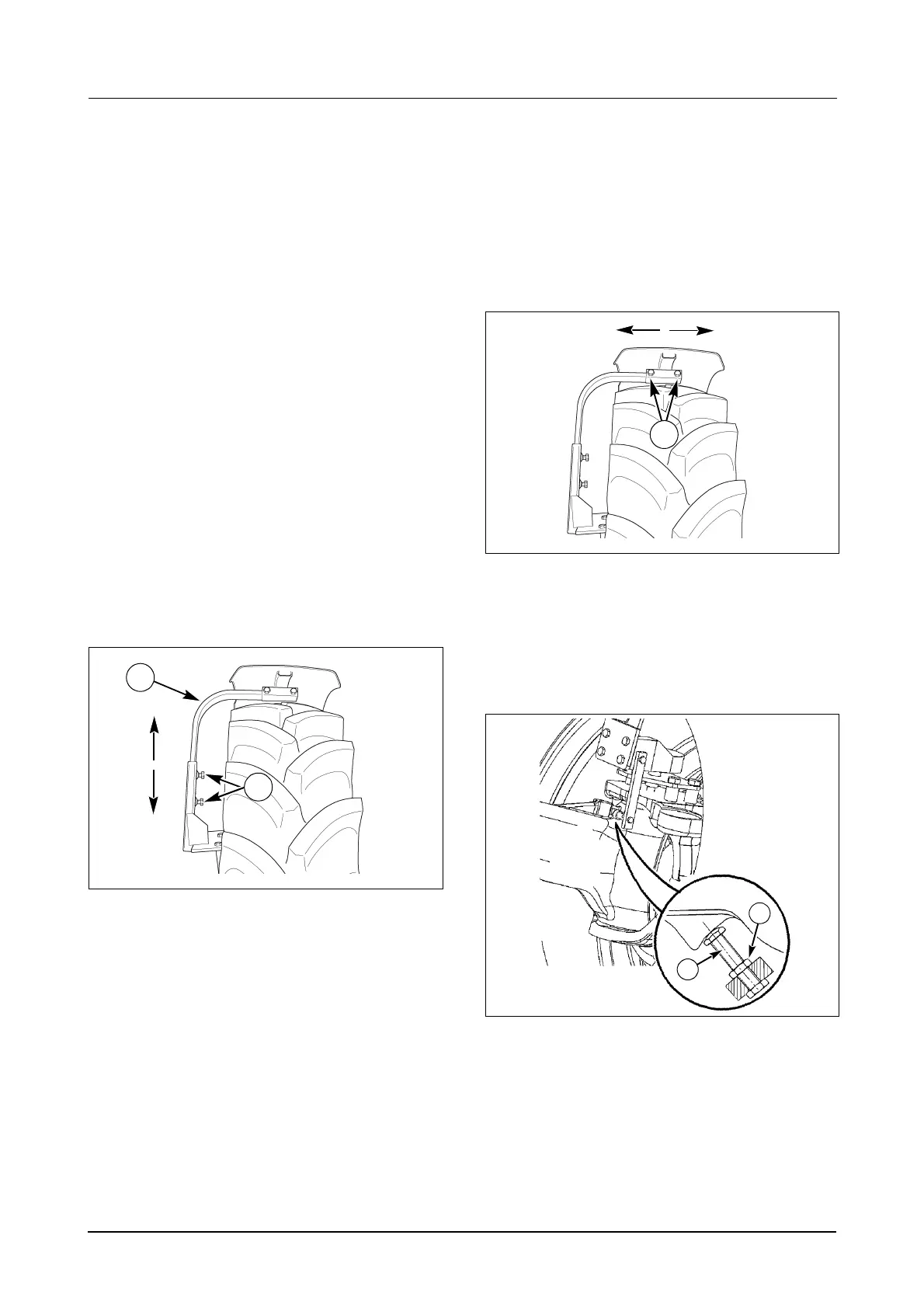

FRONT WHEEL FENDERS (If Equipped)
Front wheel fenders are available for all tractor
variants. On MFD and Independant Front
Suspension models the fenders are fully
adjustable to ensure the tyre is covered at all
tread widths.
The front fenders provide greater safety and keep
the tractor cleaner, therefore improving operation
and durability.
To provide the necessary clearance between the
fender and other tractor components, the fender
mounting position and the total amount of swivel
must be adjusted for the tread width and tyre size
being used.
Vertical Adjustment
Loosen the support brace mounting bolts (1) and
slide the support brace (2) up or down to the
correct position. Tighten the mounting bolts to a
torque of 50 Nm (37 Ib ft).
NOTE: The distance between tyre and support
brace must be 50-100 mm (2-4 in).
DS99G185
Horizontal Adjustment
Loosen the fender bracket mounting bolts (3) and
slide the fender bracket left or right until the
fender is central over the tyre. Tighten the
mounting bolts.
DS99G185
Swivel Limit Adjustment (If Equipped)
Loosen the lock nuts (4). Adjust the stop bolts (5)
in or out to achieve the correct amount of swivel.
Tighten the lock nuts.
MI03K010
2
1
3
4
5
