REAR THREE POINT HITCH DIAGNOSTIC DISPLAY
DP96N112
When power is applied to the electronic load
control system, the figure “8” is displayed for 1 to
2 seconds for a display check. If any segment of
the display is not illuminated, see your dealer.
Hitch Diagnostic Codes
This display does not tell the operator if the
controls are not adjusted correctly or if there is
an hydraulic problem. If the display code is “0”
and the hitch performance is reduced from what
it had been, contact your dealer.
NOTE: The DOT after the zero indicates that
the tractor is not moving. When the tractor
moves a minimum of 0.8 km/h (0.5 mph) the
DOT should disappear. If the Dot does not
disappear, contact your dealer.
If the hitch fails to function properly check the
diagnostic code and then report the error code
and your hitch malfunction to your dealer.
In all cases, before attempting to repair an error,
restart the tractor and observe if the error code is
repeated. The error code may have been caused
by the way the tractor was operated and the error
code will be cleared upon start-up.
A. Press and hold MOMENTARY position on
the hitch UP/DOWN switch until the UPPER
LIMIT setting is reached.
B. Adjust the UPPER LIMIT control knob
clockwise until the hitch position is
matched.
C.Press and hold the LOWER position on the
Hitch Remote switch until the UPPER LIMIT
setting is reached.
Make sure the UPPER LIMIT is set to the desired
position after the error code is cleared.
1

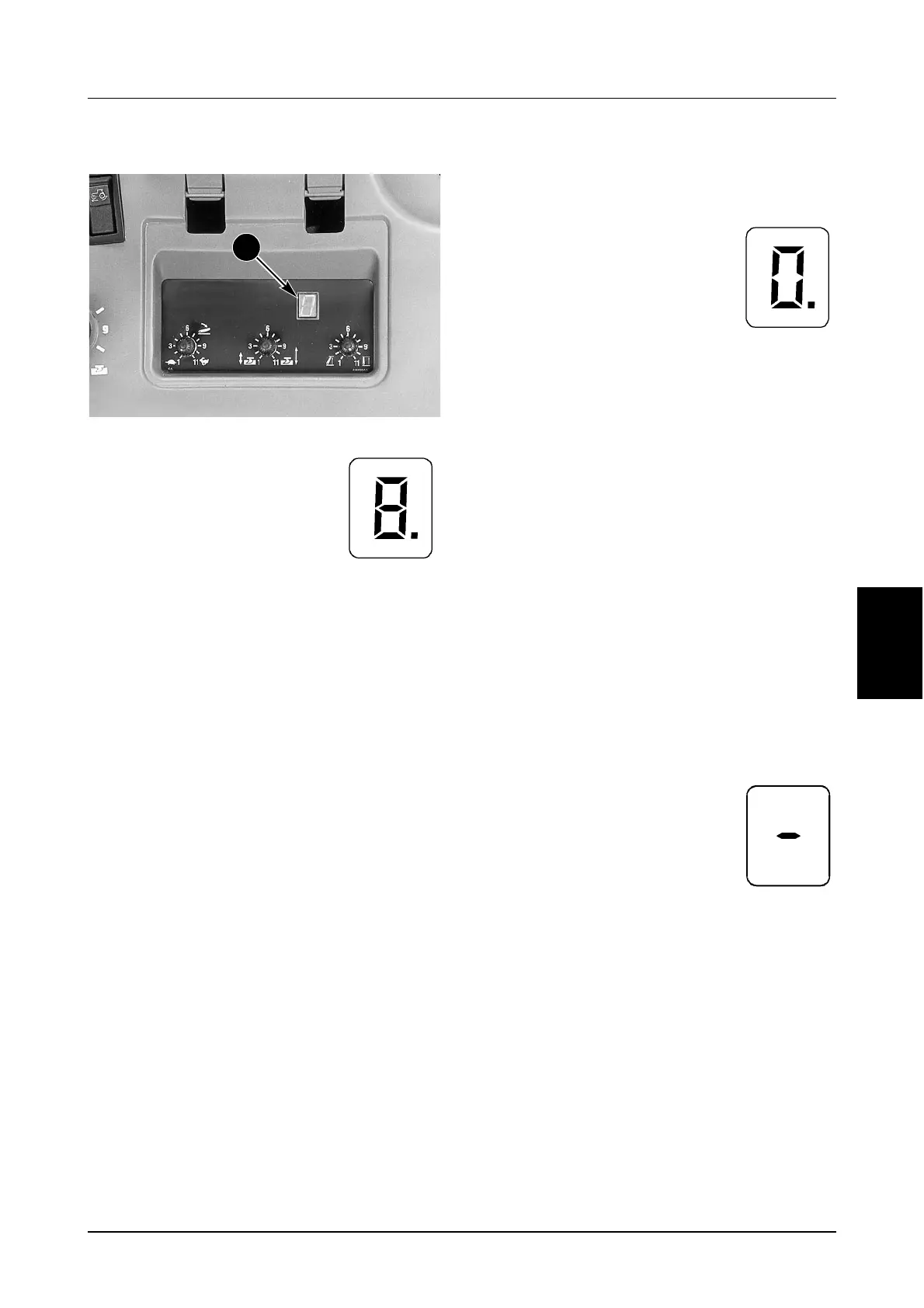

The Hitch Diagnostic display
(1) tells the operator the
condition of the electronic load
control system by a diagnostic
code.
DI95K036
DI95K037
The “0” code indicates
SYSTEMS NORMAL
SYSTEMS NORMAL means
that the electrical and
electronic parts of the hitch
system are functioning
normally.
DI96N139
The above UPPER LIMIT error
code, (as shown opposite)
occurs when starting the
tractor and the actual hitch
position is above the UPPER
LIMIT setting. This error code
can be cleared by the operator
by doing one of the following:
