Operating Controls
40

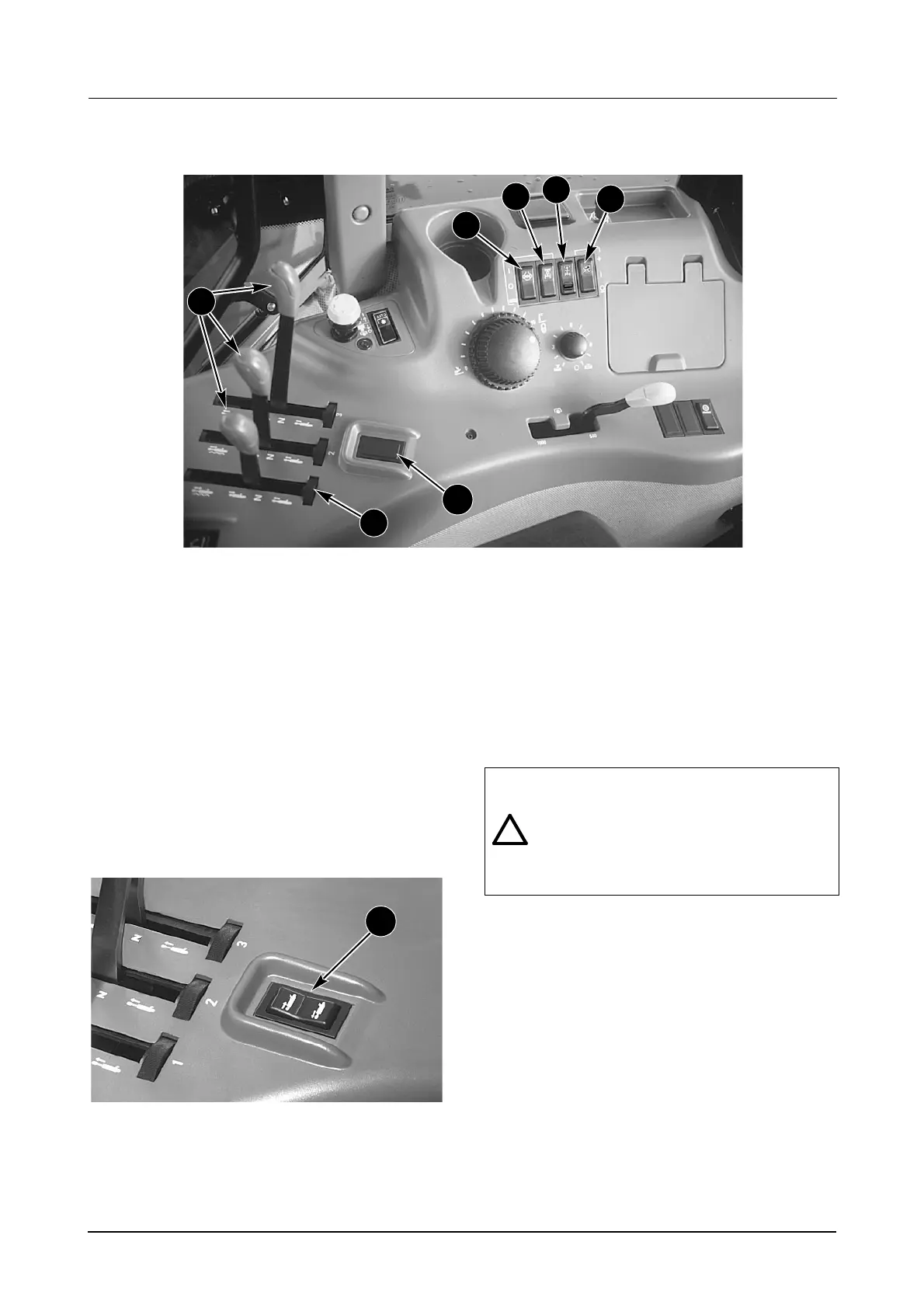

RIGHT HAND CONSOLE CONTROLS
MP01C050
1. REMOTE LEVERS LOCKING DEVICE -
See page 157.
2. REMOTE HYDRAULIC VALVE LEVERS -
See page 157.
Attachments Controlled By The Remote Levers:
Equipped with Auto Hitch ONLY
(Hook/Drawbar Extend/Retract) ....... Lever No. 3
Equipped with Front Hitch ONLY
(Lift Links Raise or Lower)................ Lever No. 3
Equipped with Auto Hitch AND Front Hitch
(Hook/Drawbar Extend/Retract) ....... Lever No. 1
(Lift Links Raise or Lower)................ Lever No. 3
DD99C276
2A. FOURTH REMOTE VALVE SWITCH
(If Equipped).
3. DIFFERENTIAL LOCK SWITCH -
See page 144.
4. MECHANICAL FRONT DRIVE (MFD)
(If Equipped) - See page 146.
NOTE: DO NOT use the MFD for light duty
work or when travelling on the highway. DO
NOT drive the tractor in high range third or
fourth gear with MFD engaged.
5. FRONT PTO SWITCH (If Equipped) -
See page 125.
6. WHEEL SLIP LIMIT CONTROL SWITCH -
See page 136.
1
2
2A
3
4
5
6
2A
WARNING: Tractors equipped with
Mechanical Front Drive (MFD) have
increased traction and can climb steeper
slopes. Stay off slopes too steep for safe
operation. To prevent rear overturns, reverse
up steeper slopes.
To Next Page
