Tyres, Wheels, Ballasting
184
REAR WHEEL BOLT TORQUES
IMPORTANT: Check torques after the first 30
minutes of operation and then every 10 hours of
operation until torques stabilize. This tightening
and checking procedure is necessary after
any wheel repositioning operation.
IMPORTANT: DO NOT lubricate the threads.
Flanged Axle
5100166

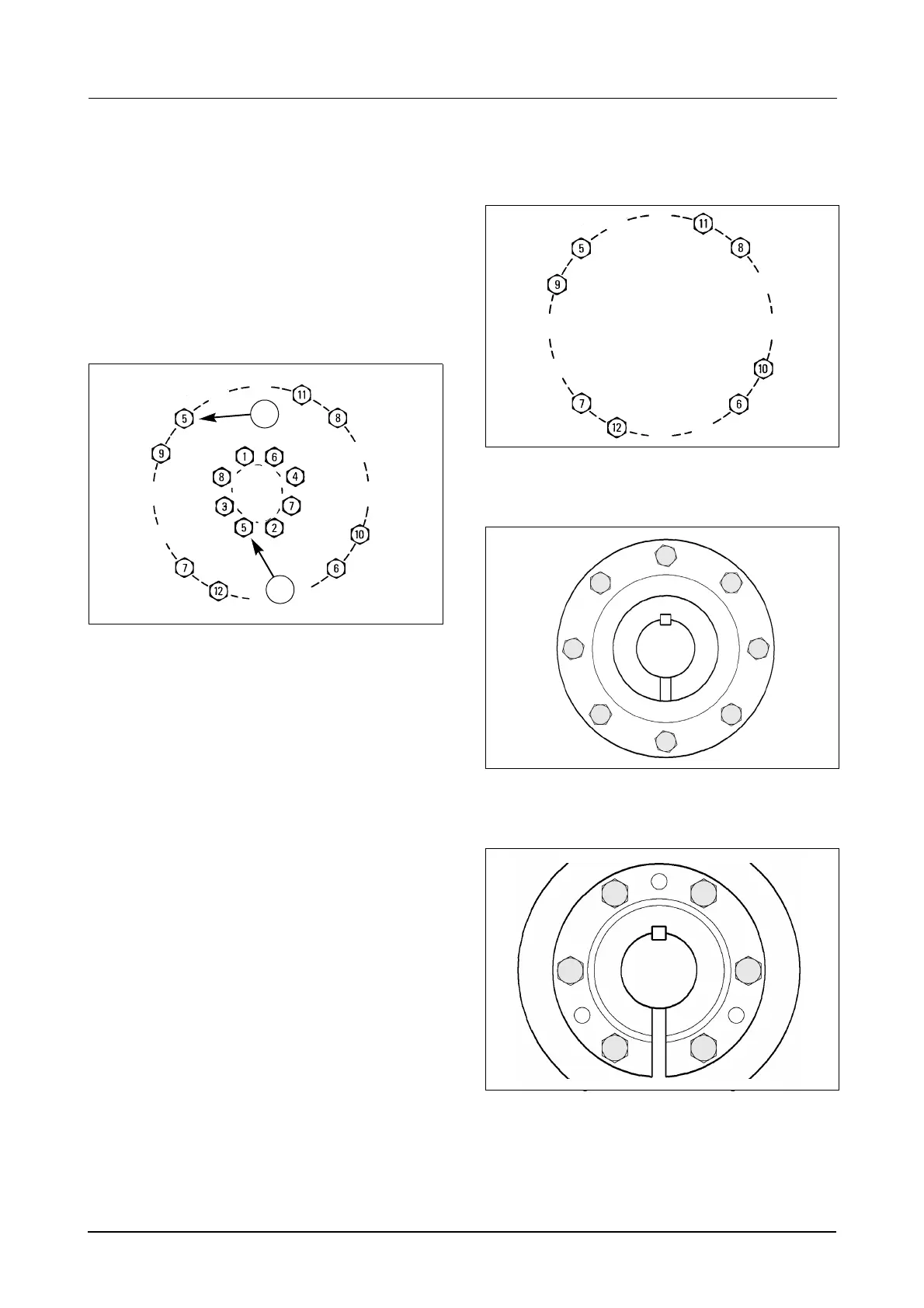

TIGHTENING SEQUENCES
1. Centre Disc To Rim Nuts -
Tighten the centre disc to rim nuts (1) to 280
to 340 Nm (206 to 250 lb ft) in the sequence
shown.
2. Centre Disc To Axle Flange Nuts -
Tighten the centre disc to axle flange nuts (2) to a
torque of 485 to 550 Nm (357 to 406 lb ft) in the
sequence shown.
Bar Axle
5100166
WHEEL DISC TO WHEEL RIM NUTS = 280 to
340 Nm (206 to 250 lb ft) in the sequence shown
DI96M106
WHEEL TO HUB BOLTS = to 485 to 550 Nm
(357 to 406 lb ft) in the sequence shown.
DI96M106
TAPERED BUSHING TO WHEEL HUB BOLTS =
244 to 298 Nm (180 to 220 lb ft), evenly in 50 Nm
intervals, in the sequence shown.
1
2
1
83
56
7
2
4
1
2
3
4
5
6
