Tyres, Wheels, Ballasting
170
SETTING THE FRONT WHEEL TOE-IN
STEP 1
Park the tractor on hard level ground, engage the
park brake and stop the engine.
STEP 2
Raise the front of the tractor so that both front
wheels are off the ground and the steering is free
to turn through the full range LEFT AND RIGHT.
STEP 3
Mark the inside front of the rims at the tyre/rim
interface and at the same height as the centre of
the hub.
STEP 4
Measure the distance between the rim edges at
the front (dimension A in the diagram).
STEP 5
Rotate each wheel 180 degrees so that the
marks are at the rear, at the same height as the
centre of the hub.
STEP 6
Measure the distance between the marks at the
rear (dimension B in the diagram).
STEP 7
Subtract the front dimension (A) from the rear
dimension (B), this is the toe -in measurement.
Adjustment
2WD.......................................................... +/- 2 mm
MFD .......................................................... +/- 3 mm
INDEPENDENT
FRONT
SUSPENSION .........+/- 3 mm (At Mid Position)
● Adjust the length of each tie rod, by the same
amount, as required.
● Make sure the tyres do not contact the
steering cylinder when on full lock.

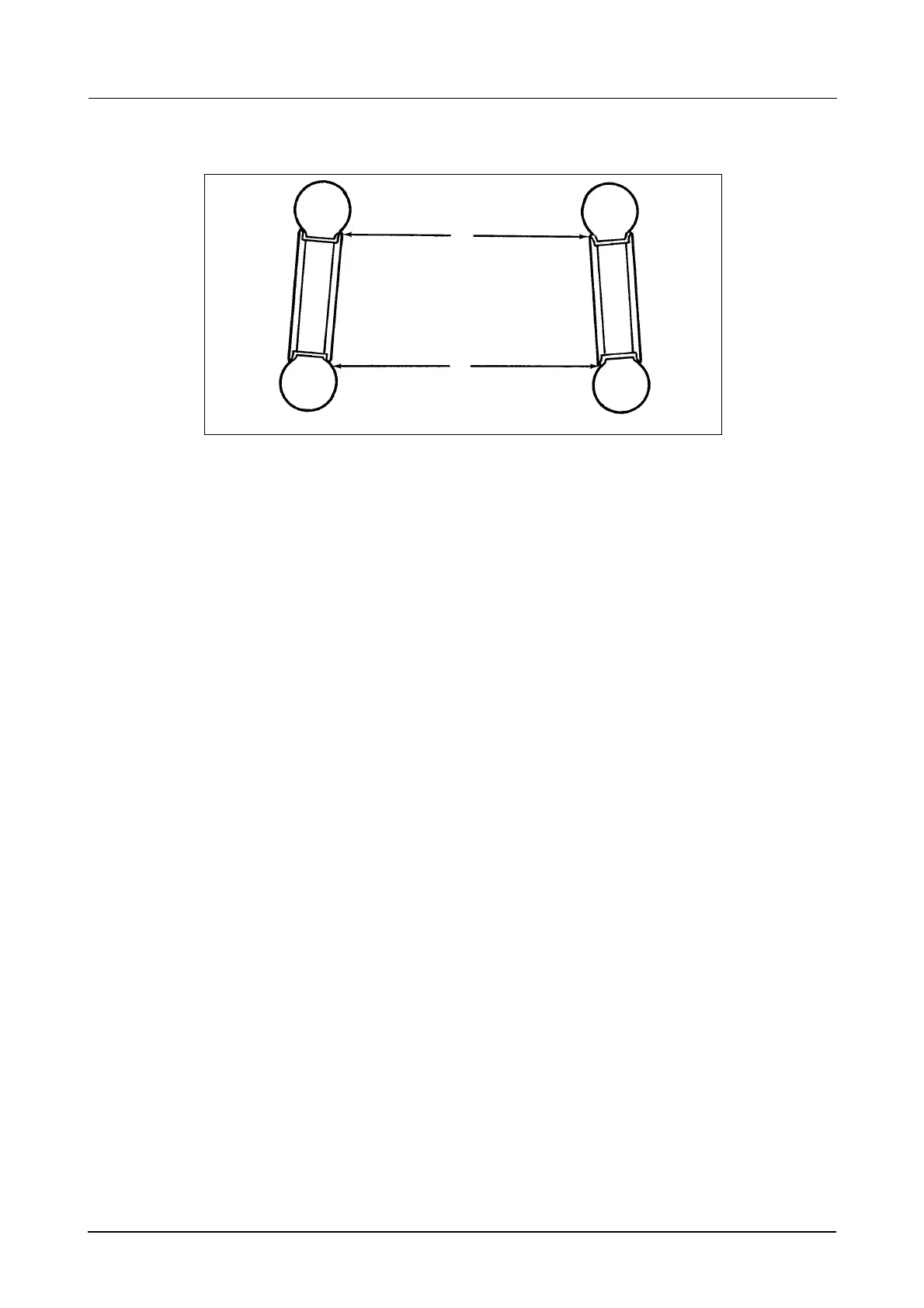

FRONT
REAR
A
B
343L9R
