MCCORMICK MTX Series - Transmission Controls

Operating Controls
38

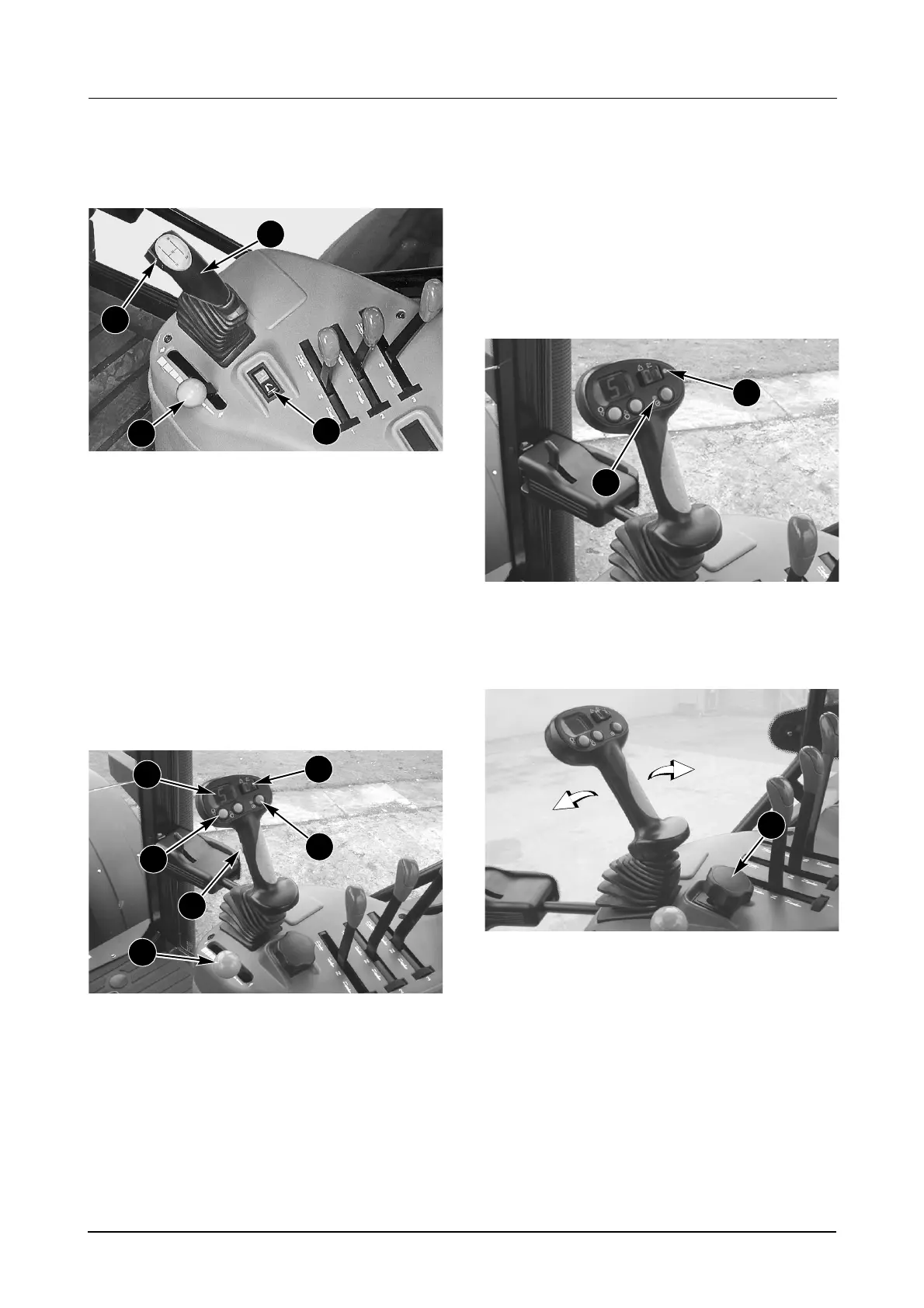

TRANSMISSION CONTROLS
Powershift Transmission
DR99G169
1. THROTTLE LEVER - To increase or decrease
the engine speed.
2. POWER SHIFT SWITCH
3. RANGE LEVER
See page 90 for complete instructions.
4. HITCH UP/DOWN SWITCH - See page 133.
IMPORTANT: When the position control knob is in the
transport position (locked) the UP/DOWN switch will
not function.
Auto Speed Transmission
MD05M023A
1. THROTTLE LEVER - To increase or decrease
the engine speed.
2. RANGE SKIP SWITCH
3. GEAR SELECTION UP/DOWN SWITCHES
4. GEAR SELECTION DISPLAY
5. SOFT SHIFT SELECTOR SWITCH
See page 92 for complete instructions.
6. HITCH UP/DOWN SWITCH - See page 133.
IMPORTANT: When the position control knob is in the
transport position (locked) the UP/DOWN switch will
not function.
7. FUNCTION INDICATOR LAMPS
MD05M023B
A. REAR HITCH ENABLED.
B. SOFT SHIFT ACTIVATED.
8. ADJUSTMENT LOCKING KNOB
MP01F075
To adjust the position of the multi control lever
loosen the locking knob (8). Move the lever fore
or aft as required and then tighten locking knob.
1
3
2
4
1
2
5
6
3
4
7A
7B
8
