MCCORMICK MTX Series - Page 45

Operating Controls
37
3

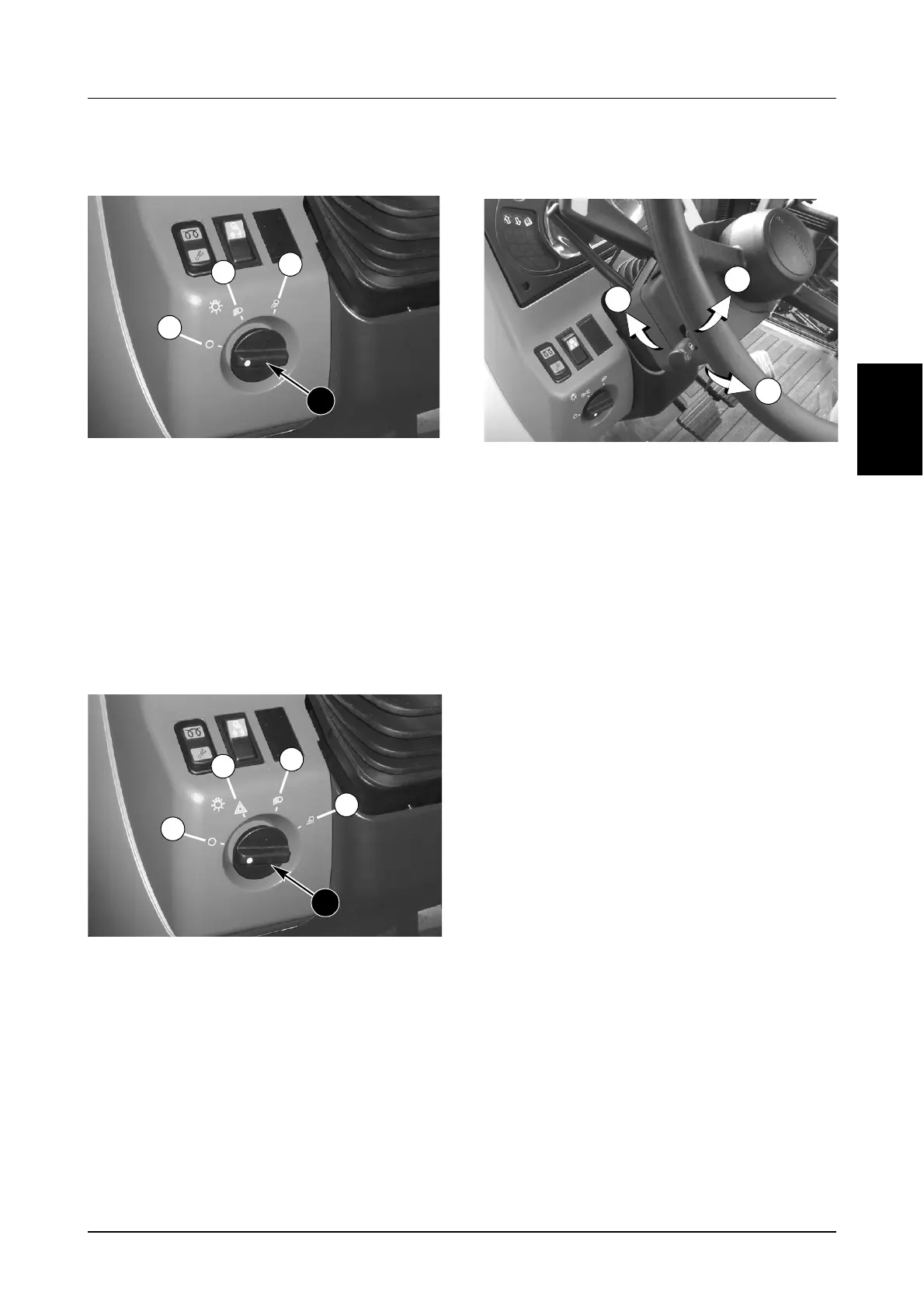

8. HEAD LAMP SWITCH -
Three Position Switch
MH04M076
A. First Position - All lamps OFF.
B. Second Position - Front position lamps, tail
lamps, license plate lamps and the side console
illumination lamp will illuminate. Also analog
cluster illumination lamps will be ON.
C. Third Position - Front side lamps, tail
lamps, license plate lamps, the side console
illumination lamp and main head lamps will
illuminate.
Four Position Switch
MH04M074
A. First Position - All lamps OFF.
B. Second Position - ALL the amber warning
lamps will flash ON and OFF. (Road -
Daytime).
C. Third Position - ALL the amber warning
lamps will flash ON and OFF. Tail lamps and
headlamps will be illuminated. (Road - Night).
D. Fourth Position - The side console
illumination lamp and main head lamps will
illuminate. Work lamp switch is enabled (Field).
Direction Turn Signal, Hi/Low
Beam Switch and Horn
MH04M075
TURN SIGNAL:
Position 1. = Right turn signal on.
Position 2.= Left turn signal on.
NOTE: Self cancelling switch only: The turn signal
lamps will continue to flash until the steering wheel
is turned in the opposite direction. You can override
this function to cancel the indicator by moving the
switch in the opposite direction chosen.
HEADLAMP HI/LOW BEAM:
Position 3.= With headlamp switch in Third or
Fourth position, lifting the switch
towards the steering wheel, then
releasing, will select high beam,
(Blue indicator lamp on instrument
cluster will illuminated). Lifting the
switch again will select low beam,
(Blue indicator lamp will go off).
With headlamp switch in First or
Second position, lifting the switch
towards the steering wheel and
releasing will flash the headlamps.
HORN:
Press the end of the switch to operate.
8
C
B
A
8
C
B
A
D
2
1
3
