Operation
152

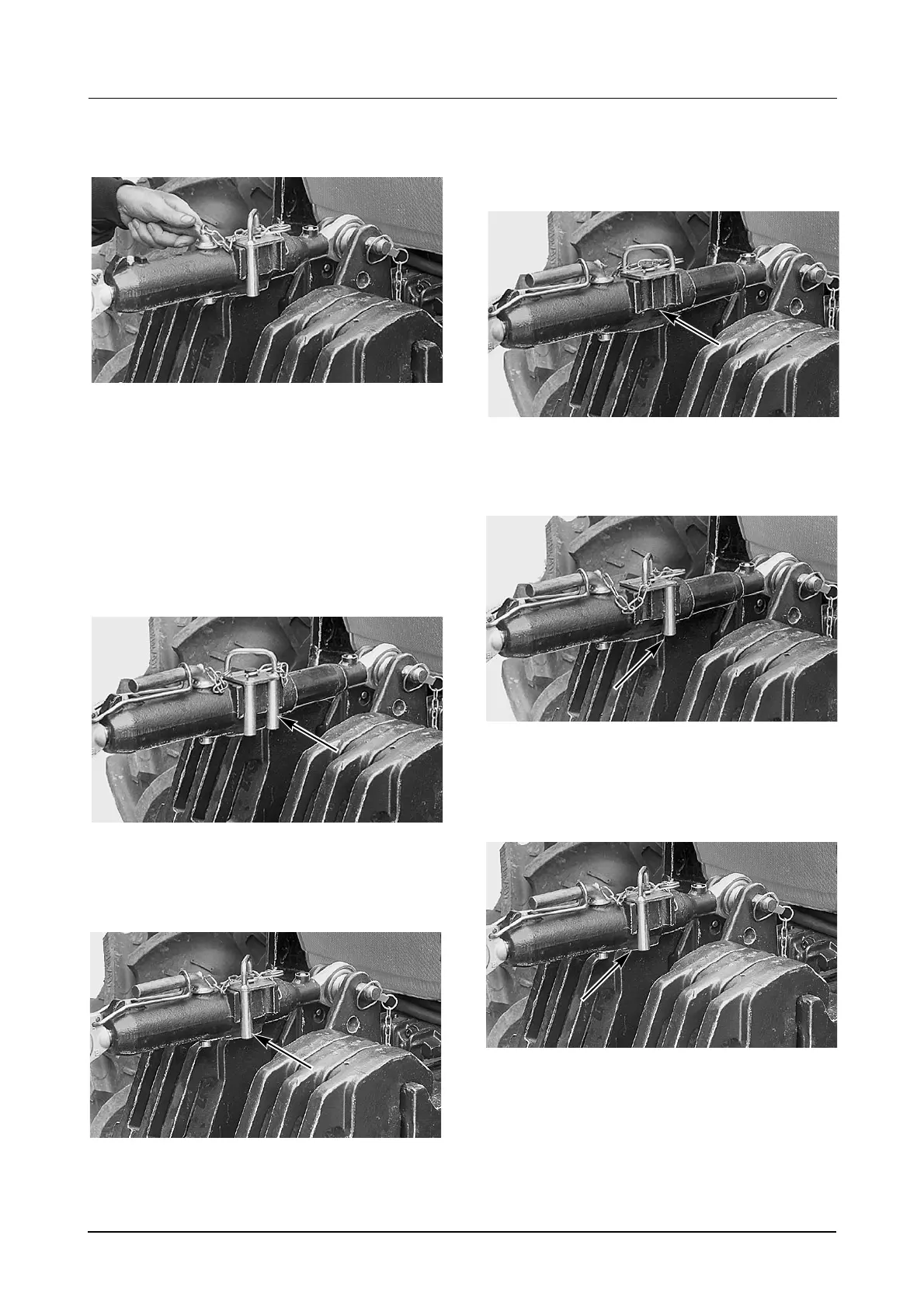

Top Link Adjustments
DP96J342
For fine adjustment of length, lift the lock, use the
stop pin to turn the link to adjust the length.
When correct, align the pin with the link and
lower the lock.
There are 5 positions for the locking pin
assembly, 2 for float operation and 3 for rigid
operation.
Float Operation
DP96J343
With the locking pin assembly inserted with two
pins showing, (no pins through the inner slot or
hole), the link is set for MAXIMUM FLOAT.
DP96J341
With the locking pin assembly inserted with one
pin showing at the front, (one pin through inner
slot), the link is set for MINIMUM FLOAT.
Rigid Operation
DP96J344
With the locking pin assembly inserted with no
pins showing, (both pins through inner slot, the
link is set for LONG RIGID operations.
DP96J345
With the locking pin assembly inserted with one
pin showing to the rear, (one pin through inner
rear hole), the link is set for MEDIUM RIGID
operations.
DP96J341
With the locking pin assembly inserted with one
pin showing to the front (as for minimum float)
but with the inner pin through the inner rear hole
and the second outer hole, the link is set for
SHORT RIGID operations.
