Operation
151
5

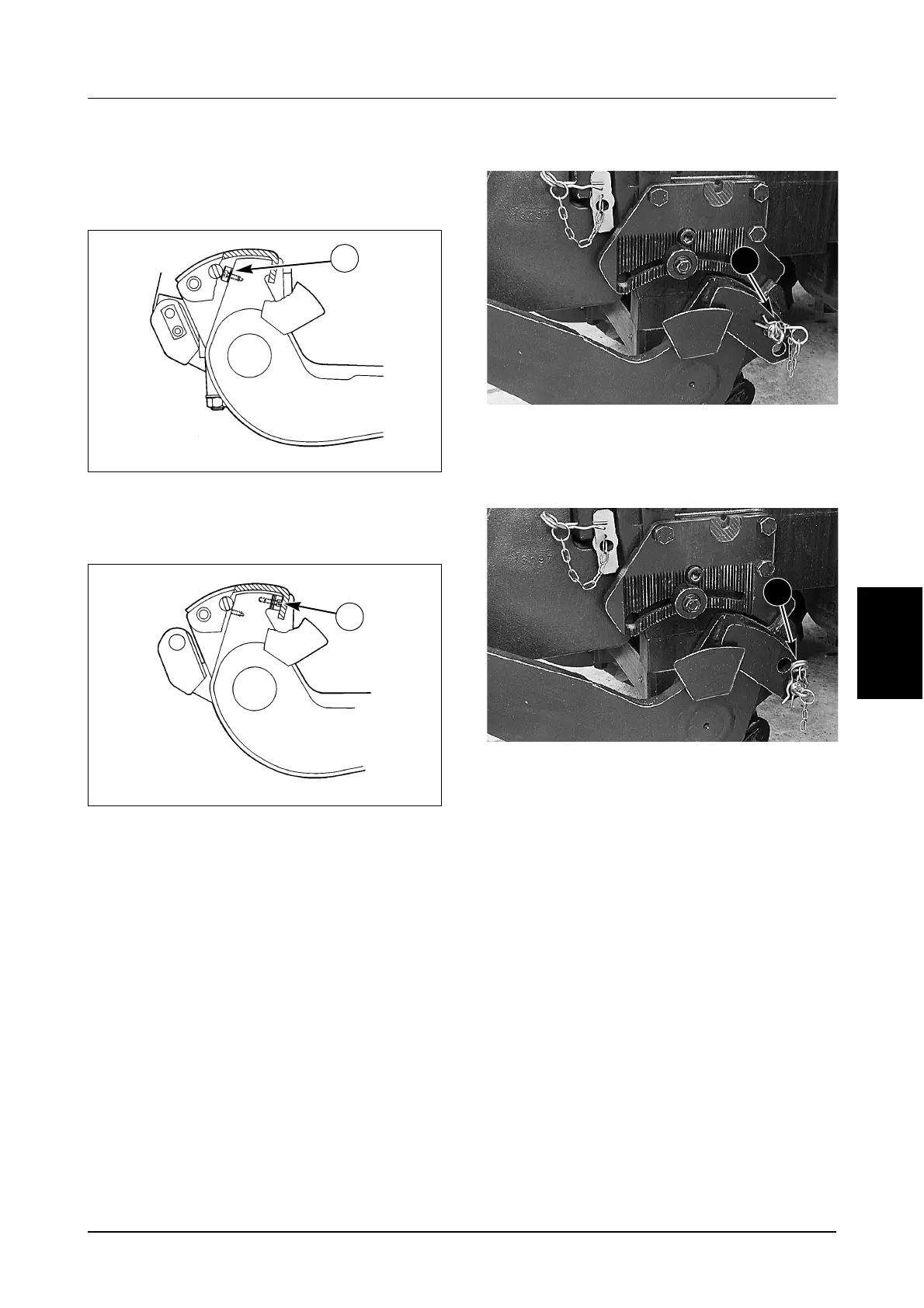

Adjustment for Different Tyre Sizes
Install the bolt, spacer and washer to the lower
links in position 1 or 2.
WP096A
Install the bolt in position (1) for front tyre sizes
13.6-24 or larger.
WP096B
Install the bolt in position (2) for front tyre sizes
12.4-24 or smaller.
Mechanical Float
DP98E109
RIGID POSITION
For operation with no vertical movement, install
the pin in the front hole (1).
DP98E108
FLOAT POSITION
For operation with vertical float, install the pin in
the rear hole (2).
1
2
1
2
To Next Page
