Tyres, Wheels, Ballasting
176

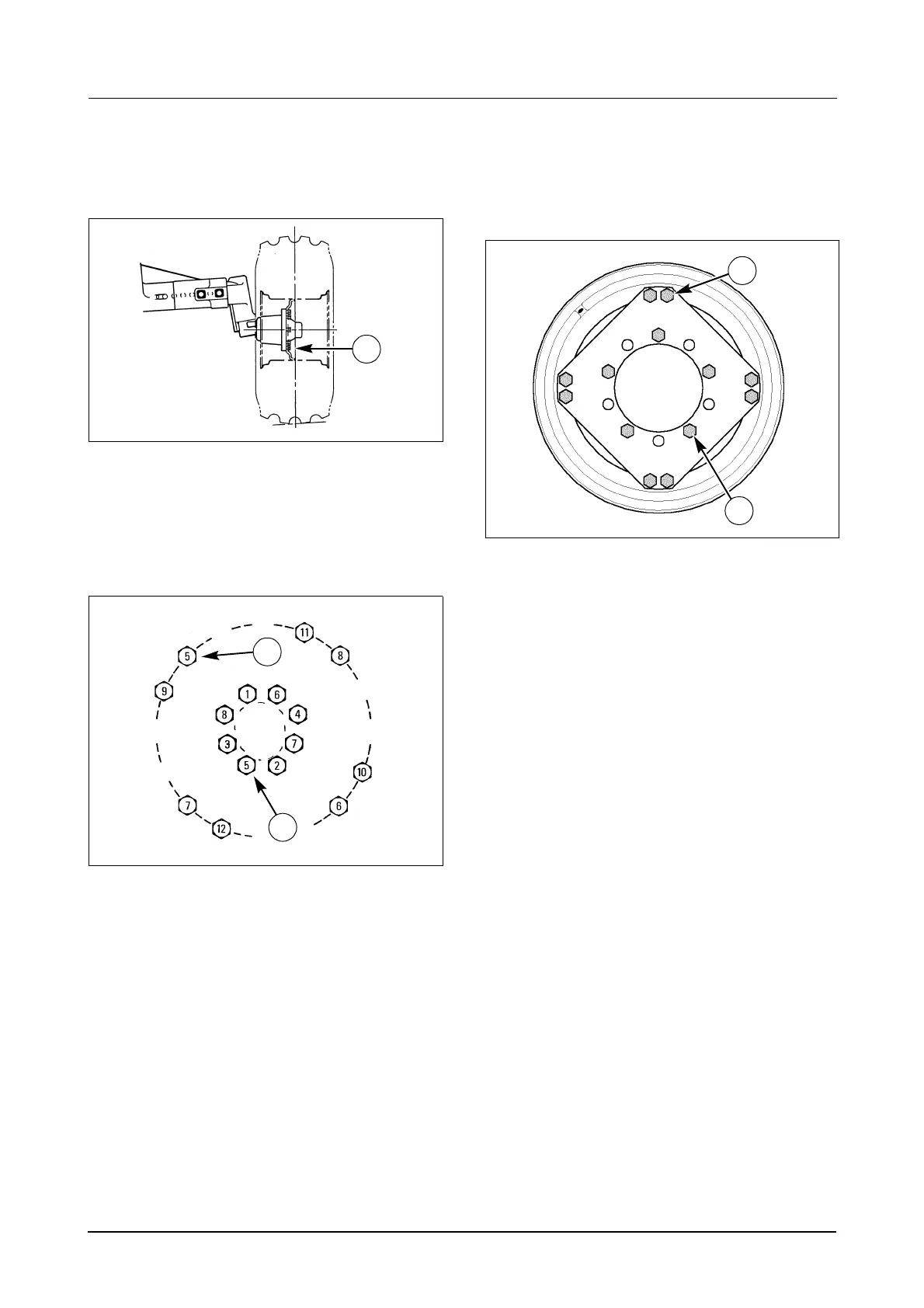

FRONT WHEEL BOLT TORQUES
Two Wheel Drive (2WD)
342L9
Tighten the wheel to hub mounting bolts (1) to a
torque of 190 to 217 Nm (140 to 160 lb ft).
MFD - Eight Stud Wheel Hub
Arrangement
5100166
Tighten the center disc to rim nuts (1) to a torque
of 280 to 310 Nm (206 to 229 ft lb) in the
numbered sequence shown. The center disc
must fit flush against the rim lugs when
assembled.
Tighten the center disc to axle hub nuts (2) to a
torque of 300 to 350 Nm (221 to 258 ft lb) for
NEW nuts and 400 to 450 Nm (295 to 332 ft lb)
for USED nuts in the numbered sequence shown.
MFD - Five Stud Wheel Hub
Arrangement
DI99B172
Tighten the center disc to rim nuts (1) to a torque
of 280 to 310 Nm (206 to 229 ft lb) in the
numbered sequence shown. The center disc
must fit flush against the rim lugs when
assembled.
Tighten the wheel center disc to axle hub nuts (2)
in the numbered sequence shown, to a torque of
530 to 570 Nm (391 to 420 ft lb).
1
1
2
1
1
2
3
7
4
5
6
8
1
4
25
3
2
