Operating Controls
30
OPERATORS SEAT
Sears Mechanical Suspension Seat
WARNING: Do not adjust the seat while driving. Loss of control and injury
can result.
2
3
MI03A034B
MI03A021A
MI03A020A
4
MI03A021C
5
MI03A021D
1
MI03A029A

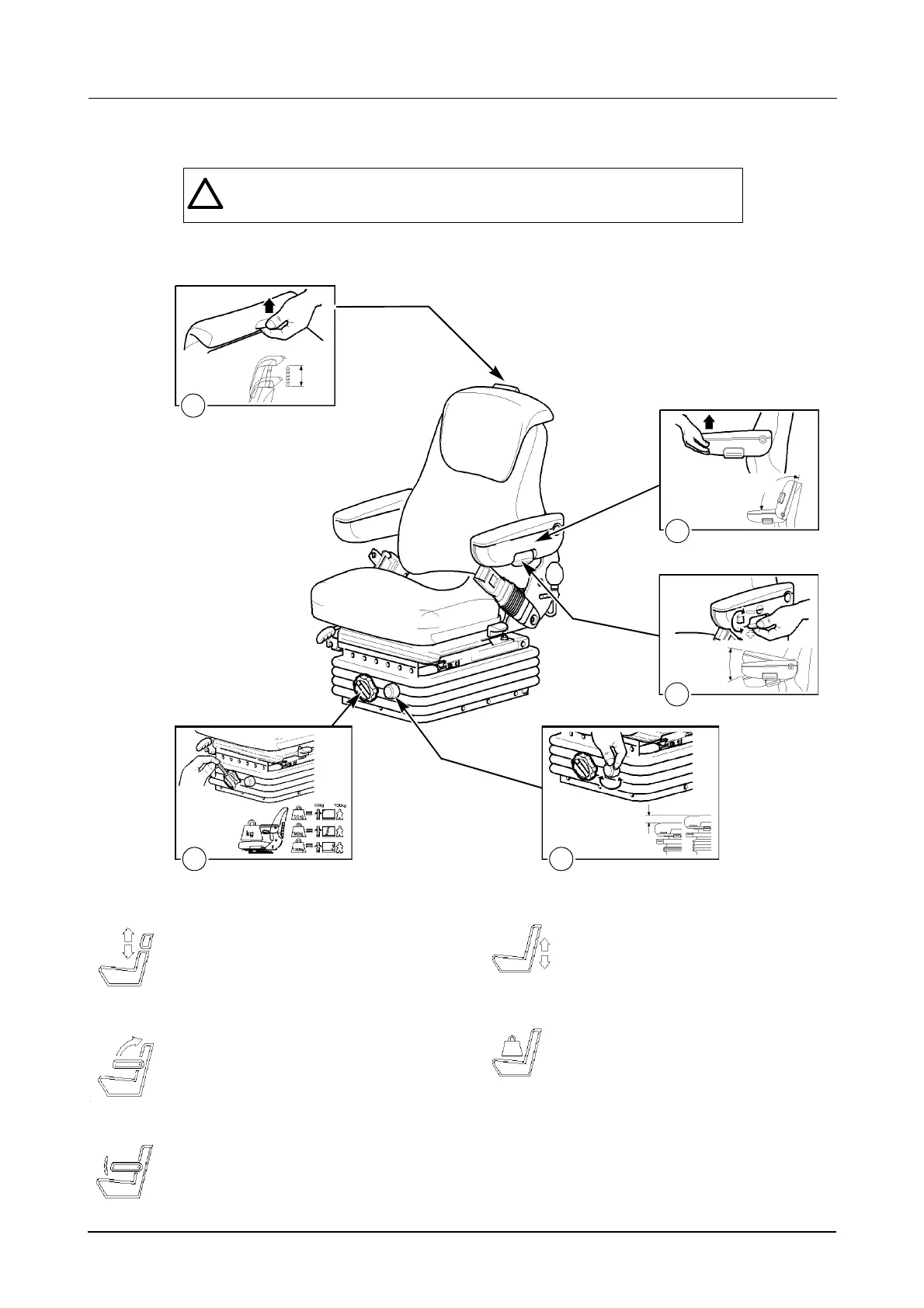

1a.HEAD RESTRAINT HEIGHT
ADJUSTMENT OR REMOVAL -
Lift and pull up or push down to
required height. Pull up past end stop
to remove.
2. ARM RESTS -
Lift up or down.
3. ARM RESTS (FINE ADJUSTMENT) -
Rotate the wheel to adjust the arm
rest for fine adjustment to suit
operator comfort.
4. HEIGHT ADJUSTMENT CONTROL -
Rotate the knob to raise/lower the
seat as required.
5. WEIGHT ADJUSTMENT CONTROL -
With the seat empty turn the knob as
required until the operators weight is
shown on the weight indicator.
