MCCORMICK MTX Series - Operator Cab Environment Controls

Operating Controls
43
3

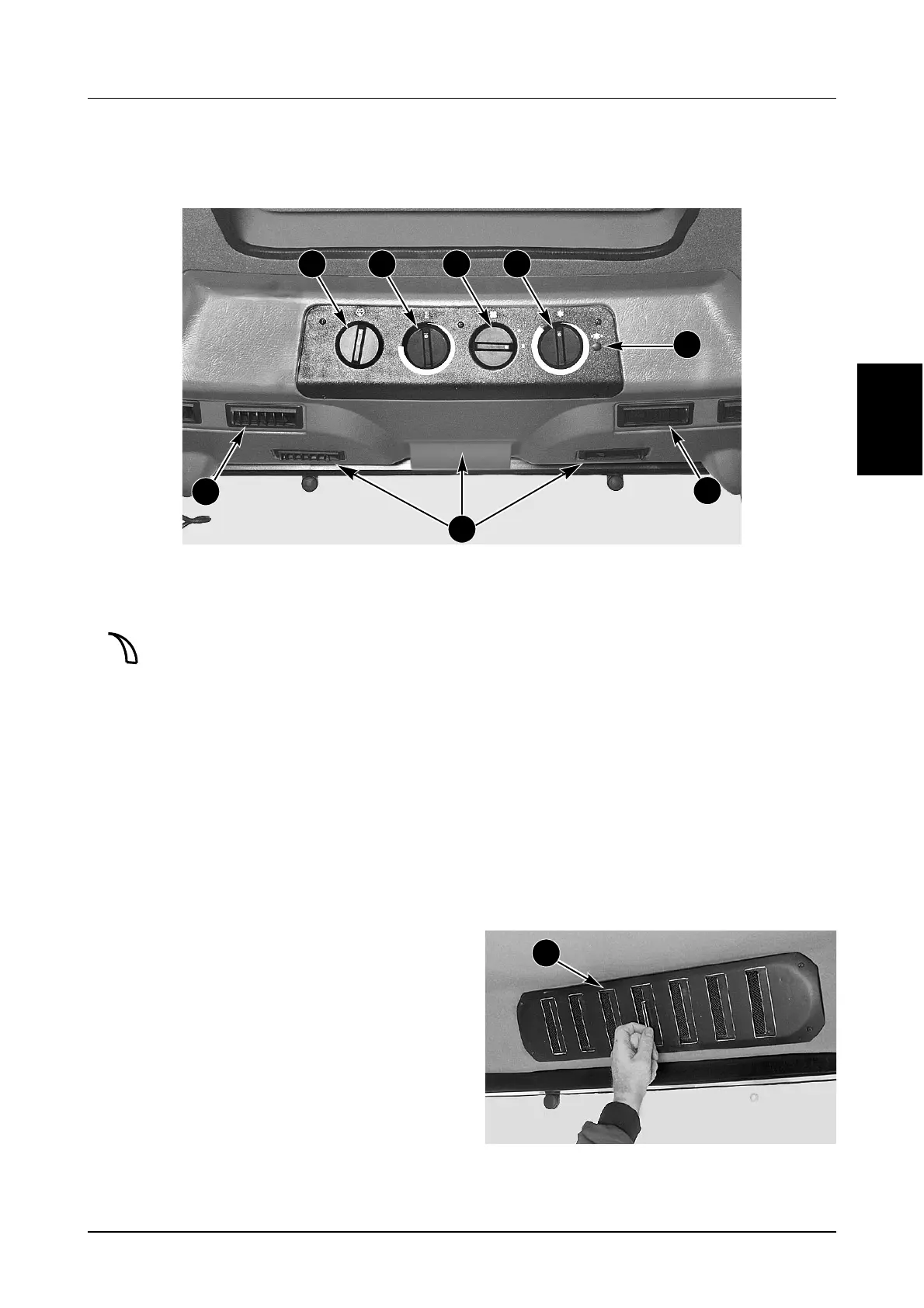

OPERATOR CAB ENVIRONMENT CONTROLS
Standard Temperature Control System
DD95M222
1. WINDSHIELD WIPER/WASHER CONTROL -
Three Positions:
NOTE: On tractors equipped with the
opening windshield there is only one
speed.
Push the control knob to activate windshield
washer (If Equipped).
2. TEMPERATURE CONTROL - Turn the control
clockwise to raise the in-cab temperature. To
lower the in-cab temperature turn the control
counterclockwise.
NOTE: Under certain conditions the heater fan can
run at maximum speed when the control is in the
2nd, 1st or OFF position. This is a safety feature
designed to prevent overheating of resistors in the
circuit.
3. BLOWER CONTROL - Turn the control
clockwise. Keep turning the control clockwise
to increase the blower speed.
4. AIR CONDITIONER CONTROL (If Equipped) -
Blower must be operating, see page 44 for
more information.
5. AIR CONDITIONER PRESSURE INDICATOR
LAMP - See page 44 for more information.
6. A. DEFROSTER LOUVERS -
B. AIR DISCHARGE LOUVERS -
To open or close the louvers and control air flow
direction move the louvers from side to side as
required. The units can also be adjusted front to
rear for added air flow control.
7. RECIRCULATION VENT - Slide the louver to
regulate amount of fresh air intake/
recirculation of air within the cab.
DP96J356
1
5
6B
6B
2 3 4
6A
I
II
Intermittent, clockwise to increase o
r
counterclockwise to decrease wipes pe
r
minute.
Slow.
Fast.
7
