OPERATING CONTROLS

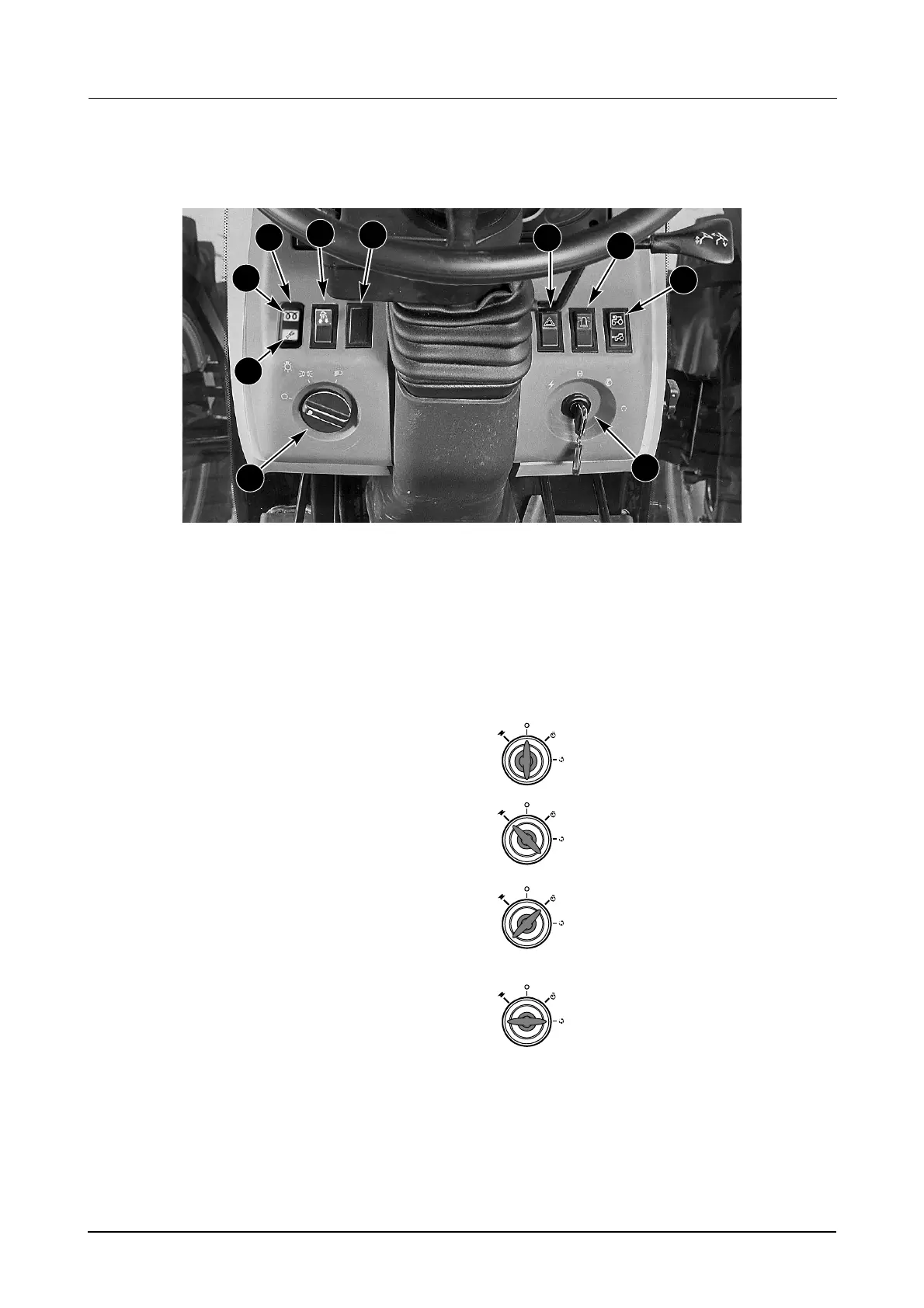

Instrument Panel
MH04M073
1A.COLD START (WAIT TO START) LAMP
If this lamp illuminates you MUST wait until
the lamp goes off before trying to start the
engine.
NOTE: The lamp may illuminate after start-up to
indicate that the cold start ’heater’ is still
activated.
1B.ENGINE SERVICE LAMP
When this lamp illuninates water has been
detected in the fuel. Drain fuel filter.
2. WORK LIGHTS - Three position rocker
switch. The lights will operate as follows:
First Position - OFF.
Second Position - The lower front and rear
work lights are ON. The worklight indicator lamp
on the instrument cluster will illuminate.
Third Position - The lower and upper, front and
rear, work lights are ON. The lamp in the rocker
switch will be illuminated to indicate the upper
worklights are now ON. (The instrument cluster
indicator lamp continues to illuminate to confirm
the lower worklights are ON).
3. REAR FOG LIGHT (If Equipped)
4. HAZARD WARNING SIGNAL SWITCH
5. ROTATING BEACON SWITCH (If Equipped)
6. UPPER HEAD LAMPS SWITCH (If Equipped
with Front Hitch) - With head lamp switch in
third position press the front of the switch
down, upper head lamps will illuminate and
main head lamps will go off.
7. KEY SWITCH - The key switch has four
positions as follows:
3
2
4
5
6
7
8
1
A
B
Start Position - Turn the key fully
clockwise against spring pressure wi
energise the starter motor in addition to the
circuits already mentioned above
On/Run Position - All bar graphs, digita
displays, warning and indicator lamps wi
be turned on for approximately 3.5
seconds. This position is also used fo
dynamic calibration of rear tyre size and
true ground speed sensor, if equipped.
Accessory Position - The radio can be
operated in this position and some of the
cluster displays, also used for programming
the digital instrument cluster.
Off Position - Turn from On/Run position
counter clockwise to stop the tractor. The
key can only be removed from this position
