MCCORMICK MTX Series - Rear Wheel Tread Adjustment

Tyres, Wheels, Ballasting
179
6

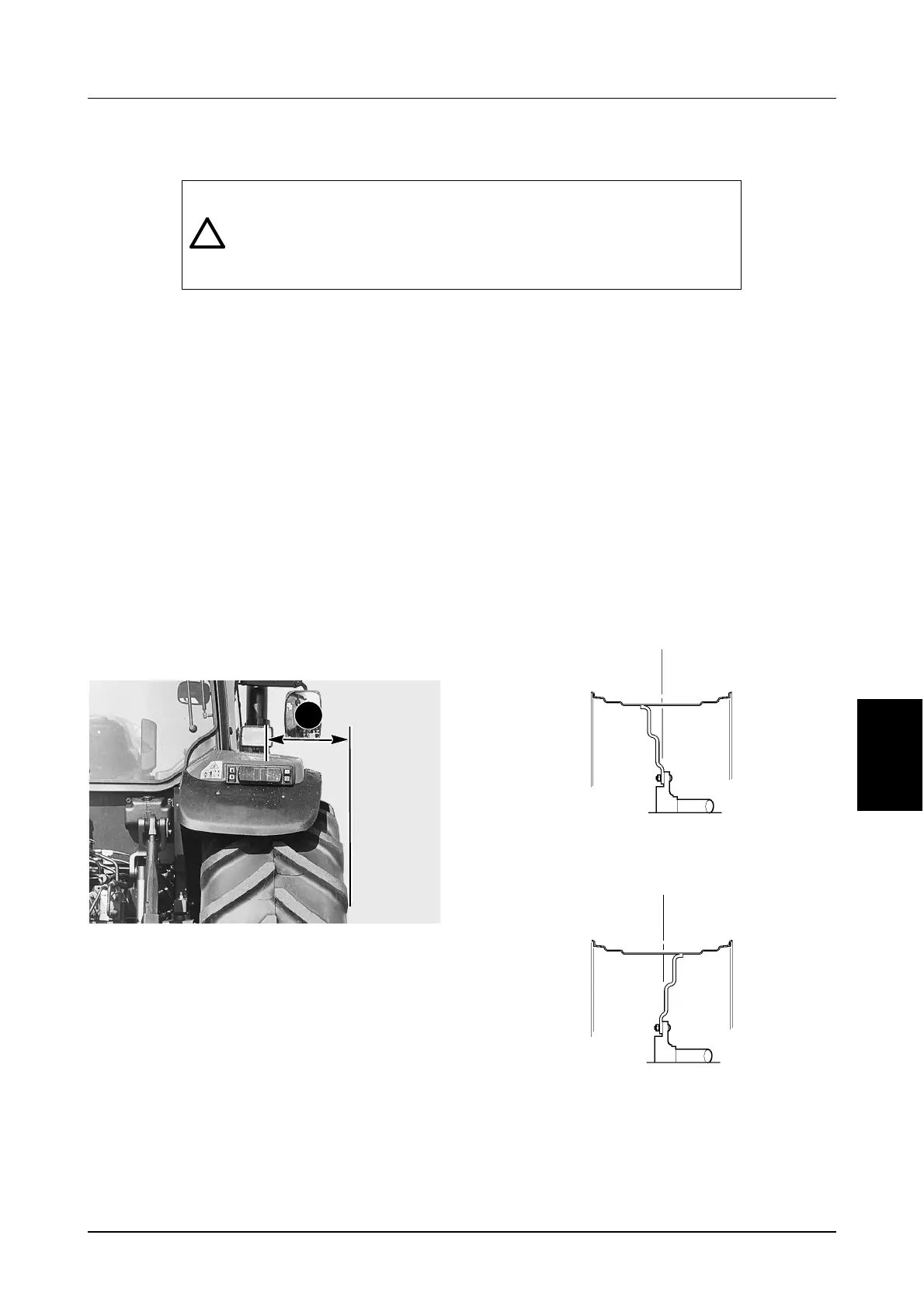

REAR WHEEL TREAD ADJUSTMENT
IMPORTANT: Before making any adjustment make sure that the tractor is correctly supported. Apply the park
brake and put blocks in front of and behind both front wheels and the other rear wheel. Check torques after the
first 30 minutes of operation and then every 10 hours of operation until torques stabilize. This tightening and
checking procedure is necessary after any wheel repositioning operation, see “REAR WHEEL BOLT
TORQUES” on page 184 for correct torques and tightening sequence.
Important information for EEC
Member States:
This tractor is manufactured with rear lamps which
meet all necessary lighting regulations for correct
operation/travelling on the public highway.
The legal requirement states when using public
highways the distance from the extreme outer edge
of the tractor and that of the rear stop lamp lens
should not exceed 400mm (16in) - Diemsion A.
DP00H120
If the tread width is adjusted beyond the initial
factory setting then it may be necessary to either
reposition the rear lights or install auxilliary lighting
to comply with legal requirements.
Also, overall widths above 3000 mm (118 in) WILL
require local authorization for use on the highway.
An overall width of 2550 mm to 3000 mm (8 to 10
feet) MAY require local authorization for use on the
highway, check before operation.
Flanged Type Axle Tread Widths
When adjusting to the minimum tread position, make
sure that there is a clearance of at least 50 mm (2 in)
between the tyres and components of the rear fenders.
One Piece Wheels
One piece wheels are not adjustable and can
only be interchangeable between each side of
the axle.
MH04E021
1830 mm (72 in)
RIM IN
MH04E022
1930 mm (76 in)
RIM OUT
WARNING: When servicing or making adjustments to the tractor with
one set of wheels supported on a stand, NEVER attempt to rotate the
wheel either by hand or by starting the engine. This could propel the
tractor of the stands. Either support all wheels off the ground or
disconnect the front axle drive shaft.
!
A
