Tyres, Wheels, Ballasting
180
Two Piece Wheels
Two piece wheels are disc wheels with removable
rims. The illustrations on the following pages show
the rim and disc positions for the various tread
widths. When the rims are reversed to change the
tread width, install the right hand tyre and rim on the
left disc and the left tyre and rim on the right disc to
make sure that the tread pattern is in the correct
direction for maximum traction as shown by the
arrow on the tyre.
Use the chart below as a guide to establish the
minimum tread width possible for the tyres
fitted to your tractor.

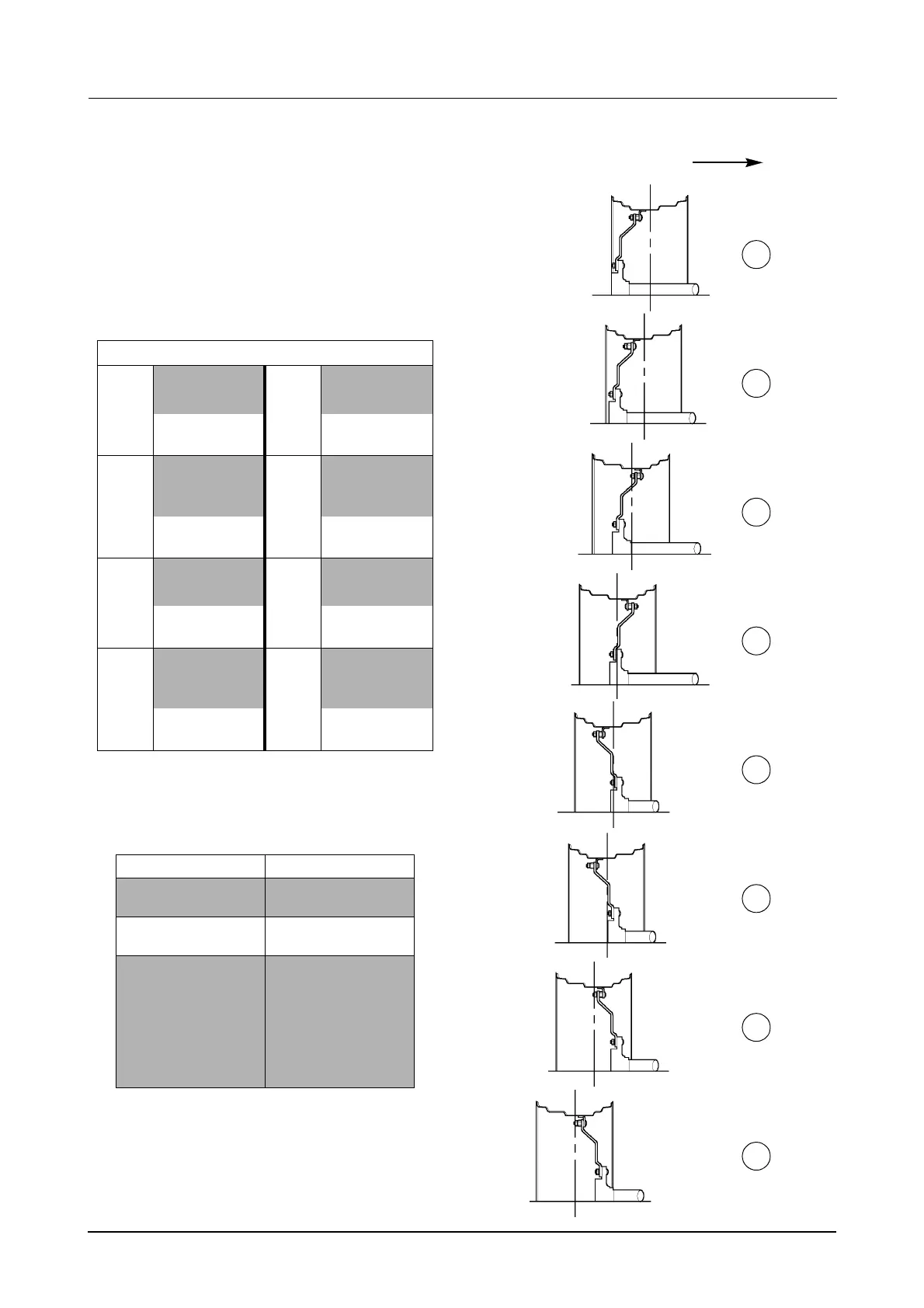

TREAD WIDTHS
A
RIM IN
DISC IN
SPACER IN USE
E
RIM IN
DISC OUT
SPACER IN USE
1530 mm
(60 in)
1930 mm
(76 in)
B
RIM IN
DISC IN
SPACER NOT IN
USE
F
RIM IN
DISC OUT
SPACER NOT IN
USE
1630 mm
(64 in)
2030 mm
(80 in)
C
RIM OUT
DISC IN
SPACER IN USE
G
RIM OUT
DISC OUT
SPACER IN USE
1730 mm
(68 in)
2130 mm
(84 in)
D
RIM OUT
DISC IN
SPACER IN USE
H
RIM OUT
DISC OUT
SPACER NOT IN
USE
1830 mm
(72 in)
2230 mm
(88 in)
TREAD WIDTH TYRE SIZE(S)
1530 mm
(60 in)
14.9R46
1630 mm
(64 in)
18.4R38
18.4R42
1730 mm
(68 in)
20.8R38
650/65R38
520/70R38
580/70R38
620/70R38
20.8R42
650/65R42
620/70R42
A
B
C
D
CENTRE OF TRACTOR
E
F
G
H
