Tyres, Wheels, Ballasting
175
6
Two Piece Wheels
Two piece wheels are disc wheels with removable
rims. The tread width (measured between tyre
centres at ground level) can be adjusted by turning
the wheel discs and/or the wheel rims in or out. The
wheel disc can also be installed on either side of
the mounting lugs on the rim.

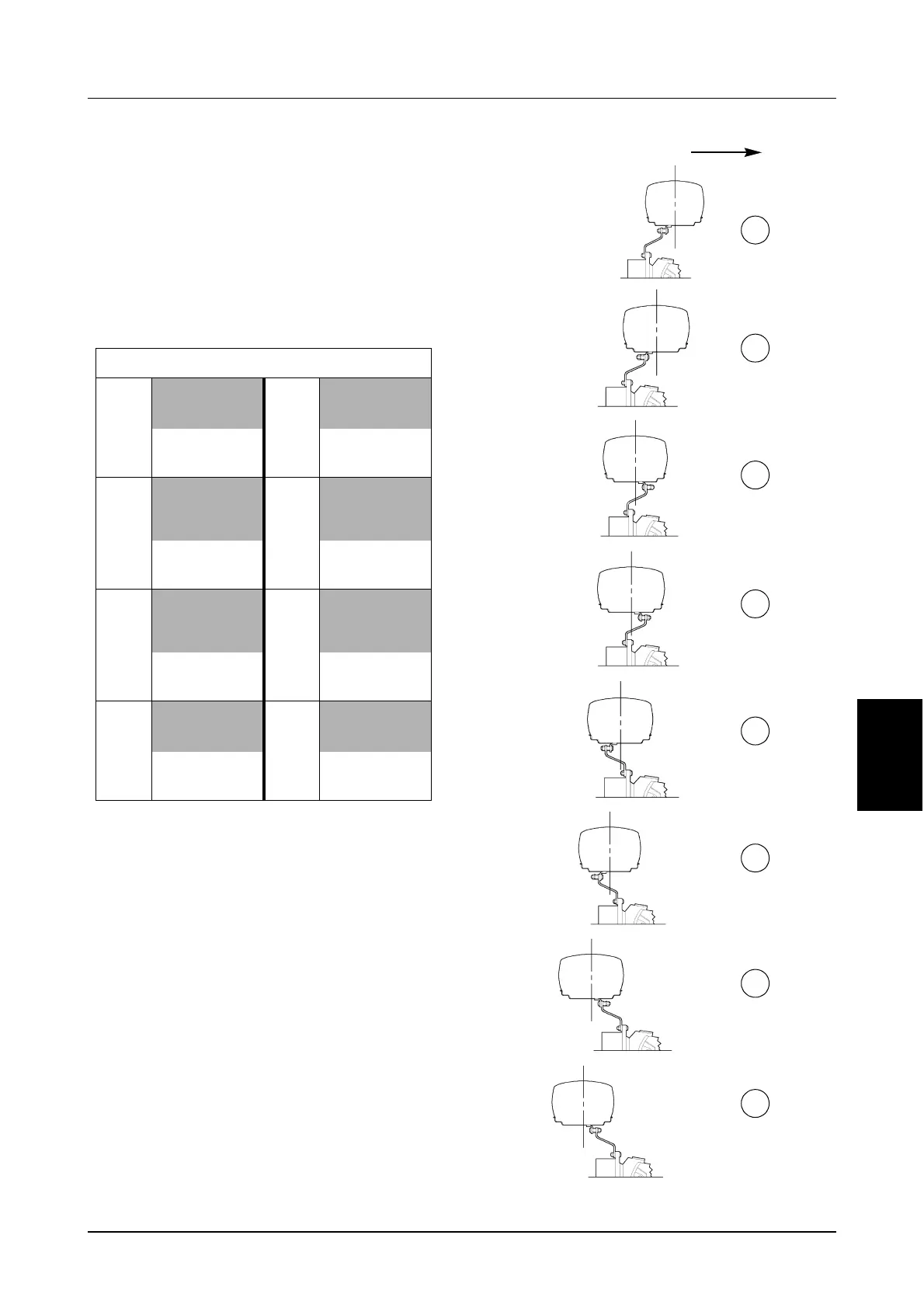

The illustrations show the wheel disc and rim
positions for upto eight different tread positions.
*
The 1530 mm (60 in) tread position is not possible
with front fenders installed.
** The 2230 mm (88 in) tread position is not possible
with front fenders installed.
TREAD WIDTHS
A
RIM IN
DISC IN
SPACER IN USE
E
RIM IN
DISC OUT
SPACER IN USE
* 1530 mm
(60 in)
1930 mm
(76 in)
B
RIM IN
DISC IN
SPACER NOT IN
USE
F
RIM IN
DISC OUT
SPACER NOT IN
USE
1630 mm
(64 in)
2030 mm
(80 in)
C
RIM OUT
DISC IN
SPACER NOT IN
USE
G
RIM OUT
DISC OUT
SPACER NOT IN
USE
1730 mm
(68 in)
2130 mm
(84 in)
D
RIM OUT
DISC IN
SPACER IN USE
H
RIM OUT
DISC OUT
SPACER IN USE
1830 mm
(72 in)
** 2230 mm
(88 in)
A
B
C
D
CENTRE OF TRACTOR
E
F
G
H
