Operating Controls
39
3

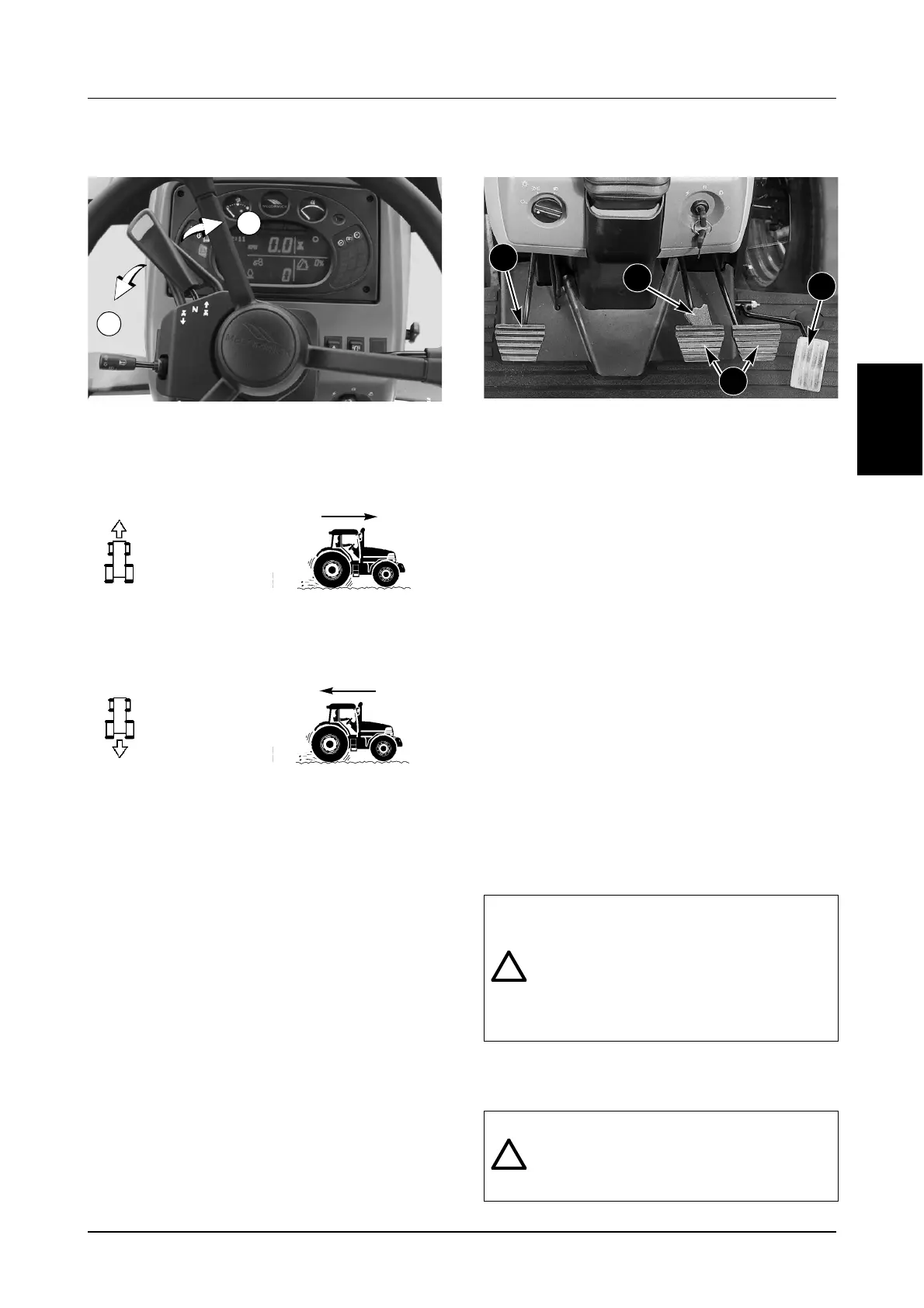

Forward/Neutral/Reverse Lever
MD04C022
Use the Forward/Reverse shuttle lever to change
direction of travel.
The shuttle lever has 3 positions:
NOTE: For your safety a Neutral Start Switch
is fitted in the Forward/Reverse Shuttle
circuits which prevents unintentional tractor
movement when starting the tractor engine.
The engine should only start when the lever is
in the NEUTRAL position.
Pedal Controls
DP98E011
1. CLUTCH PEDAL - Used to temporarily
disengage drive. Use the clutch pedal when
moving the tractor short distances or when
operating in confined areas. Use the clutch
pedal to start the tractor moving from stationary.
Gradually and completely releasing the clutch
pedal for a controlled smooth start.
NOTE: DO NOT ride the clutch pedal when the
transmission is under load. Release the clutch
pedal completely within 5 seconds for improved
clutch service life.
While the tractor is moving the transmission must
always be in drive. Never allow the tractor to coast
down hill with the transmission in neutral or with the
clutch pedal depressed. To do so could result in the
operator not having full control of the tractor and
may result in personal injury.
2. THROTTLE PEDAL
3. BRAKE PEDALS - The left brake pedal stops
the left rear wheel and the right brake pedal
stops the right rear wheel.
4. BRAKE PEDALS INTERLOCK - Used to lock
the brake pedals together.
FORWARD
NEUTRAL
REVSERSE
2
1
N
WARNING: Extra weight and bad traction
conditions such as mud or ice increase
your stopping distance. Remember that
liquid in the tyres, weights on the tractor or
wheels, towed implements or trailers all
add weight and increase the distance you
need in which to stop.
WARNING: Brake pedals must be locked
together for road travel. This will ensure
uniform brake operation and maximum
stopping ability.
1
2
4
3
