Operation
156

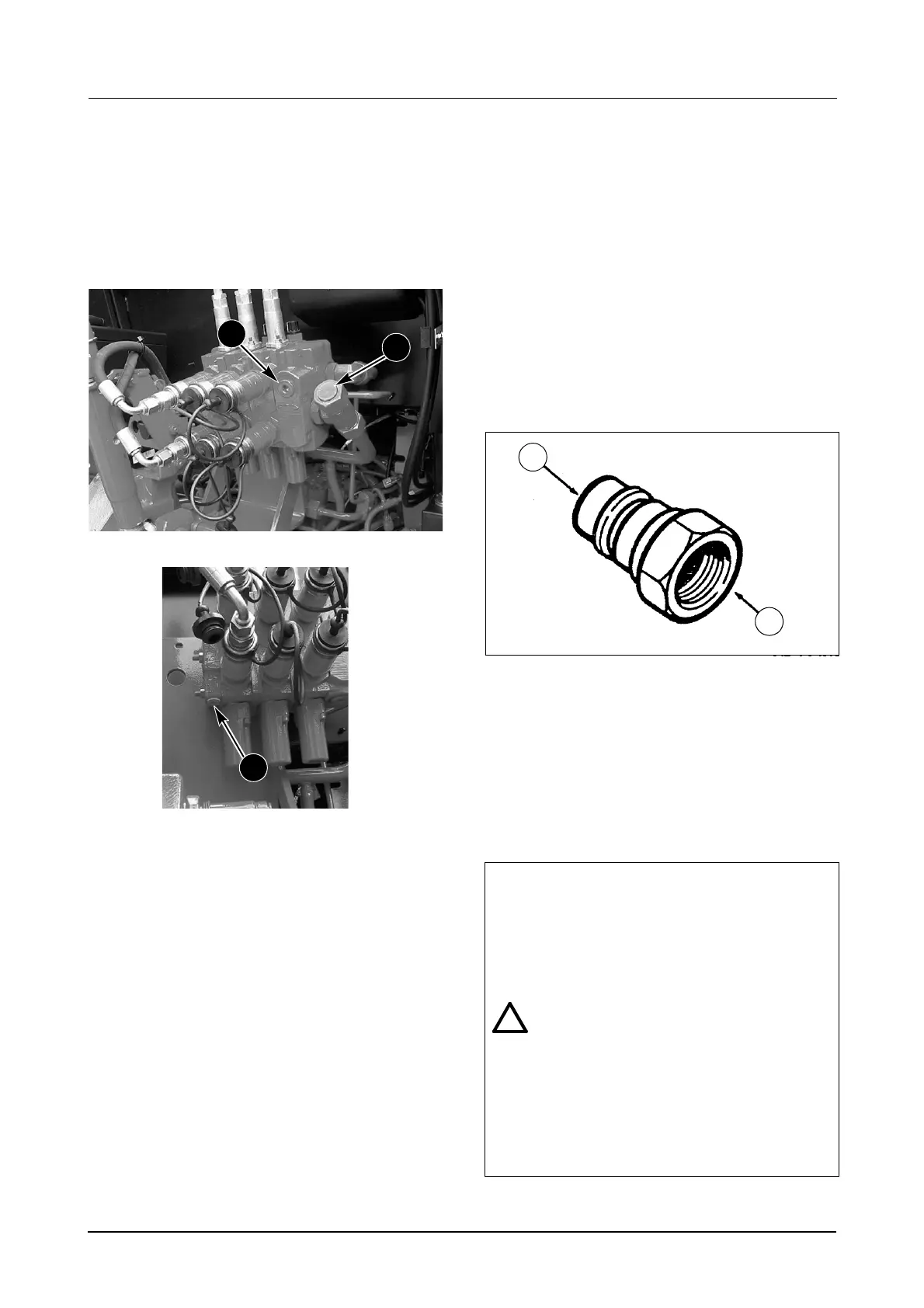

Power Beyond Connections
The power beyond connections can be used
when a continuous supply of oil is needed, for
example; a front loader. The implement must be
fitted with a closed center control valve which has
a work port signal line function.
MD04M084
MD04M085
1. PRESSURE
2. RETURN
3. SIGNAL
Hose Couplers
The tractor is equipped with ISO 5675 Standard
Female couplings. These couplings will fit
standard male hose couplers made to ASAE
S366, SAE J1036 or ISO Standard 5675.
Your dealer has ASAE Standard Male couplers,
part number 1272399C2 with 7/8-14 inch UNF
SAE Standard threads and 1272770C2 with 1/2-
14 inch NPTF threads and 1285718C2 with 3/4-
16 inch UNF SAE standard threads. Your dealer
can also supply hose fittings or adapters to
connect different combinations of implements to
the standard male coupler.
DP97A084
1
2
3
1. ASAE MALE COUPLER
2. PART NUMBER 1272399C2 (7/8-14 INCH UNF THREADS)
OR
PART NUMBER 1272770C2 (1/2-14 INCH THREADS
OR
PART NUMBER 1285718C2 (3/4-16 INCH THREADS)
WARNING: Hydraulic fluid escaping under
pressure can have enough force to
penetrate the skin. Hydraulic fluid may also
infect a minor cut or opening in the skin. If
injured by escaping fluid, see a doctor at
once.
Serious infection or reaction can result if
medical treatment is not given immediately.
Make sure all connections are tight and
that hoses and lines are in good condition
before applying pressure to the system.
Release all pressure before disconnecting
the lines or performing other work on the
hydraulic system. To find a leak under
pressure use a small piece of cardboard or
wood. Never use hands.
1
2
