Operation
102

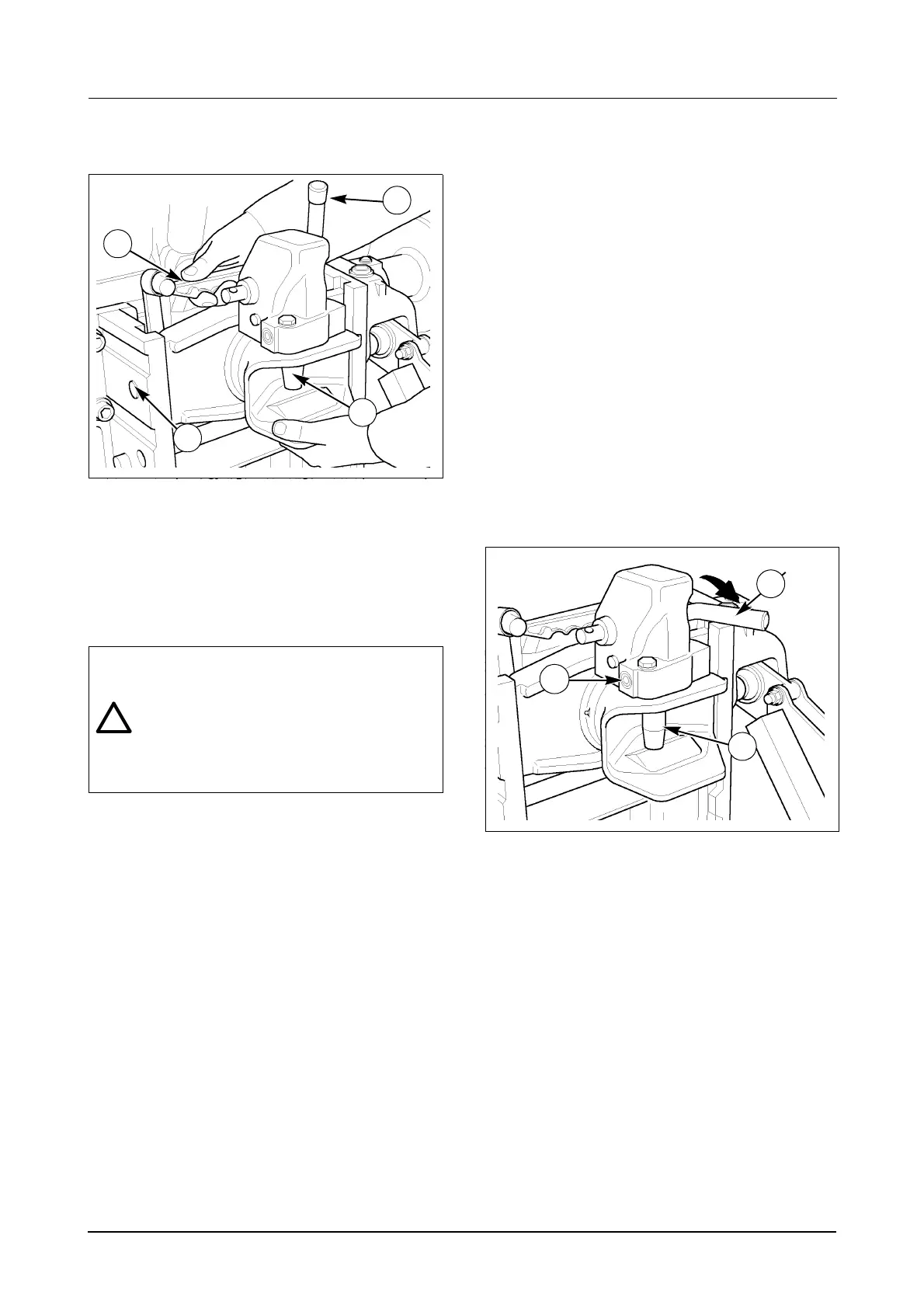

Automatic Clevis - Type A
MI02H047
To adjust the height, support the weight of the hitch
coupling assembly with one hand and with the other
hand pull the quick release lever (1) to the right.
Move the hitch coupling assembly to the required
position. Push the quick release lever (1) to the left
to lock the coupling assembly in position.
IMPORTANT: Check that the locking pins (4) have
fully engaged in the holes in the side support
(locking pins level with the outer surface).
IMPORTANT: Use only implement towing eyes with
40 or 50 mm inner diameter, see page 110.
Prior to connecting an implement make sure the
operating lever (2) is in the vertical position,
The connecting pin (3) engages automatically as
the implement towing eye contacts the release
mechanism inside the hitch coupling. Alternatively
the connectin pin can be engaged manually by
striking the operating lever (2) downwards (away
from the tractor) to the horizontal position.
Before moving the tractor make sure:
1. The indicator pin (5) is fully in.
2. The operating lever (2) is in the horizontal
position.
3. The connecting pin (3) is fully in the hole of
the pin guidance bushing (fully engaged). Do
not tow or move if the pin is not fully engaged.
MI02H046
NOTE: When the automatic hitch is not being
used, make sure the hitch connecting pin (3) is
down and the operating lever (2) is horizontal.
WARNING: DO NOT touch the inside of
the hitch coupling assembly when the
release mechanism is under tension,
(operating lever (2) in the vertical position).
Accidental movement of your hand may
trigger the release mechanism resulting in
serious injury.
1
2
3
4
5
3
2
To Next Page
