Operation
113
5

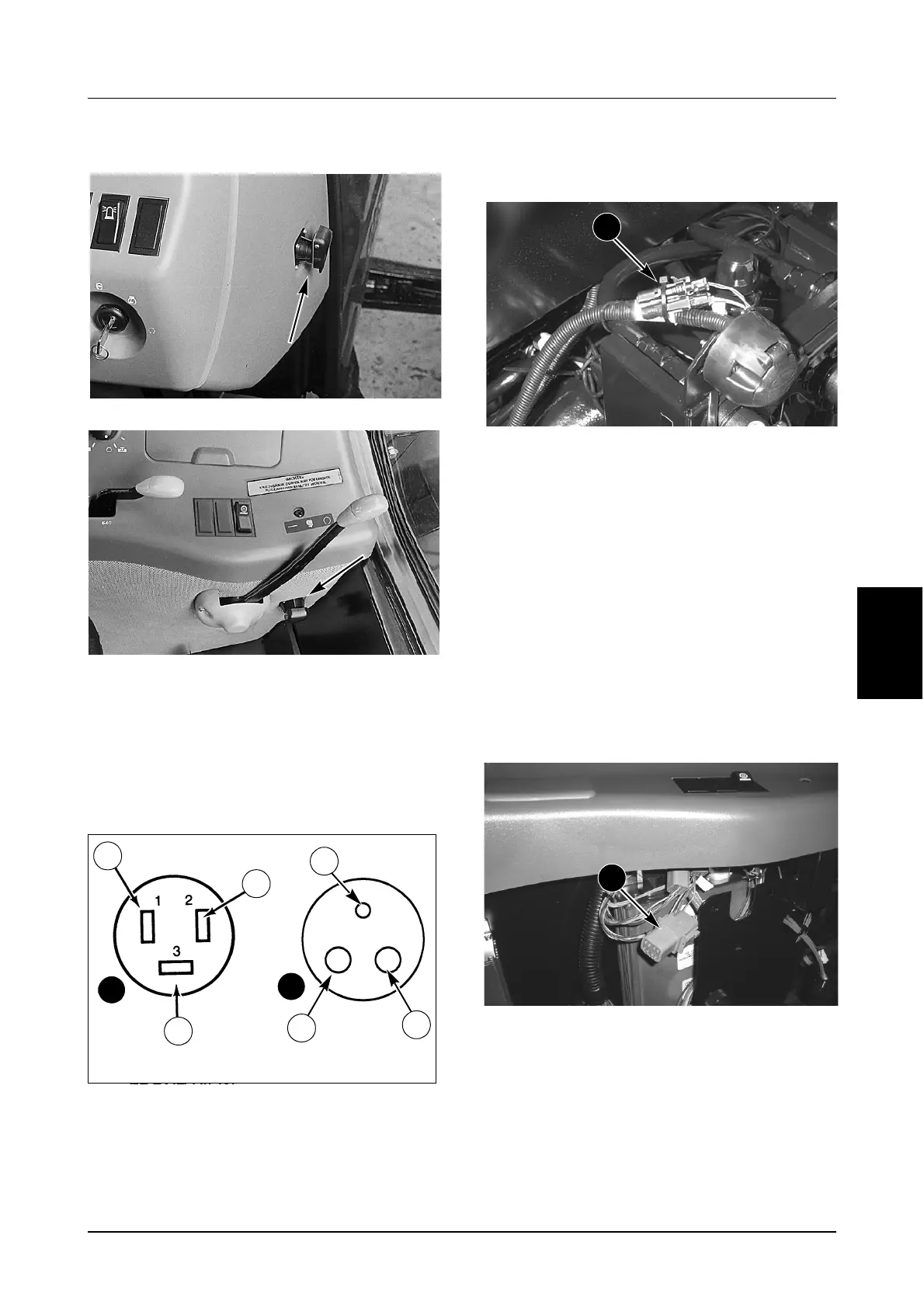

Three Terminal Electrical Sockets
DP97A096
DR99G160
Two auxiliary electrical power sockets are
provided inside the operators compartment for
connecting monitors, implement controllers, C.B.
radios, and other 12 volt equipment.
NOTE: The correct 3 pin plug to fit the sockets
can be obtained from your dealer.
A. NORTH AMERICA B. REST OF WORLD
1. POWER - THROUGH KEY SWITCH (134 RED CABLE)
2. POWER - DIRECT (164 RED CABLE)
3. GROUND (BROWN CABLE)
Remote Implement Switch
Harness Connection (If Equipped)
DD00H035
A two-pin plug connector (1) is provided at the rear
of the seven terminal electrical socket to permit the
connection of a remote implement switch (ON/OFF
Type Single Pole).
The connection of an external switching circuit from
the implement, allows the automatic area function
to be operated.
To operate using a remote implement switch, the
Hitch Raise/Lower Switch must be in the UP
position and the area mode must be set to AUTO.
Implement Interface Connector
(IIC)
MD04N011
The implement interface connector (2) is provided
to enable external systems to be connected to
various McComick electronic signals (eg. radar,
Axle speed).
The connector is located under the right hand
console towards the rear of the cab.
1
2
3
1
2
3
FRONT VIEW
A
B
1
2
To Next Page
