Changing the PTO Shaft
The MTX tractor range has a reversible PTO shaft, 6 splines on one end and 21 splines on the other.
How the PTO shaft is changed varies depending on tractor specification.
Reversible Shaft with Locking Collar
(Typically North American Tractors)

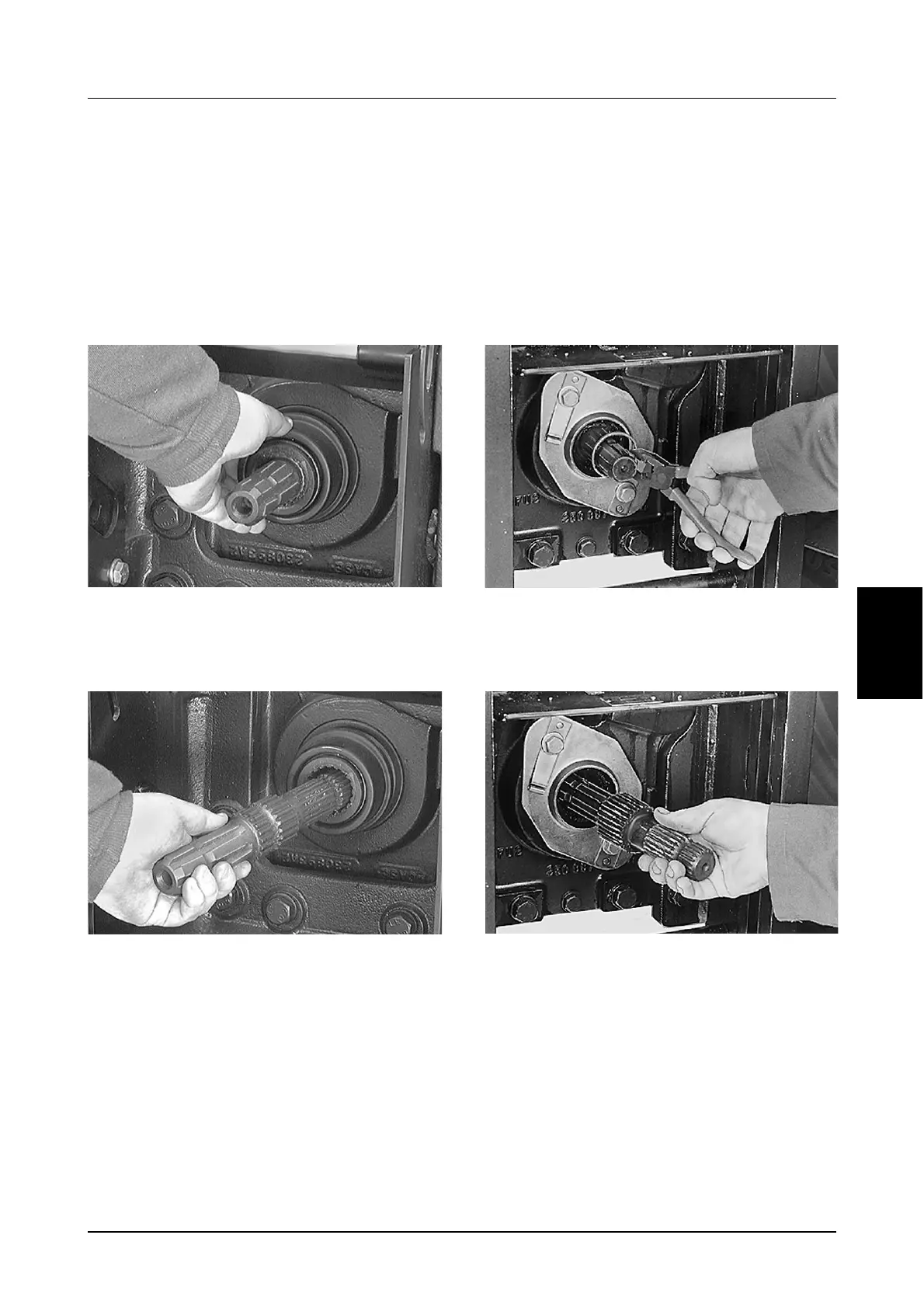

STEP 1
MH04C098A
Stop the engine. Lift the PTO guard. Push the
output shaft locking collar in to release the shaft.
STEP 2
MH04C099A
Remove the shaft. Clean the shaft splines. Put
grease on the shaft splines.
Push the locking collar in, insert the shaft and
release the collar.
Reversible Shaft with Snap Ring
(Typically European Tractors)
STEP 1
DP98M195A
Stop the engine. Lift the PTO guard. Remove the
snap ring which retains the output shaft.
STEP 2
DP98M196A
Remove the shaft and clean the shaft splines. Put
grease on the shaft splines and insert the other
end.
Install the snap ring, making sure the ring locates
correctly in the groove.
