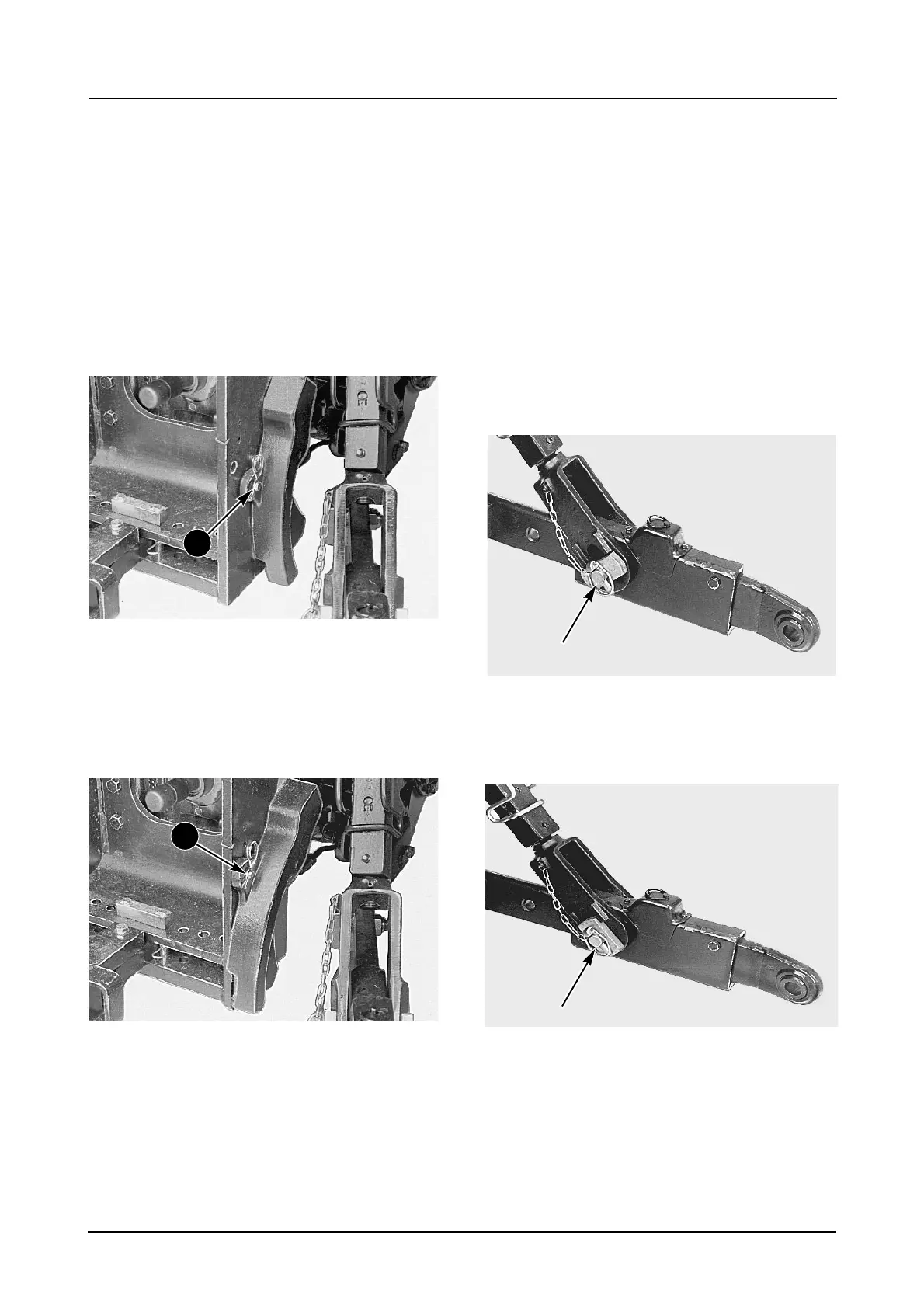

Cam Sway Blocks (If Equipped)
Cam sway blocks for the three point hitch can be
mounted in two (2) positions on the drawbar
support to control the side to side movement of
the three point hitch.
IMPORTANT: Cam sway blocks are designed
only for operation with Category II width
implements.
Rigid Operation
F02924
The sway blocks can be mounted in the RIGID
position with the pin in lower forward hole (1) to
give minimum side to side movement in both the
working and transport positions of the hitch.
Sway Operation
F02922
The sway blocks can also be mounted in the
SWAY position with the pin in upper rearward
hole (2) to give maximum side to side movement.
In the SWAY position the blocks are tapered to
automatically give maximum sway when the hitch
is lowered and to give no sway when the hitch is
raised (transport position).
Lower Link Flotation
IMPORTANT: Check the implement Operators
Manual to see if mechanical flotation can be
used.
One or both lower links can be set to move up or
down approximately 38 mm. The mechanical
lower link float is used when operating in variable
field surface conditions allowing the implement to
follow the surface conditions.
Mechanical flotation is also used when the
mounted implement width is more than the wheel
base of the tractor.
C05813
For RIDGID operation with no up or down
movement, the heads of the pins and the
washers must be across the lift rods as shown.
C05812
For FLOAT operation, the heads of the pins and
the washers must be aligned with the lift rods as
shown.
1
2
