MCCORMICK MTX Series - Page 181

Tyres, Wheels, Ballasting
173
6

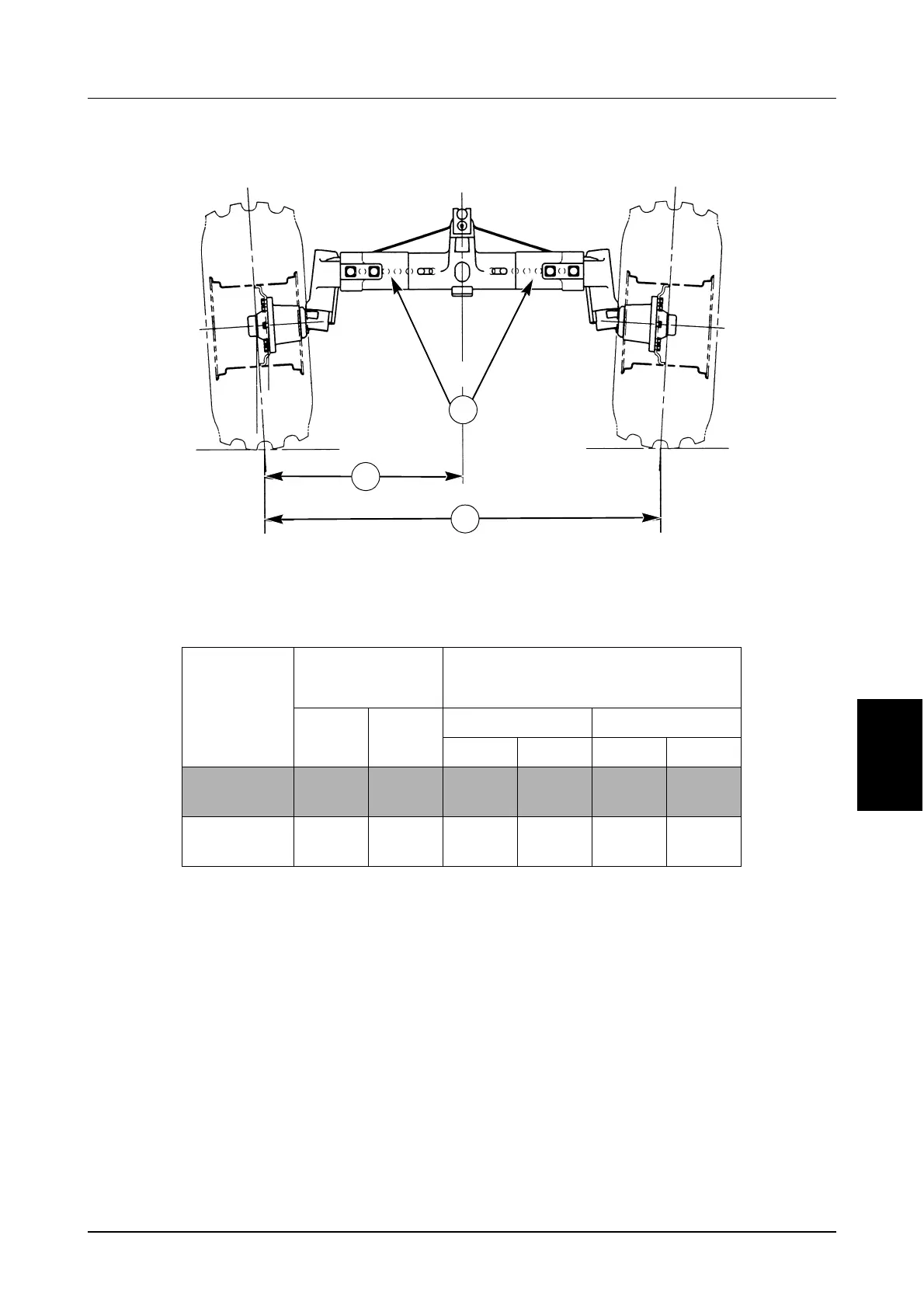

Two Wheel Drive (2WD) Front Wheel Tread Widths
2636H1
NOTE: All tread figures are at ground level. The maximum and minimum
tread width varies slightly with different tyre sizes.
A
B
C
A. 6 SETTINGS B. CENTRE OF AXLE TO
CENTRE OF TYRE
C. TREAD WIDTH
TYRE SIZE AND
RIM SIZE
CENTRELINE OF AXLE
TO CENTRELINE OF
TYRE
TREAD WIDTHS
RIM IN RIM OUT
RIM IN RIM OUT
MIN MAX MIN MAX
11.0 - 16
W10L X 16
770 mm
(30 inch)
871 mm
(34 inch)
1537mm
(61 inch
2045mm
(81 inch)
1740 mm
(69 inch)
2248 mm
(89 inch
14L - 16.1
W11C X 16.1
790 mm
(31 inch)
846 mm
(33 inch)
1580 mm
(62 inch)
2088 mm
(82 inch)
1689 mm
(67 inch)
2197 mm
(87 inch)
