Tyres, Wheels, Ballasting
182
STEP 8
Apply anti-seize compound Loctite 8150 to the
hub, bushing, bolt threads and washers.

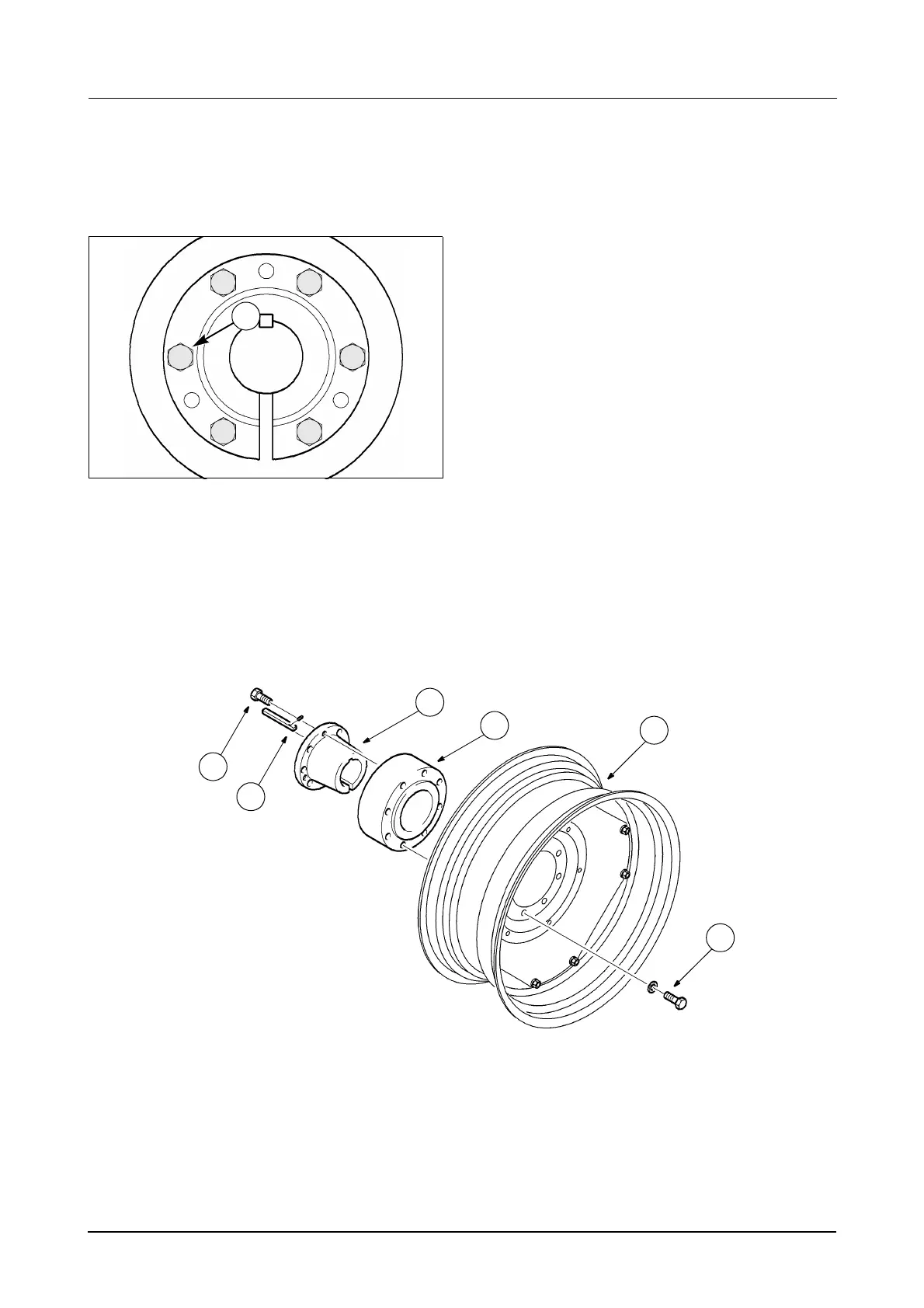

STEP 9
DI96M106
Remove the 3 bolts used as jacking bolts and
then install the six bolts (1) and tighten evenly in
50 Nm intervals, up to 244 to 298 Nm in the
sequence shown.
IMPORTANT: Do not exceed a torque of 298 Nm.
Apply anti-seize compound Loctite 8150 to the
exposed axle shafts.
Wheel Offset Direction Change
If you need to change the direction of the wheel
offset (in or out), remove the tire and wheel from
one side of the tractor and mount on the other
side of tractor. The tire pattern must face the
same direction.
DI96M091
1
3
4
6
2
1
5
1. TAPERED BUSHING BOLT 4. HUB BODY
2. BUSHING TO AXLE KEY 5. WHEEL RIM
3. TAPERED BUSHING 6. WHEEL MOUNTING BOLT
