Tyres, Wheels, Ballasting
191
6

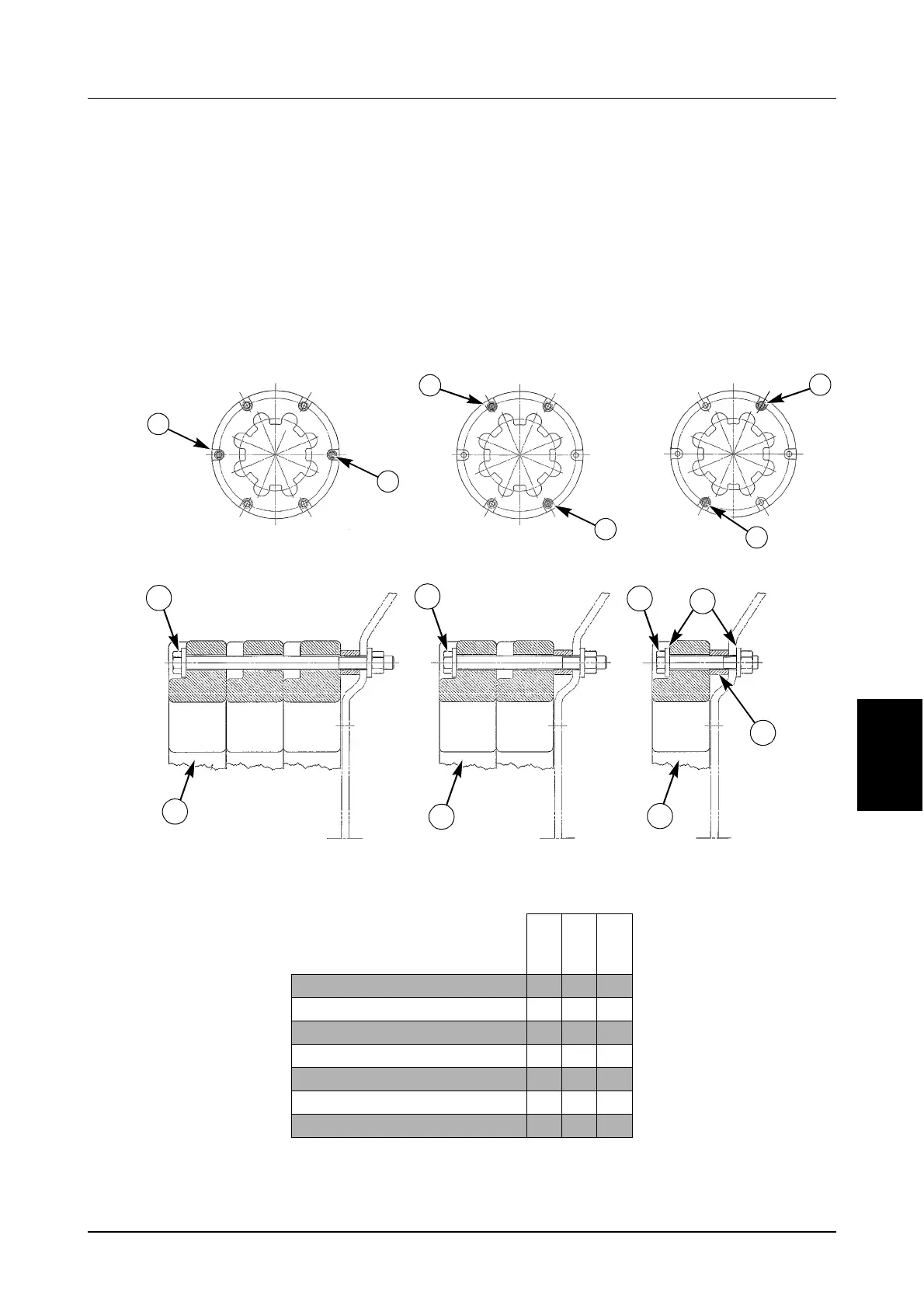

Installing Rear Wheel Weights
STEP 1
Park the tractor on hard level ground. STOP the
engine and apply the park brake. Remove the
key.
STEP 2
Secure the first weight using bolt (5) through hole
(A).
STEP 3
Then secure the second weight using bolt (6)
through hole (B) and finally secure the third
weight using bolt (7) through hole (C).
NOTE: Torque all bolts to 200-220 Nm (149-161 lb
ft).
1 x SET
2 X SET
3 X SET
1. WEIGHT 60 kg (132 lb)
2
2
2
2. SPACER
4
4
4
3. NUT
4
4
4
4. WASHER
8
8
8
5. HEX. HEAD BOLT (M16x115)
4
6. HEX. HEAD BOLT (M16x195)
4
7. HEX. HEAD BOLT (M16x260) 4
1
1
1
7
6
5
4
2
1 x Set of Weights2 x Set of Weights3 x Set of Weights
C
B
A
A
B
C
