Routine Maintenance
213
7
Check and Clean Cab Air Intake Filter
The air intake filters should be checked weekly or
daily if used in extreme conditions. The standard
paper element has the following efficiency with a
maximum differential pressure increase of 2 mbar
(0.029 psi): - SAE coarse 99.5%.
NOTE: This element gives no protection against
chemical spray.
Clean the intake air filter every 100 hours or
more often if needed. Keep the air filter clean for
efficient operation of the heating and cooling
system. Replace with a genuine McCormick part
if damaged or when the filter can not be cleaned.
IMPORTANT:
Respiratory protection equipment and
protective clothing appropriate to the environment
that the filter has been in contact with MUST be
used during the cleaning of the filter.

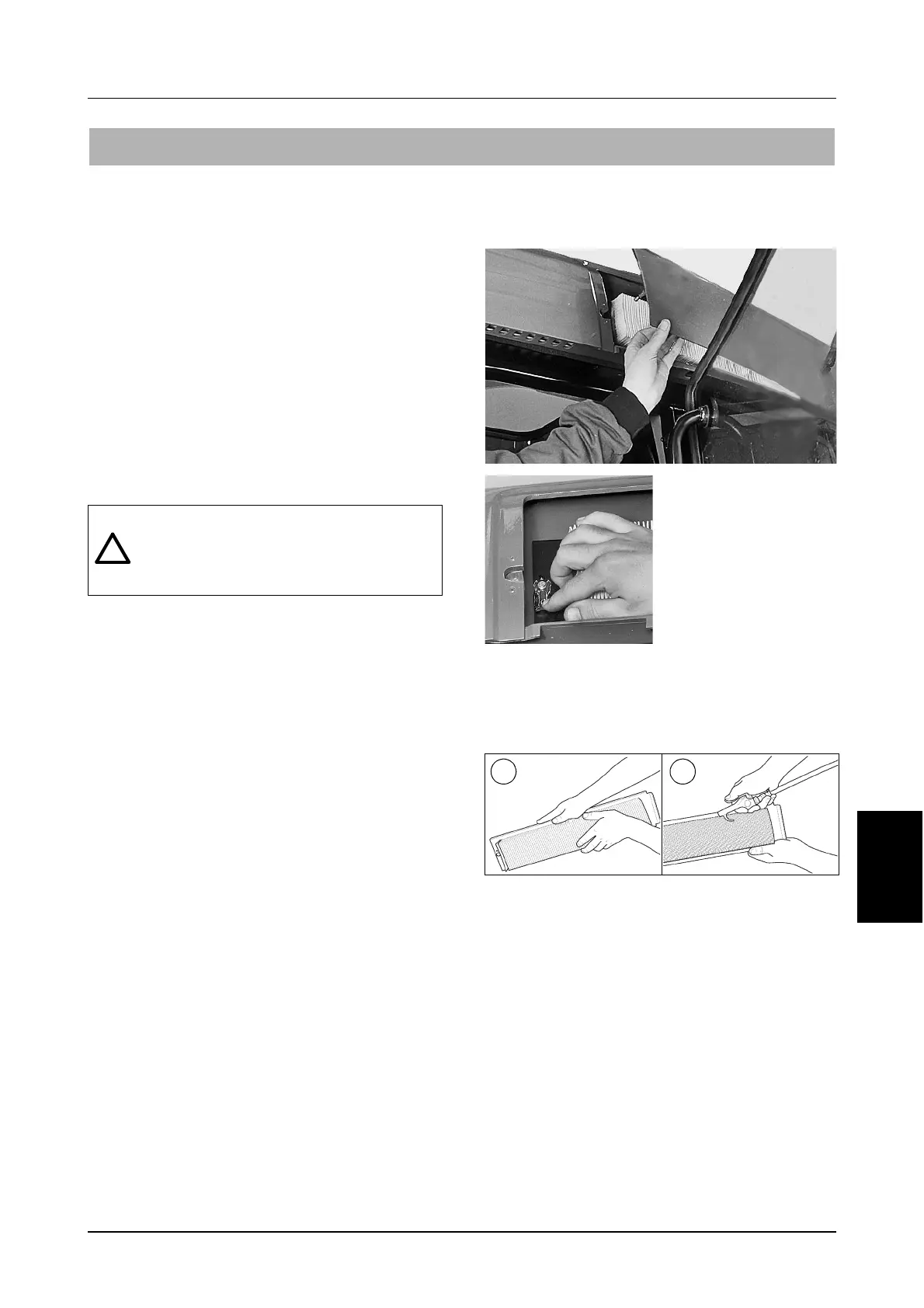

STEP 1
DP97A075 & DP96J439
STEP 2
The filter element can be cleaned by following
two methods:
MI03F034 & MI03F035
A. By tapping against a flat surface. Do not use
excessive force that can cause damage to the
filter.
B. By blowing with compressed air. Move the flow of
air up and down the clean side of the filter.
Maximum air pressure must not be more than 2
bar (29 psi). Too much pressure will damage the
filter.
IMPORTANT: Always use an air hose with a safety
ON/OFF control nozzle and ALWAYS WEAR FACE
PROTECTION.
STEP 3
Clean the filter housing before installing the clean
filter element. Secure the filter in place and close
the filter cover.
100 HOUR SERVICE
WARNING: Do not stand on the tractor to
service the filter, use the correct equipment
for a safe standing platform or injury can
result.
Open the filter cover.
Push the catch down
and remove the filter
element.
1
A B
