MCCORMICK MTX Series - Page 53

Operating Controls
45
3
Automatic Temperature Control System (If Equipped)
MS02J017

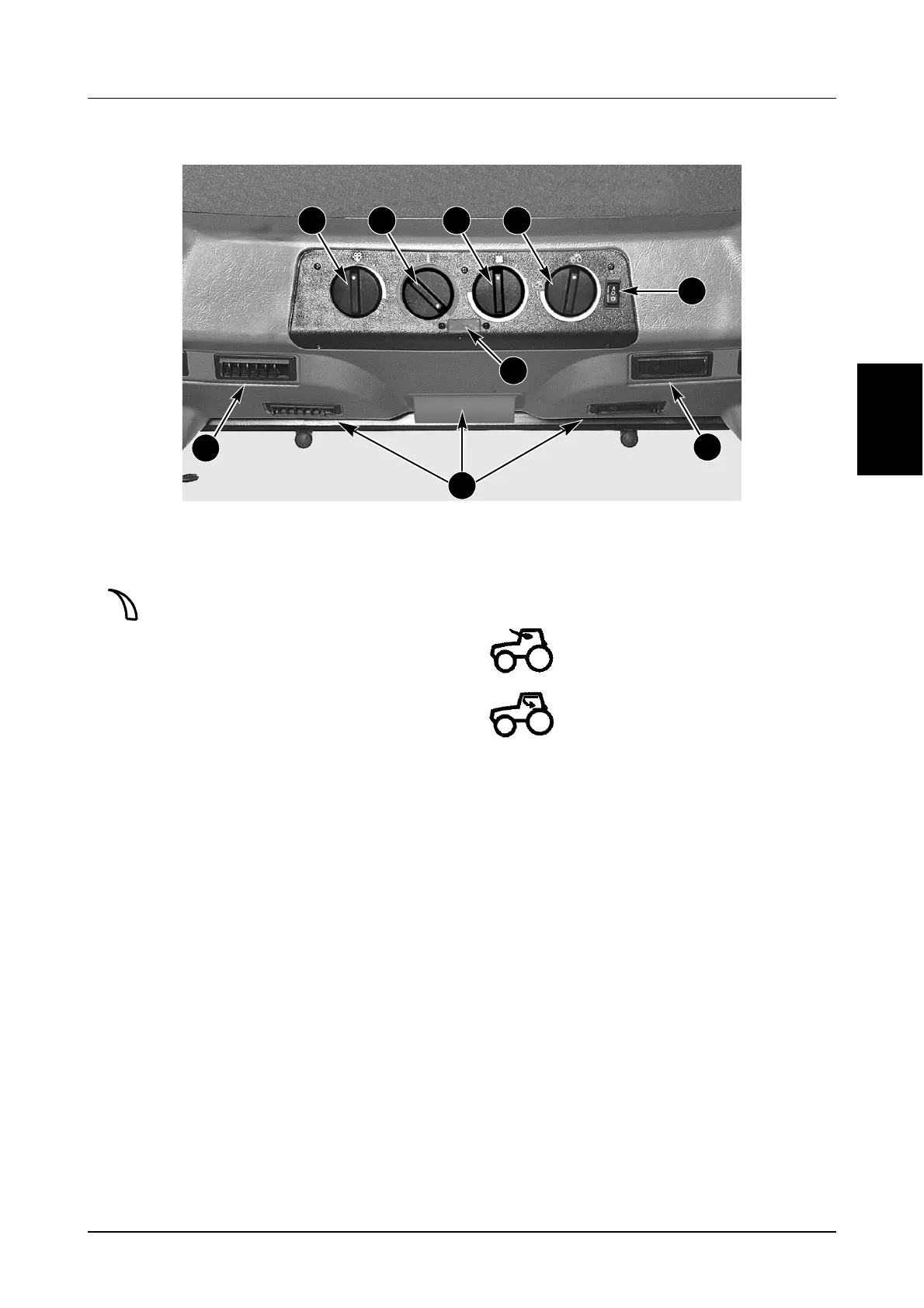

1. WINDSHIELD WIPER/WASHER CONTROL -
Three Positions:
NOTE: On tractors equipped with the
opening windshield there is only one
speed.
Push the control knob to activate windshield
washer (If Equipped).
2. TEMPERATURE CONTROL - Turn the control
clockwise to raise the in-cab temperature. To
lower the in-cab temperature turn the control
counterclockwise.
3. BLOWER CONTROL - Turn the control
clockwise. Keep turning the control clockwise
to increase the blower speed.
4. RECIRCULATION CONTROL - Adjust the
control as required to regulate amount of
fresh air intake/recirculation of air within the
cab.
5. A. DEFROST LOUVERS -
B. AIR DISCHARGE LOUVERS -
To open or close the louvers and control air flow
direction move the louvers from side to side as
required. The units can also be adjusted front to
rear for added air flow control.
6. AUTOMATIC TEMPERATURE CONTROL -
see page 46 for more information.
1
5B
5B
2 3 4
5A
6A
6B
I
II
Intermittent, turn the control clockwise to
increase or counterclockwise to
decrease wipes per minute.
Slow.
Fast.
Fresh Air Intake.
Recirculation of air within cab.
