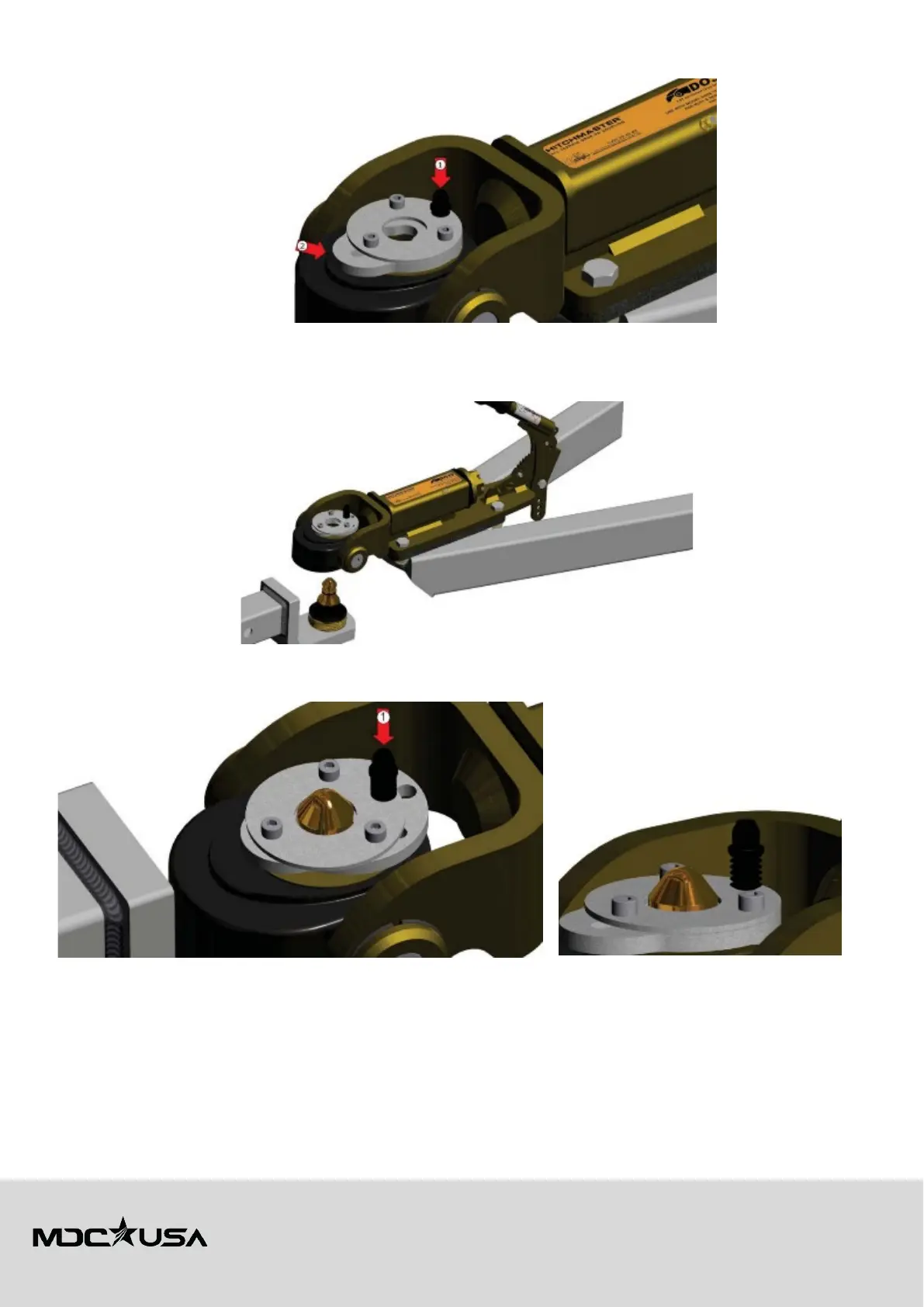

Push down the button (1) and push the locking mechanism back (2). When the locking mechanism (2) is all the way back,
release the button (1) locking the plate in place.
Offer up the tow pin to the coupler making sure the tow pin cover is removed and there is no visible debris on it. Locking
plate should be in unlocked position as shown. Lower the coupling onto the tow pin.
Make sure the tow pin is seated inside the universal and the tow pin top is sticking out of the locking mechanism (see
below). Press the button (1) to release the locking mechanism there will be an audible locking noise at which point the
mechanism will return to the initial position as shown in step 1. Verify the pin is correctly through the mechanism and
assemble the cap. If the cap will not fit check the locking mechanism is in the correct locked orientation.
