Water System Overview
Your MDC travel trailer is equipped with a comprehensive water system, including fresh water tanks, a grey water tank, a
marine-grade diaphragm water pump, a recessed wet bay for water access points, and various valves to manage water flow.
Proper operation and maintenance ensure reliable performance for longer periods of ununturrupeted water supply while off-
grid.

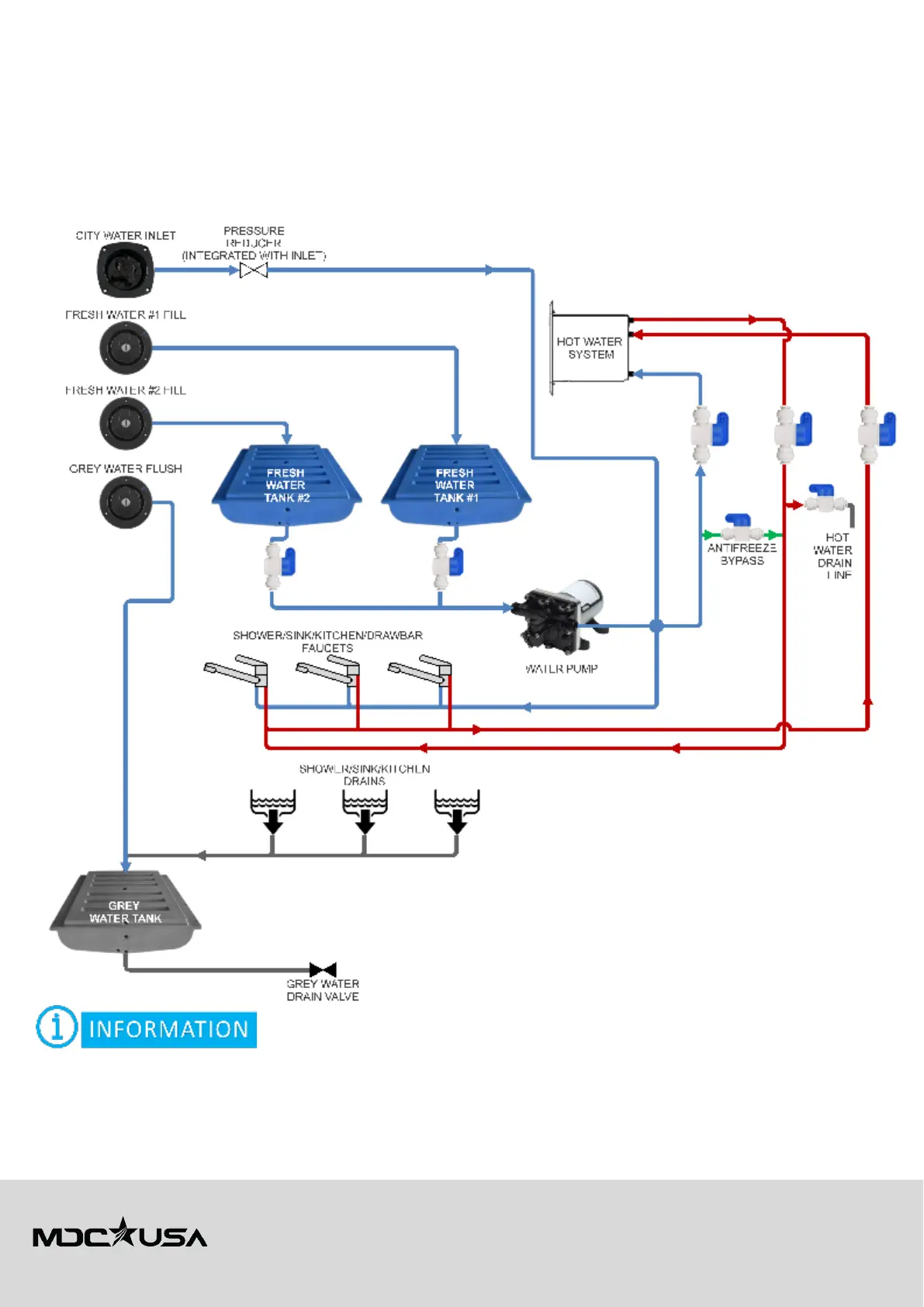

The following diagram is a visual representation the layout of the water system in your Off-grid Extreme edition trailer, including
the routing of cold, hot, and grey water lines, as well as key components such as the tanks, pump, heater, and valves.
This diagram is a simplified representation and may not reflect the exact routing, scale, or
component placement in your specific trailer model.
Always refer to the actual system components
and labels in your trailer for precise operation and maintenance.
