Section 2 - Setup and Calibration
90-8M0070299 eng MAY 2012 Page 13
NOTE: Use "HELM ID 1" for single helm vessels. If a vessel has multiple VesselView units installed on different helms (up
to four maximum) the "HELM ID" represents the helm location where each VesselView is installed (lowest to highest helm
is recommended).
4. Press the left or right arrow on the arrow pad to choose either helm 1, helm 2, helm 3, or helm 4.
5. Confirm your selections by pressing the check button.

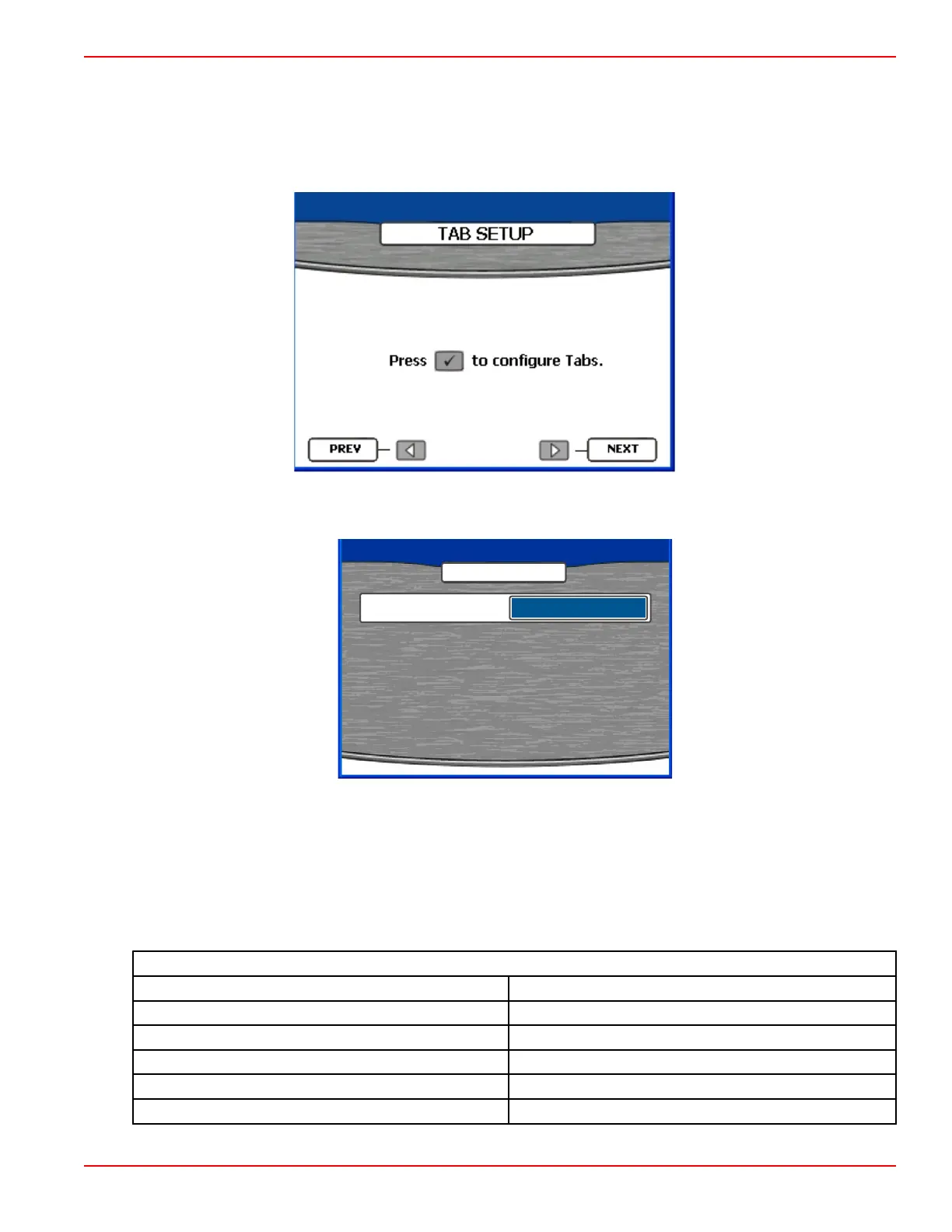

6. Press the check button to enter "TAB SETUP."
7. Press the left or right arrow on the arrow pad to identify the propulsion type: "NONE," "MERCURY," "POD."
NOTE: Calibration of the tabs is not required for Zeus power packages.
PROPULSION TYPE
POD
45137
TABS
8. "NONE" is the default selection when no sensors are detected. If tabs are installed, press the down arrow on the arrow pad
to access the number of tabs. If there are no tabs installed, press the "X" button to go back one step to the "TAB SETUP"
screen and continue to step 29.
9. Press the left or right arrow on the arrow pad to select the number of tabs installed. Up to three tabs can be selected.
10. Press the down arrow on the arrow pad to access the "RIGHT TAB" window.
11. Press the left or right arrow on the arrow pad to select the location name for the right, left, and center tabs. The location
names available are:
Tab location names
"NONE" None
"STBD TAB 1" Starboard tab 1
"STBD TAB 2" Starboard tab 2
"PORT TAB 1" Port tab 1
"PORT TAB 2" Port tab 2
"STBD CNTR TAB 1" Starboard center tab 1
To Next Page
