Section 2 - Setup and Calibration
90-8M0070299 eng MAY 2012 Page 15

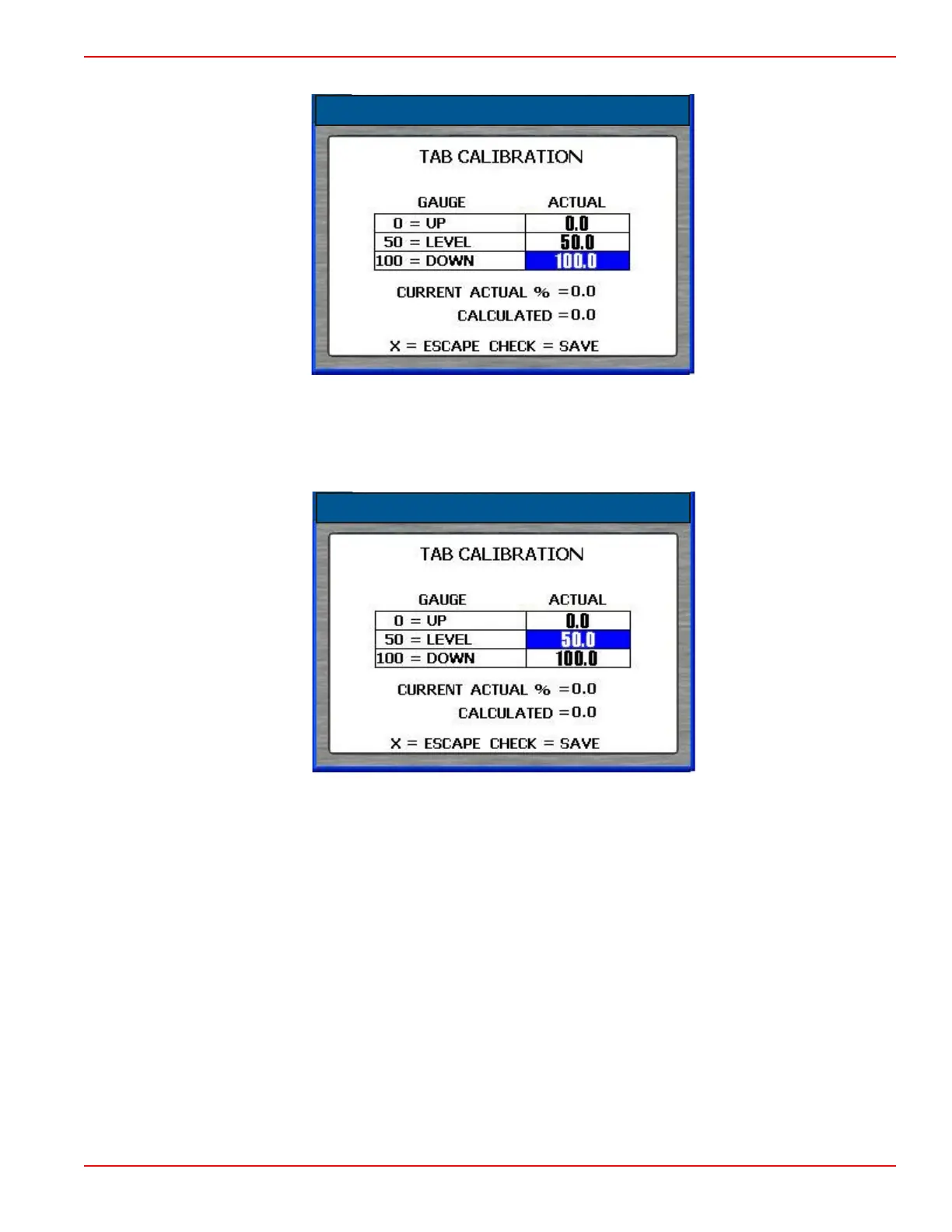

19. Press the down or up arrow on the arrow pad to highlight the "ACTUAL DOWN" option.
45140
20. Press the left or right arrow on the arrow pad to adjust the "ACTUAL DOWN" tab percentage to match the "CURRENT
ACTUAL %."
21. Raise the tab into its level position.
22. Press the up arrow on the arrow pad to highlight the "ACTUAL LEVEL" option.
45141
23. Press the left or right arrow on the arrow pad to adjust the "ACTUAL LEVEL" tab percentage to match the "CURRENT
ACTUAL %."
24. Raise the tab into its up position.
