MIMAKI UCJV300 Series User Manual

Chapter 2 Printing
54

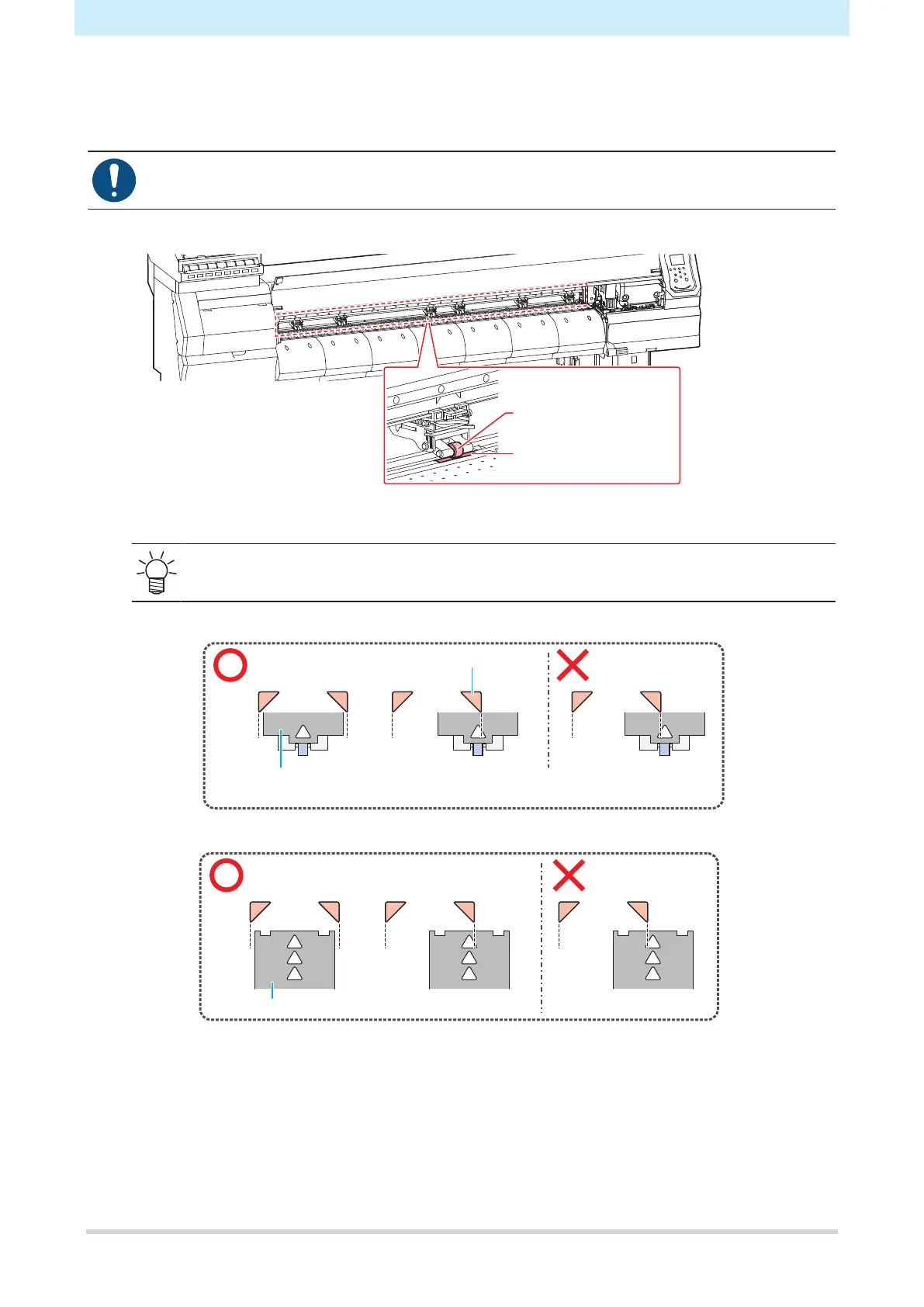

2.3 Adjusting the Pinch Roller Positions
Adjust the pinch roller positions to suit the width of the media being used.
• Always use at least two pinch rollers.
1
Choose the grid rollers capable of holding down the media at equal intervals.
Pinch roller
Grit roller
2
Move the pinch rollers above the grit rollers.
• Use the pinch roller guide marks as references.
• When adjusting from the front
Pinch roller guide mark
Pinch roller unit (top view)
Adjust the triangle mark to within the range of the pinch roller guide marks.
• When adjusting from the rear
Pinch roller unit
3
Align the pinch rollers at both the ends to within 10 cm from the left edges and 2 cm from the
right edges of the media.
• Placement farther from the edges may leave some portions of the media uncut.
4
Remove the pinch rollers lying outside the media from the grit rollers.
• Feeding media with the pinch rollers and grit rollers in contact will cause pinch roller wear.

MIMAKI UCJV300 Series Specifications

General

Print Technology	UV-LED inkjet
Max Print Resolution	1200 x 1200 dpi
Power Supply	AC 100-240 V, 50/60 Hz
Ink Type	UV-curable ink
Media Thickness	1 mm or less
Interface	USB, Ethernet
Operating System Compatibility	Windows 10, Windows 8.1, Windows 7
Ink Colors	CMYK, White, Clear
