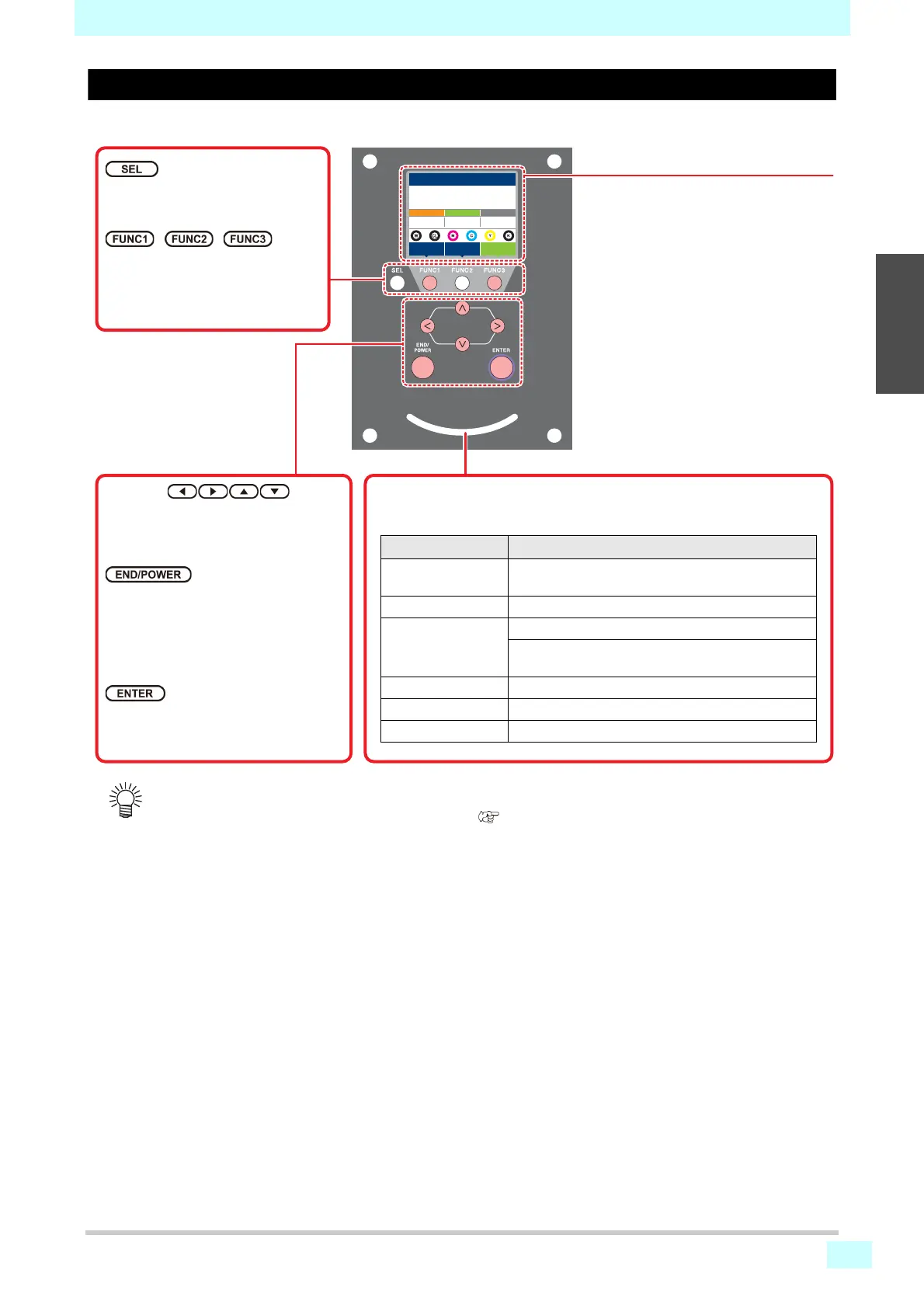

Status indicator lamp
Indicates the machine’s status (printing, error occurred, etc).
Condition of Lamp Condition of machine
OFF
Machine is in LOCAL mode, no print data has been
received, and no errors have occurred.
Lit steady Light blue Switched to Remote mode.
Flashing Light blue
Currently printing.
In test printing: printing a pattern stored inside the
machine.
Lit steady blue Print data still remains in the machine.
Flashing red Error has occurred.
Lit steady red Error (SYSTEM HALT) has occurred.
Display
Displays the following items:
• Printer status
• Ink status
• Functions assigned to [FUNC1]
to [FUNC3]
key
Changes over the functions of the
function keys ([FUNC1]–[FUNC3]).
/ / key
Press this to set various functions or
to do test printing. The function
keys’ functions are changed each
time [SEL] key is pressed.
JOG key
Use these keys to shift the carriage or
the media in [LOCAL]. Also use them to
select an item of printing conditions.
key
Cancels the last input value or returns
the setting menu to the immediate
higher level of the hierarchy. Also, press
this to turn the power on or off. (Give it a
long press to turn the power off.)
key
Registers the last input value as the
setting value or goes to the immediate
lower level of the hierarchy.
• The [ENTER] key under the operation panel lights in blue when the power is turned on, and off when the power switch
is turned off. The operation for preventing ink sedimentation is carried out periodically even with the power switch
turned OFF when the main power switch is turned ON.( P.1-4)
• When Mimaki Remote Access is in use, "During remote control. [ent]" will appear on the display, and key operations
using the control panel of the unit will be disabled.
• If you press the [ENTER] key when "When remote control. [Ent]" is displayed on the display, the remote control state is
released and you can operate the keys with the control panel.
