Chapter 4 Maintenance
4-13
1
2
2
4
5
6
6

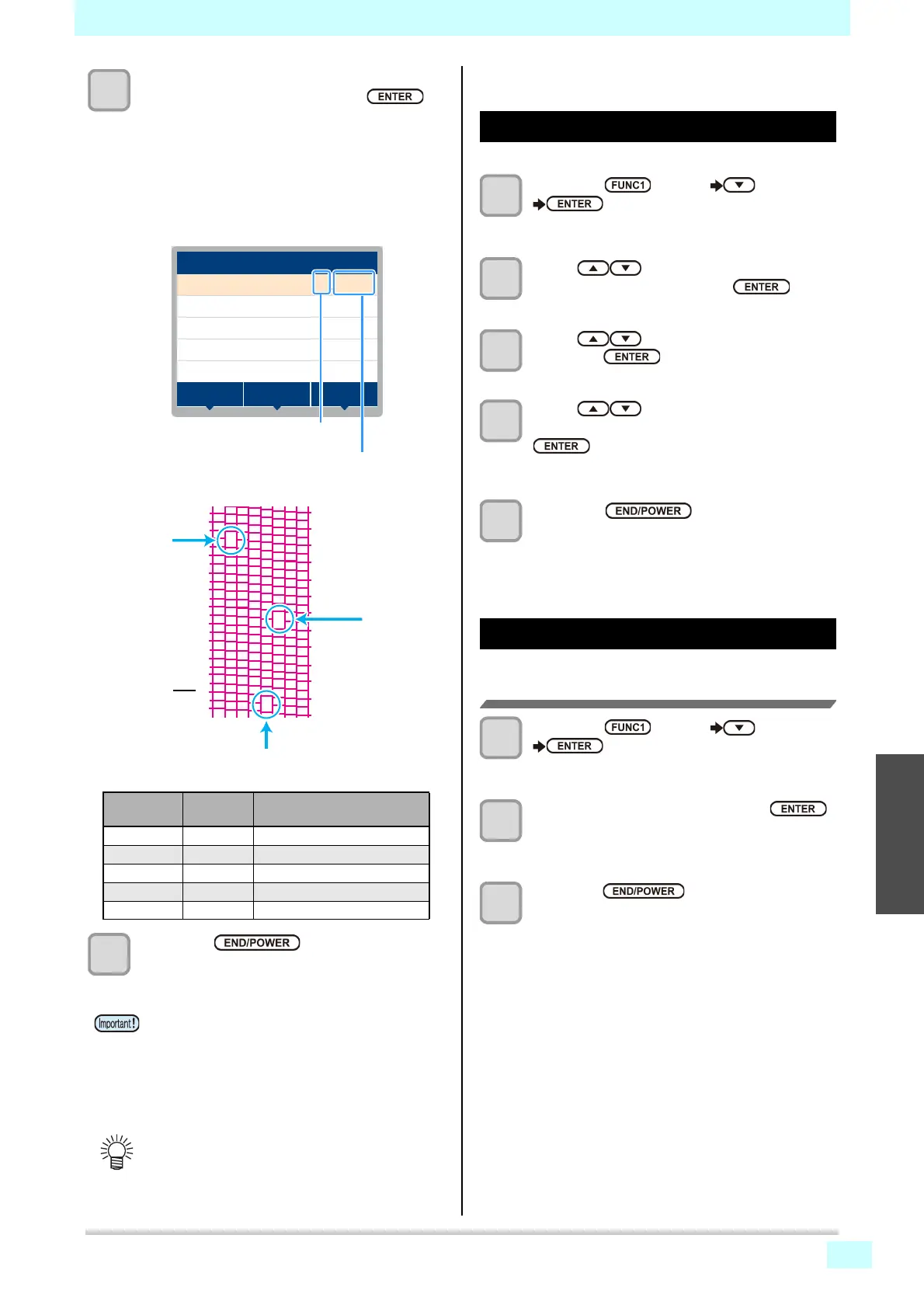

Register the Nozzle number that needs
NOZZLE RECOVERY and press
key.
(1) Select the registration number from 1 to 10
by pressing [][] key and press the
[ENTER] key.
(2) Register the nozzle number that needs
recovery by pressing [][] key and press
the [ENTER] key.
7
Press the key several times
to end the setting.
Other maintenance functions
Reset the set value
1
Press the
(MENU)
(4 times)
key in LOCAL.
• MAINTENANCE MENU will be displayed.
2
Press to select “NOZZLE
RECOVERY”, and press the key.
3
Press to select “Reset”, and
press the key.
4
Press and to select theNozzle
line that need reset, and press the
key.
• A reset confirmation message will be displayed.
5
Press the key several times
to end the setting.
Checking the UV Lamp Usage
Checking UV Lamp Use Time
1
Press the
(MENU)
(4 times)
key in LOCAL.
• MAINTENANCE MENU will be displayed.
2
Select “UV Lamp”, and press the
key.
• The UV irradiation time is displayed.
3
Press the key several times to
end the setting.
• Up to 10 nozzles can be registered per 1 nozzle
line.
• Even if you use this function, time required for
drawing does not change.
• When printing has been done with the lowest path,
nozzle recovery is not reflected.
Perform test printing to confirm.
• If the special ink is not clearly visible, print on the
clear film to check.
NOZZLE RECOVERY
H1-A
NG 1: OFF
>><<
Recovery nozzle No.: 1 to 318, OFF
Registration number : 1 to 10
1
8
17
24
33
40
49
56
65
72
81
88
97
104
113
120
129
136
145
152
161
168
177
184
193
Nozzle missing
No.91
Nozzle number
Nozzle missing
No.167
Registration
number
Recovery
Nozzle No.
State
1 12 Target for nozzle recovery
2 91 Target for nozzle recovery
3 167 Target for nozzle recovery
4 OFF No registration
5 OFF No registration
Example of nozzle to be recovered
Nozzle missing No.12
