20 - 6 BeneVision N Series Patient Monitor Operator’s Manual
To connect the HemoSphere monitor, follow this procedure:
1. Connect CN1 with the CCO/SvO2 cable connector of the CCO/SvO2 module.
2. Insert the UART signal end of the CCO/SvO
2
cable into the COM1 serial port on the rear housing of the
HemoSphere monitor.
3. Insert the CVP and MAP signal ends of the CCO/SvO
2
cable into the Analog Inputs on the rear housing of
the HemoSphere monitor.
4. Insert ECG signal end of the CCO/SvO
2
cable into the ECG Input on the rear housing of the HemoSphere
monitor.
5. Enter the Serial Port Setup menu of the HemoSphere monitor, and make the following settings:
â—† Device: IFMout
â—† Baud Rate: 19200
â—† Parity: None
â—† Stop Bits: 1
â—† Data Bits: 8
â—† Flow Control: 2 seconds
6. Enter the Analog Input Setup menu of the HemoSphere monitor, and set as follows:
For more information, see the HemoSphere operator’s manual for the operation of the monitor.
(1) COM1 Serial Port (2) Analog Input
(3) Analog Input (4) ECG Input
Parameter
MAP CVP
Voltage Range
0-5 v 0-5 v
Full Scale Range
500 mmHg (66.7 kPa) 100 mmHg (13.3 kPa)
Simulated High Value
500 mmHg (66.7 kPa) 100 mmHg (13.3 kPa)
Simulated Low Value
0 mmHg (0.0 kPa) 0 mmHg (0.0 kPa)


+)-
.*3/
(1)
(2)
(3)
(4)
20.5.5 Connecting the HemoSphere Monitor

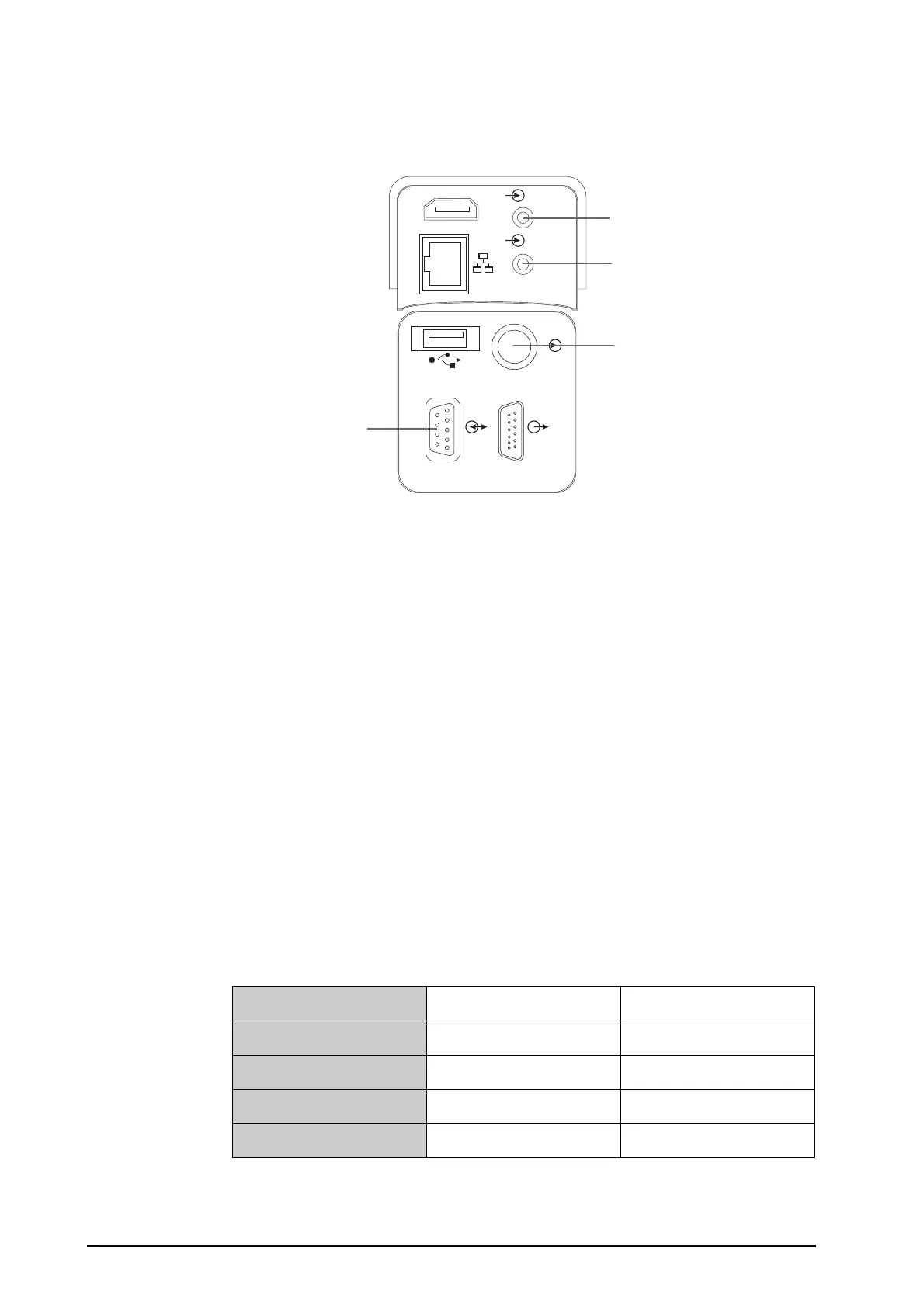

The following figure shows the rear housing of the HemoSphere monitor.
