2 - 4 BeneVision N Series Patient Monitor Operator’s Manual
2.3.1.2 N22, N19 Main Unit for Separate Installation

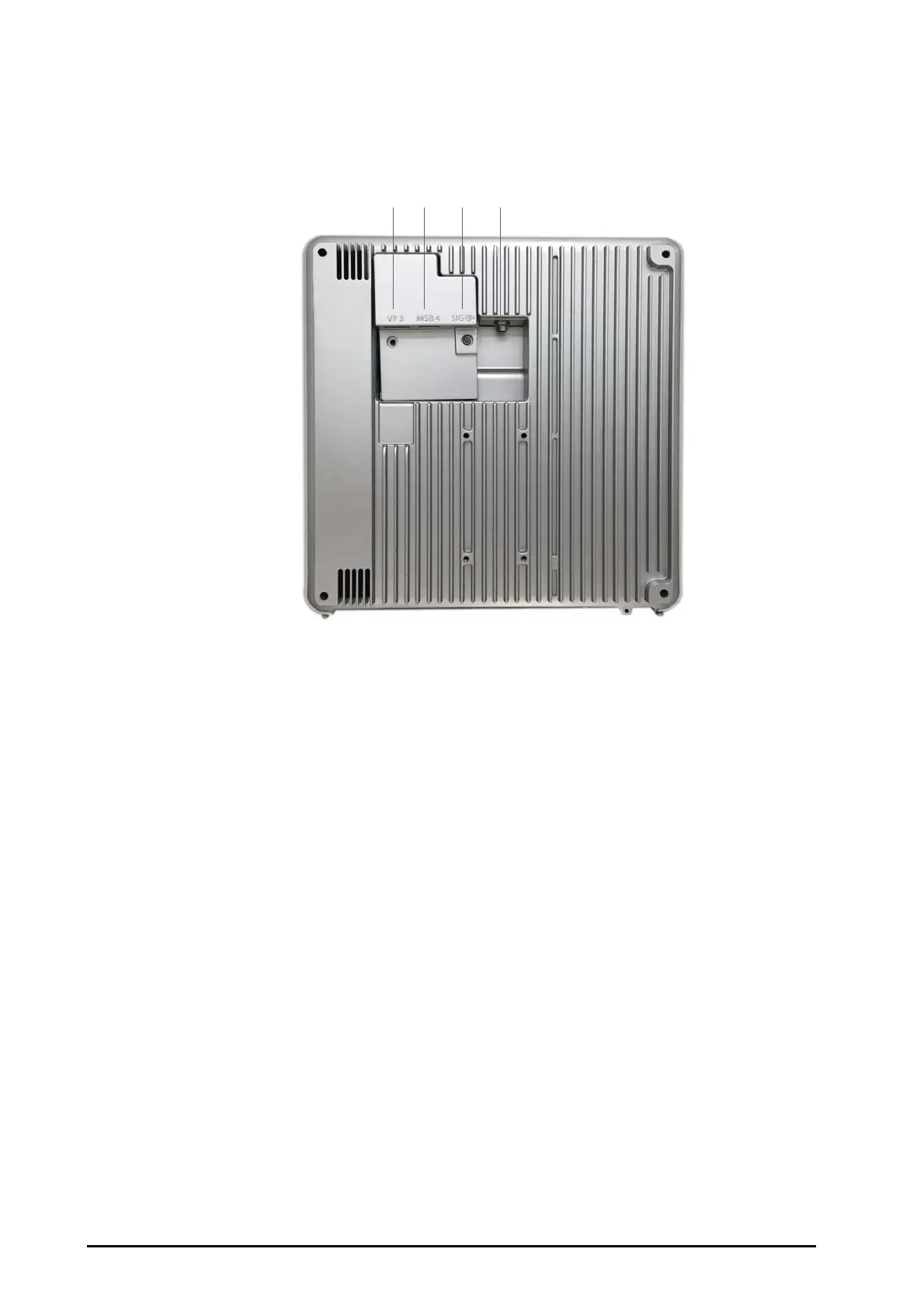

If the main unit and the primary display are separately installed, besides the connectors described in 2.3.1.1N22,
N19 Main Unit for Integrated Installation, the main unit also provides connectors at the rear.
2.3.2 N22, N19 Displays
The displays are used to display system information, alarm messages, parameter numerics, waveforms, and so
on. The displays integrate audible and visual alarms and provide USB connectivity. There are two display sizes
available: the 22-inch display and the 19-inch display. The monitor supports a primary display, a secondary
display, and a iView display.
(1) Video output connector (VP3): connects the VP connector on the separated primary display.
(2) Serial bus connector (MSB4): connects the serial bus hub connector (SBH) on the separated
primary display.
(3) Signal input connector (SIG): connects the SIG1 connector on the separated primary display.
(4) DC-in connector: connects the DC-in connector on the separated primary display.
