BeneVision N Series Patient Monitor Operator’s Manual 2 - 3

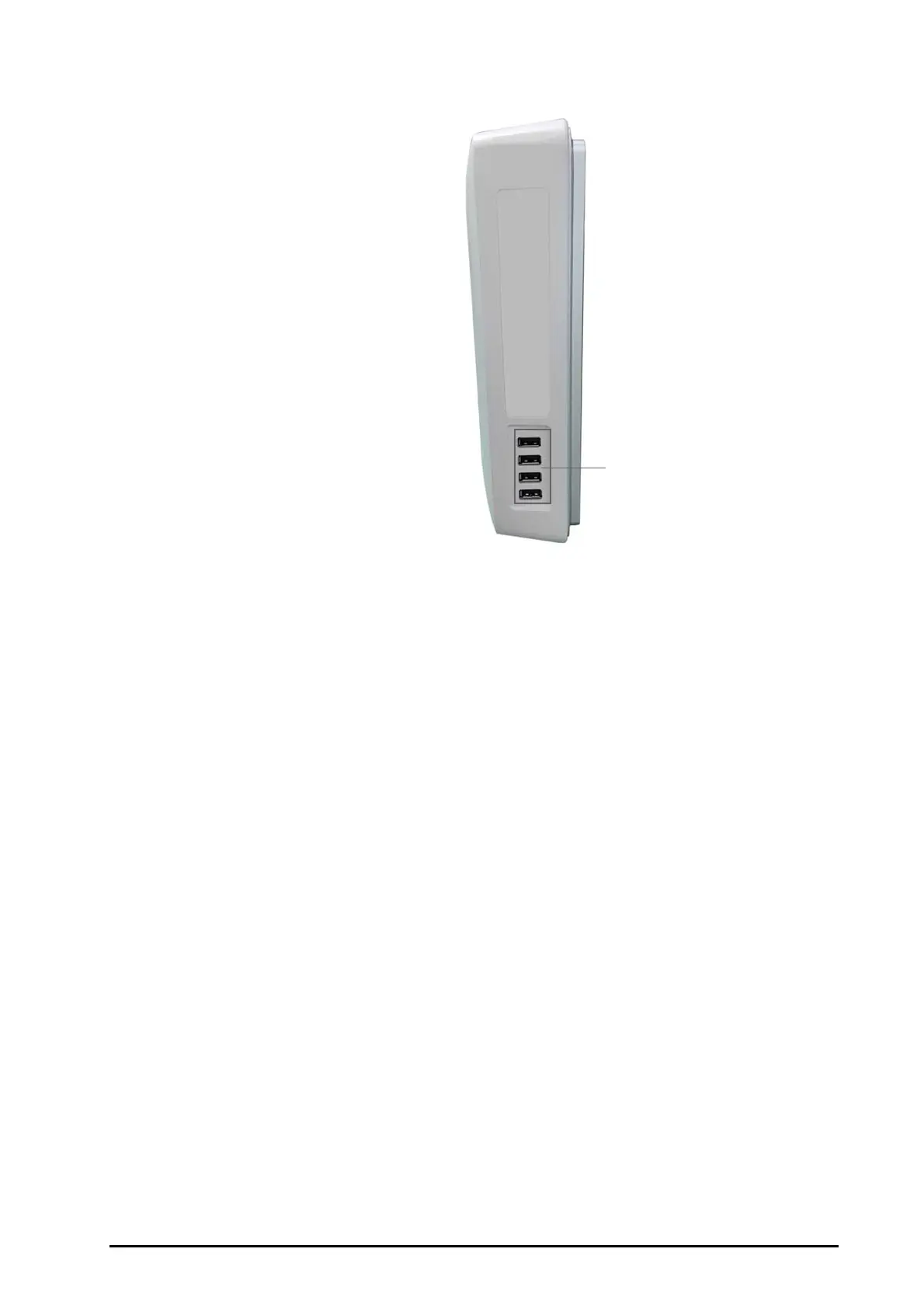

N22, N19 Left View
(1) Cable retainer
(2) AC Power input
(3) Nurse call connector (NC)
It is a BNC connector. It connects the monitor to the hospital’s nurse call system through the nurse call cable (PN:
8000-21-10361). Alarms from the monitor are sent to the nurse station through the nurse call system, if
configured to do so.
(4) Satellite module rack connector (SMR1, 2, 3): connects the SMR and N1 or T1 Dock.
(5
) Equ
ipotential Grounding Terminal
When using the monitor together with other devices, connect their equipotential grounding terminals together
to eliminate the potential difference between them.
(6) Video output connector (VP1): connects the secondary display.
(7) Network Connector (LAN1)
It is a standard RJ45 connector which connects the monitor to the central monitoring system (CMS) or other
network devices.
(8) Network Connector (LAN 2)
Reserved for future use.
(9) Serial bus connectors (MSB1, 2, 3): connect USB devices, for example the keyboard, mouse, and barcode reader. If
independent secondary display is connected, the MSB1 connector is connected to the SBH connector at the rear
of the secondary display to activate the MSB connector connecting the keyboard and mouse for the
independent secondary display.
(10) Network Connector (LAN3)
It is a standard RJ45 connector which connects the iView system to the external network.
(11) Video output connector (VP2): connects the iView display.
(12) USB connectors: available only when iView module is configured. They connect USB devices for the iView, for
example keyboard and mouse.
