3 - 6 BeneVision N Series Patient Monitor Operator’s Manual

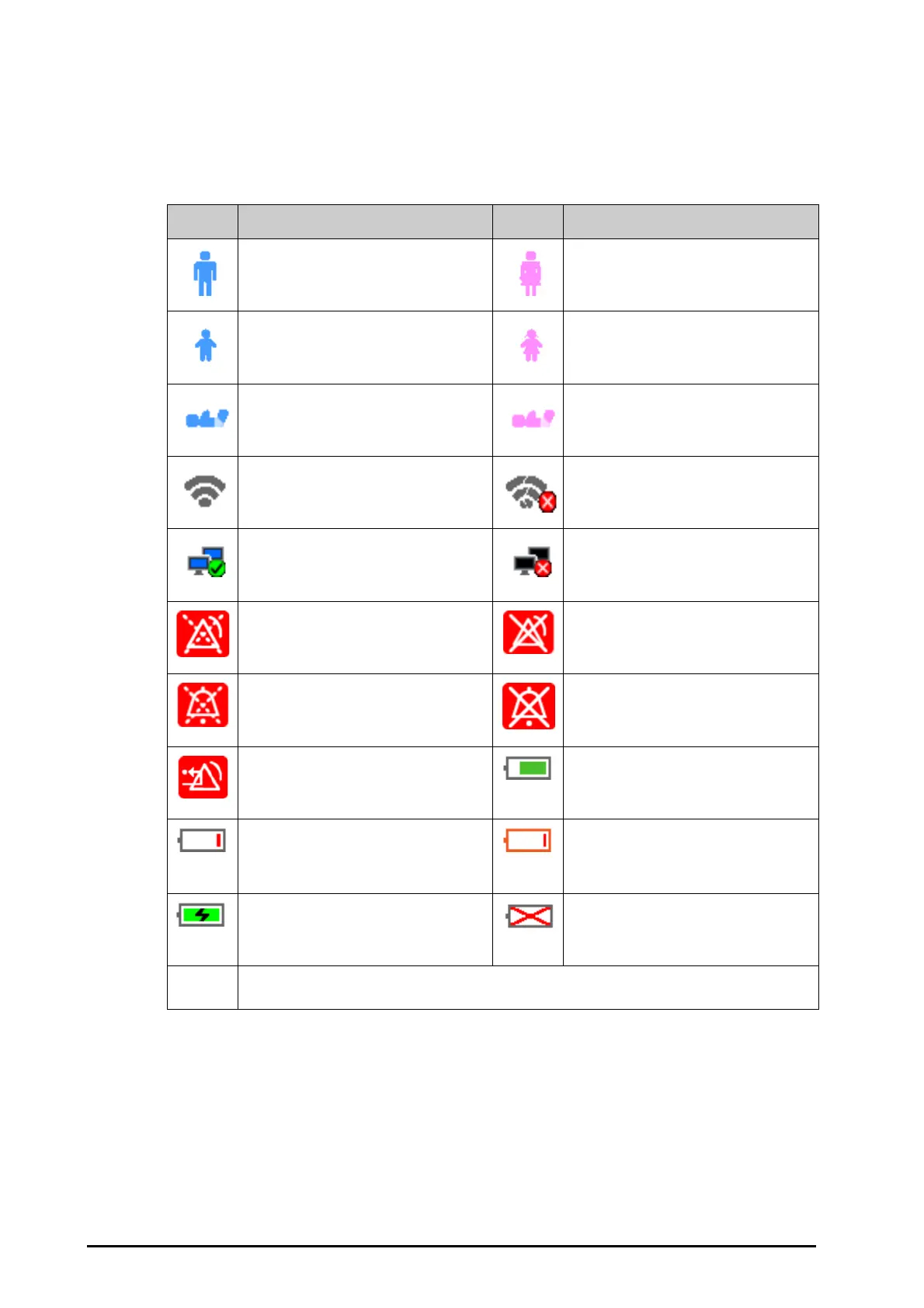

3.6.1 On-screen Symbols
The following table lists the on-screen symbols displayed on the system status information area:
(9) Quick key area: displays selected quick keys.
Symbol Description Symbol Description
Adult, male Adult, female
Pediatric, male Pediatric, female
Neonate, male Neonate, female
Wireless network is connected. The solid part
indicates network signal strength.
Wireless network is not connected.
Wired network is connected. Wired network is not connected.
All the alarms are paused. Individual physiological alarms are turned off
or the monitor is in the alarm off status.
Audible alarm tones are paused. Audible alarm tones are turned off
Alarms are acknowledged and the alarm
system is reset.
The battery works correctly. The green
portion represents the remaining charge.
The battery has low power and needs to be
charged.
The battery has critically low charge and
needs to be charged immediately. Otherwise,
the monitor will soon automatically shut
down.
The battery is being charged. No battery is installed.
+
Indicates that the followed parameter is from an external device connected to the monitor via the BeneLink
module.
