2 - 14 BeneVision N Series Patient Monitor Operator’s Manual
2.3.5.3 BeneVision N1
The BeneVision N1 can be connected to the monitor through the module rack (for N17, N15, N12, N12C), SMR or
through the N1 Dock. It is used as an MPM module.
2.3.5.4 BeneView T1
The BeneView T1 can be connected to the monitor through the module rack (for N17, N15, N12, and N12C), SMR
or through the T1 docking station. It is used as an MPM module.

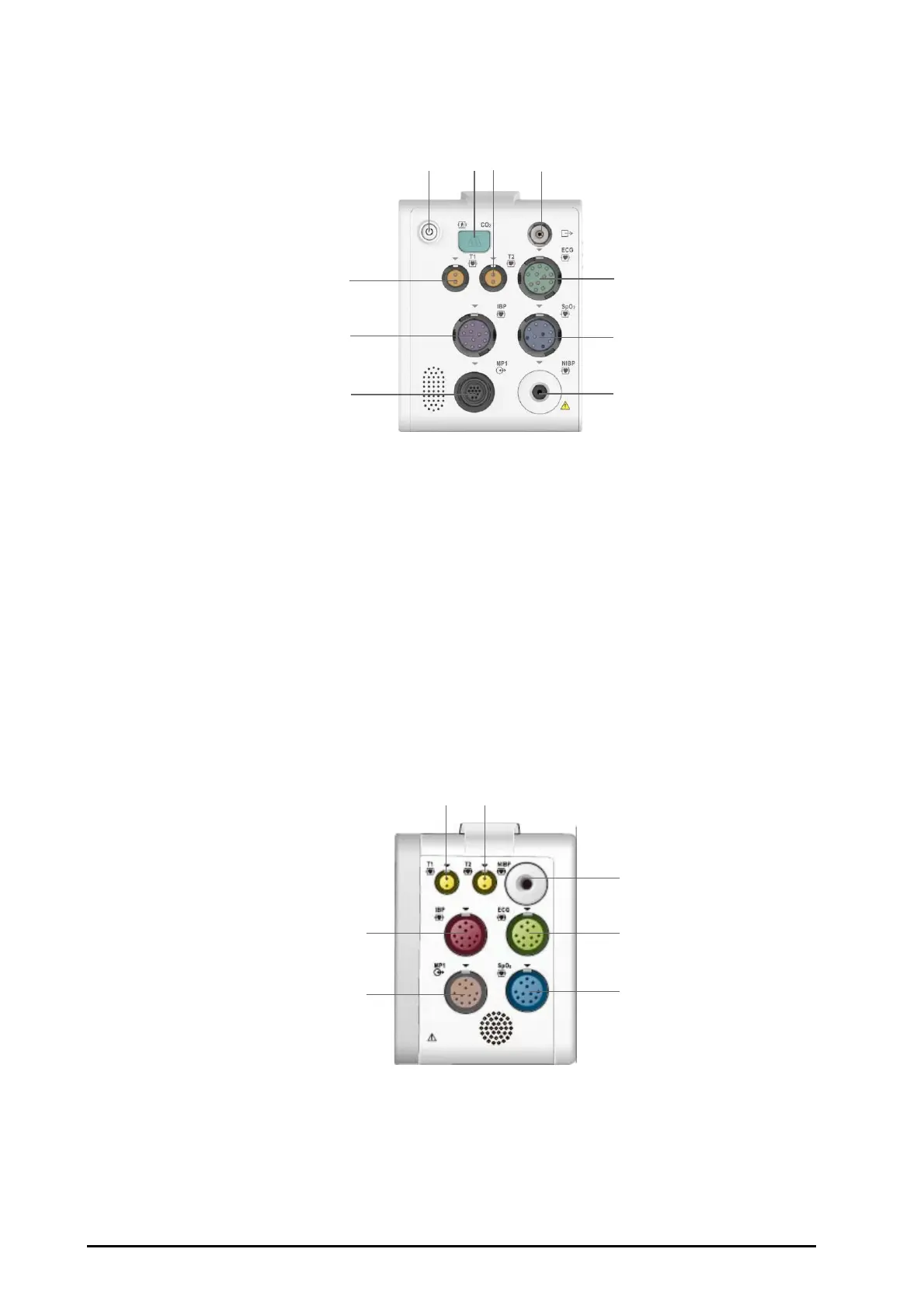

(1) Power switch
(2) Sample line connector of the sidestream CO
2
(3) Temp probe connector
(4)
Gas outlet
(5) ECG cable connector
(6) SpO
2
cable connector
(7) NIBP cuff connector
(8) Multifunctional connector: outputting analog and defib synchronization signal.
(9) IBP cable connector
(2)
(5)
(3)
(1)
(4)
(6)
(7)
(3)
(9)
(8)
(1) Connector for Temp probe 1 (2) Connector for Temp probe 2
(3) IBP cable connector (4) Multifunctional connector: outputting analog and
defibrillation synchronization signal.
(5) NIBP cuff connector (6) ECG cable connector
(7) SpO
2
cable connector
