TM80 Telemetry Monitor Service Manual 8-5
NOTE
 As FPC is fragile and easy to be broken, do not drag FPC hardly. When
assembling FPC, make sure that the Goldfinger is throughly inserted
into the connector.
5. Remove the touch screen FPC at the back of the main control board.
6. Remove the connecting wire on the parameter board and ECG panel.
7. Remove the four M1.6X3.5 cap head screws on the parameter board and
remove the parameter board from the rear housing.

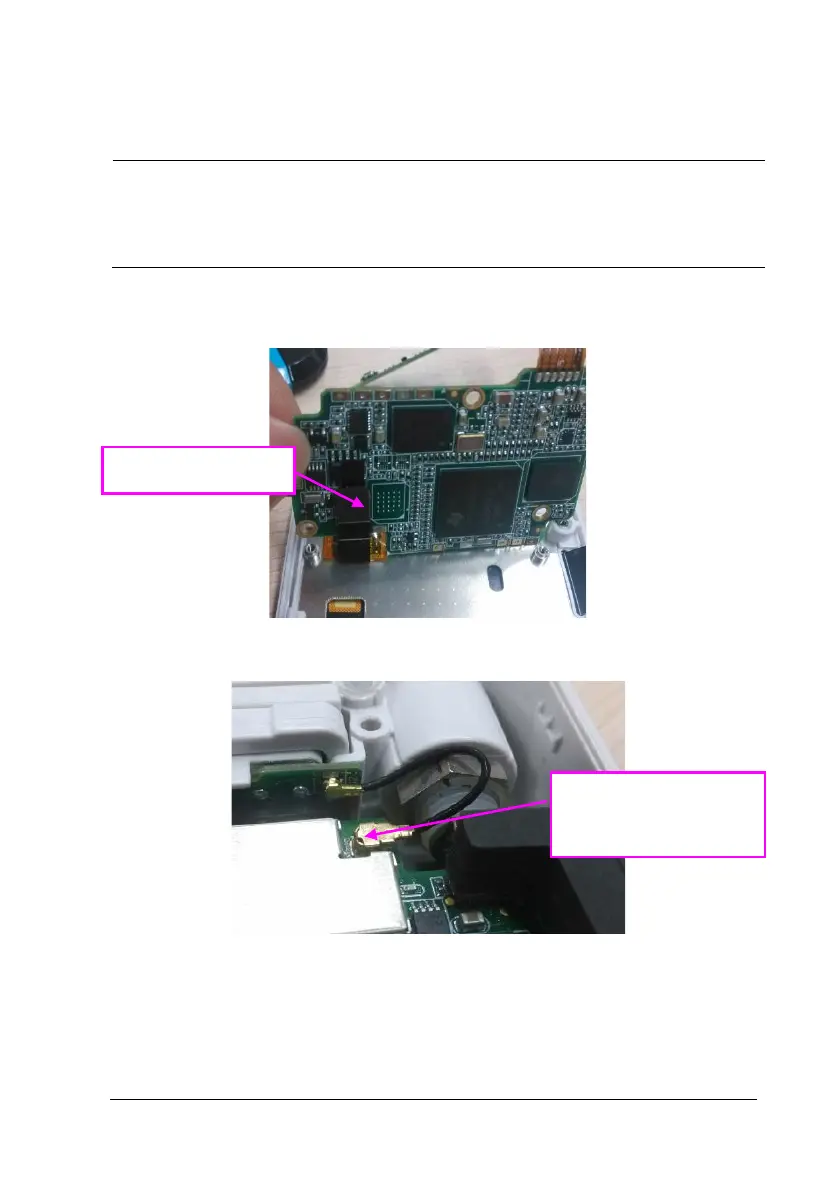

Touch screen FPC
Remove the connecting
wire
