17 - 42 Operator’s Manual
17 Probes and Biopsy

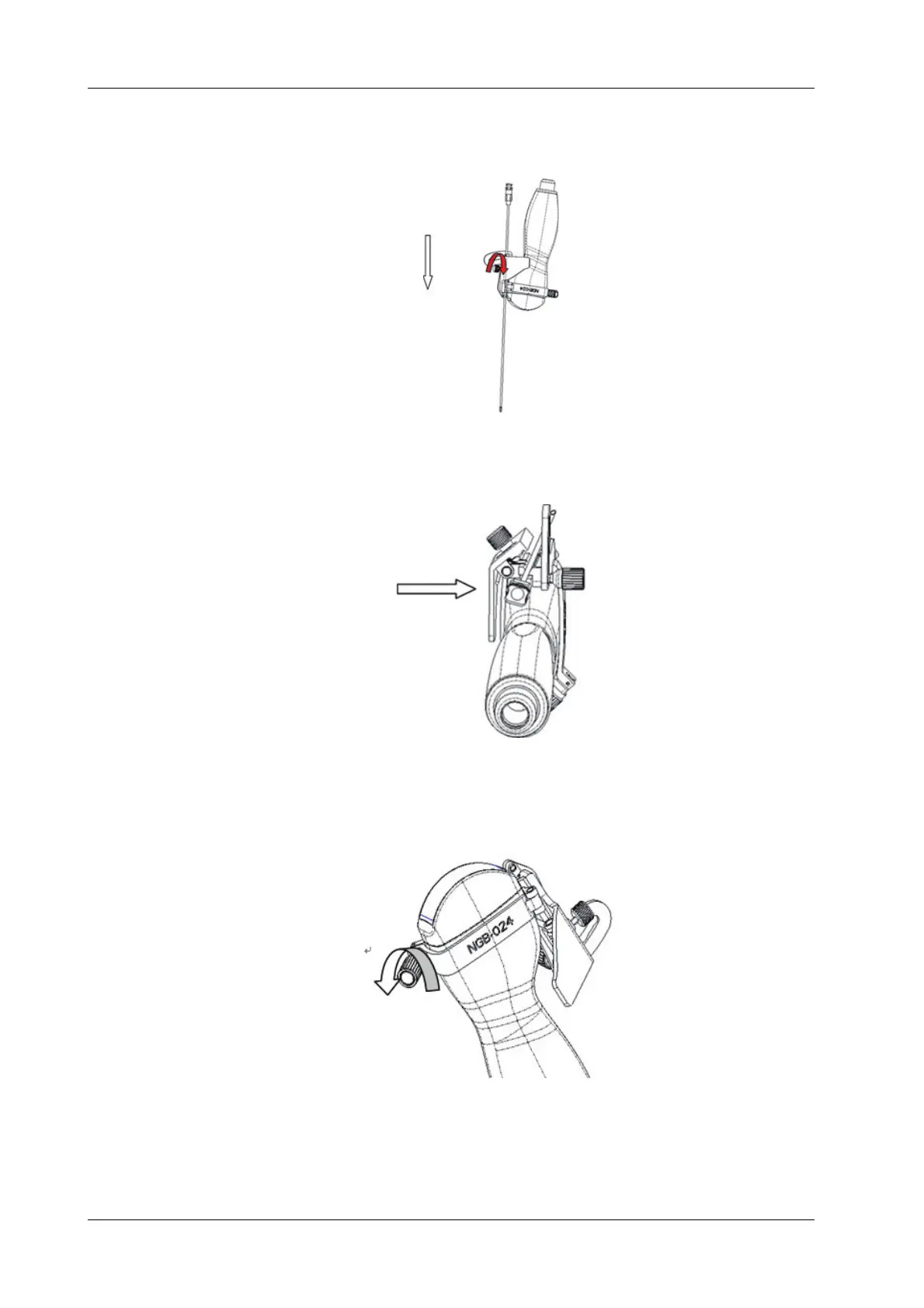

f. Hold the transducer, and release the pressure position of the needle. Adjust the needle-
type adjusting nut manually (following the direction of the arrow). The needle moves
smoothly at the vertical direction due to its gravity.
2. Remove the needle-guided bracket:
a. Hold the transducer. Press the biopsy needle to separate the needle from pressure position
of the needle.
b. Separate the bracket and the transducer from the needle.
c. Rotate the clamping nuts of the needle guided-bracket on right and left side (following the
direction of the arrow). The needle guided-bracket is separate from the transducer. Hold
the transducer and take out the bracket.
