17 Probes and Biopsy
Operator’s Manual 17 - 43
NGB-025

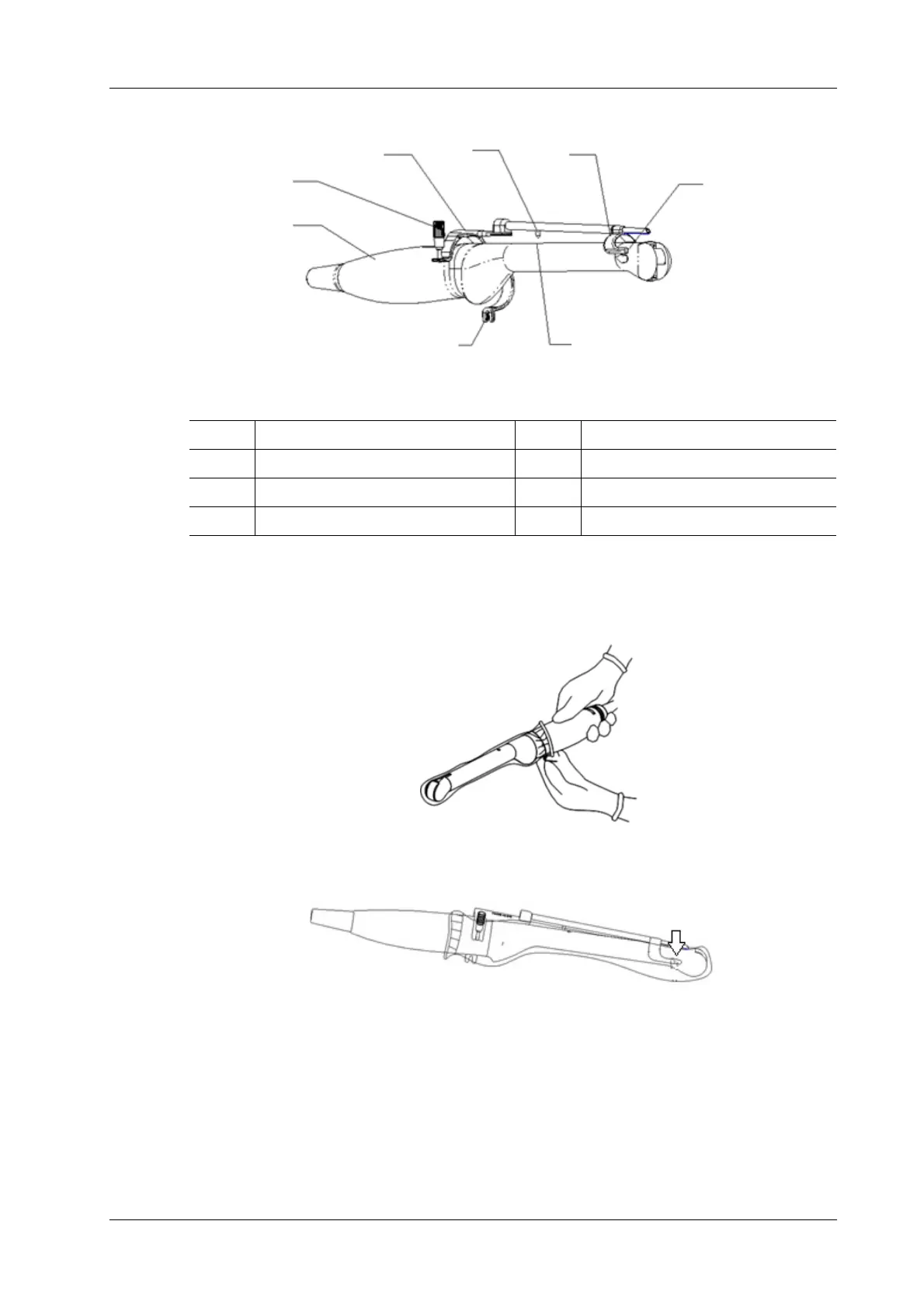

Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Open the clamp. Insert the front clamp to the front groove, and align front clamp with
front groove.
c. Push the biopsy forward (arrow’s direction) until the locating pole inserting into the
location hole. Turn the lower clamp against the intra-cavity probe. Tighten the nut to lock
the biopsy (arrow’s direction)
1 Pinch nut 2 Intra-cavity probe
3 Lower clamp 4 Location hole
5 Front slot 6 Front clamp
7 Location clamp 8 Upper clamp
