17 - 44 Operator’s Manual
17 Probes and Biopsy

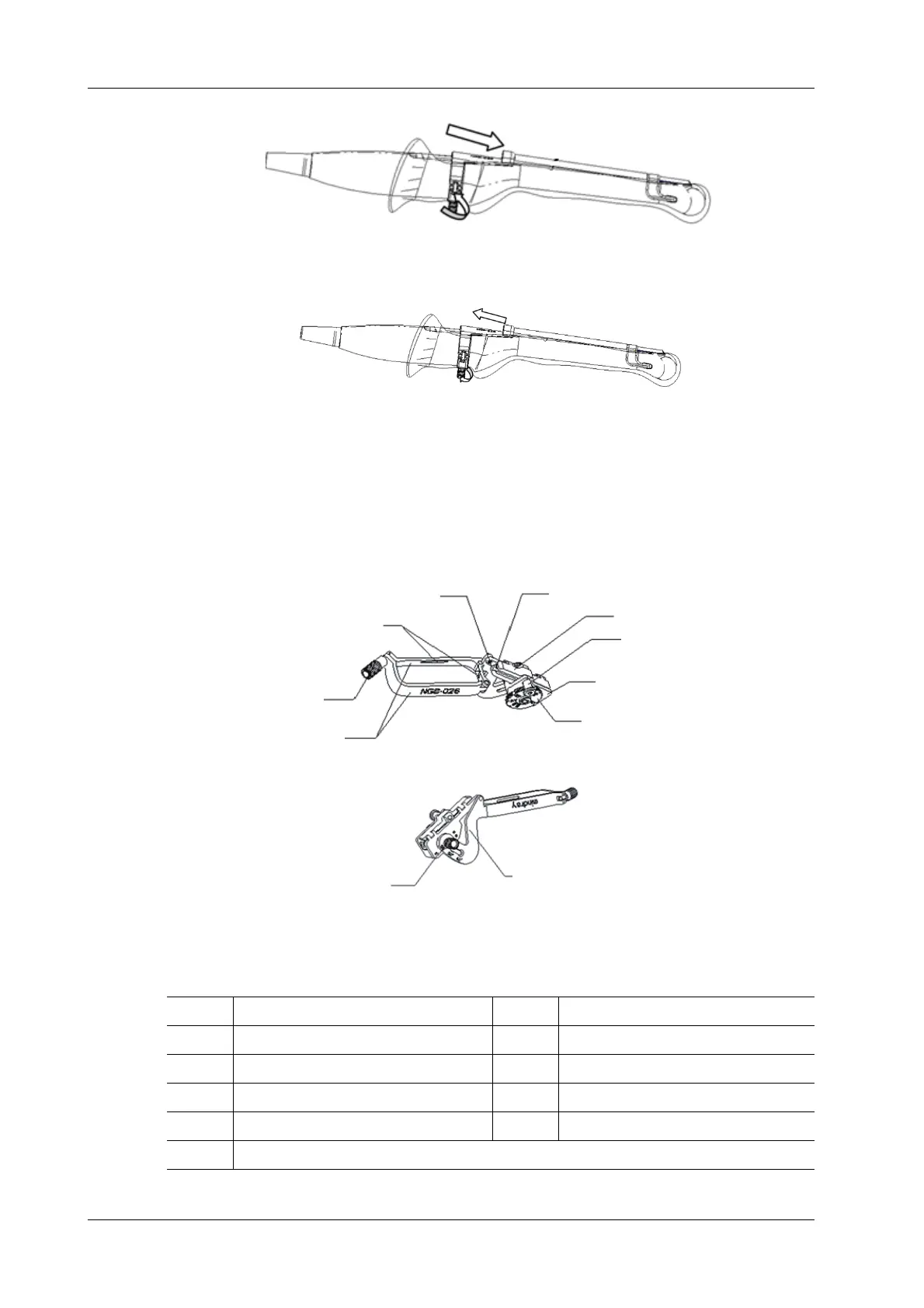

2. Remove the needle-guided bracket:
a. Hold the prober in the left hand; unscrew the locking nut with the right hand to loose the
clamp (arrow’s direction).
b. Lift the biopsy up (towards arrow’s direction). The locating pole, front clamp, the locating
hole and the front clamp become loose.
NGB-026
1 Guiding hole 2 V-shaped cover
3 Lock pin 4 Adjusting base
5 Dial scale 6 Clamp of needle-guided bracket
7 Pinch nut 8 Locating groove
9 V-shaped guiding block 10 Angle adjusting block
11 Angle pinch nut
<9>
<1>
<2>
<3>
<4>
<5>
<10>
<6>
<7>
<11>
<8>
