17 Probes and Biopsy
Operator’s Manual 17 - 47

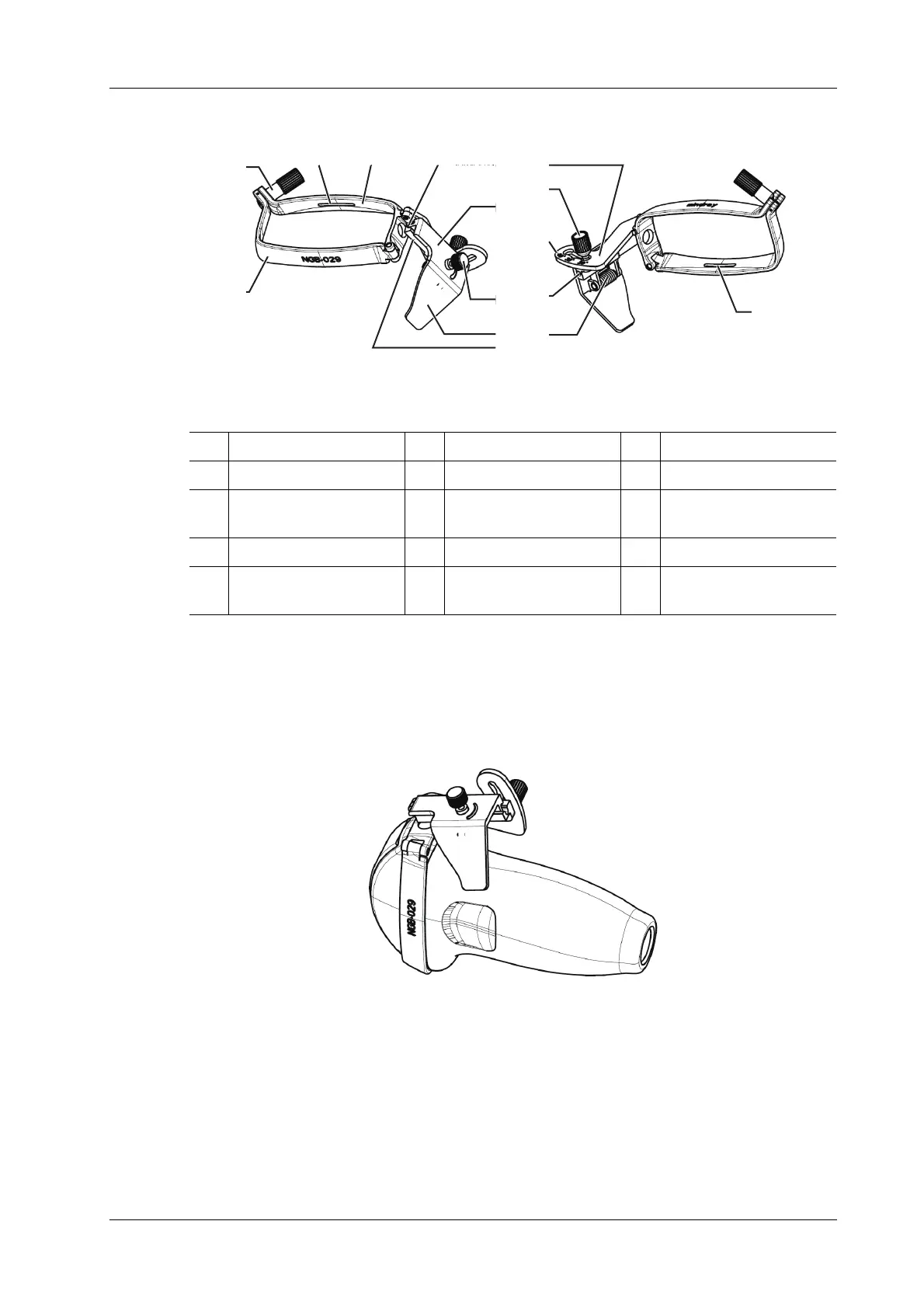

NGB-029
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Select a proper needle-guided bracket, and match the locating groove with the tab of the
probe. Mount the bracket onto the probe.
1 Fixing nut of clamps 2 Clamp 3 Groove
4 Clamp 5 Needle guide hole 6 Needle clamp cover
7 Pinch nut 8 Needle separation
pressure position
9 V-shaped guiding block
10 Angle adjusting block 11 Angle fixing nut 12 Needle mark
13 Angle adjusting base 14 Torsion spring of the
needle pressure cover
15 Groove
1
2
34 5
6
7
8
9
10
11
12
13
14
15
