17 - 48 Operator’s Manual
17 Probes and Biopsy

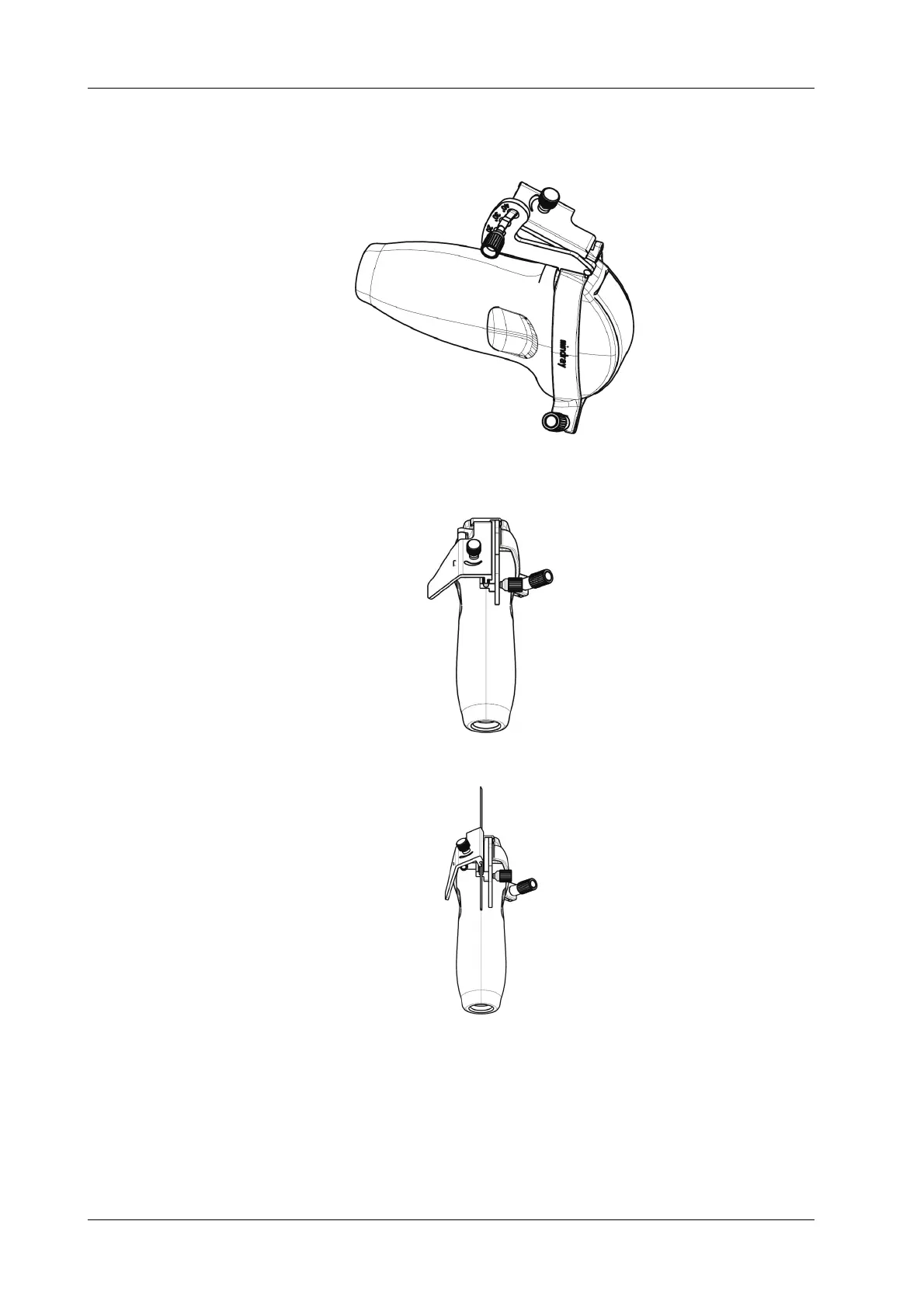

2. Tighten the fixing nut of clamps of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe. And tighten the pinch nut (following the arrow’s
direction).
a. Hold the transducer. Press the pressure position of the needle to separate needle guided V-
shaped block from pressure position of the needle.
b. Put the needle into the needle guided-bracket, and the needle leans to V-shaped block.
