MC2000 – Assembly Instruction Manual
8

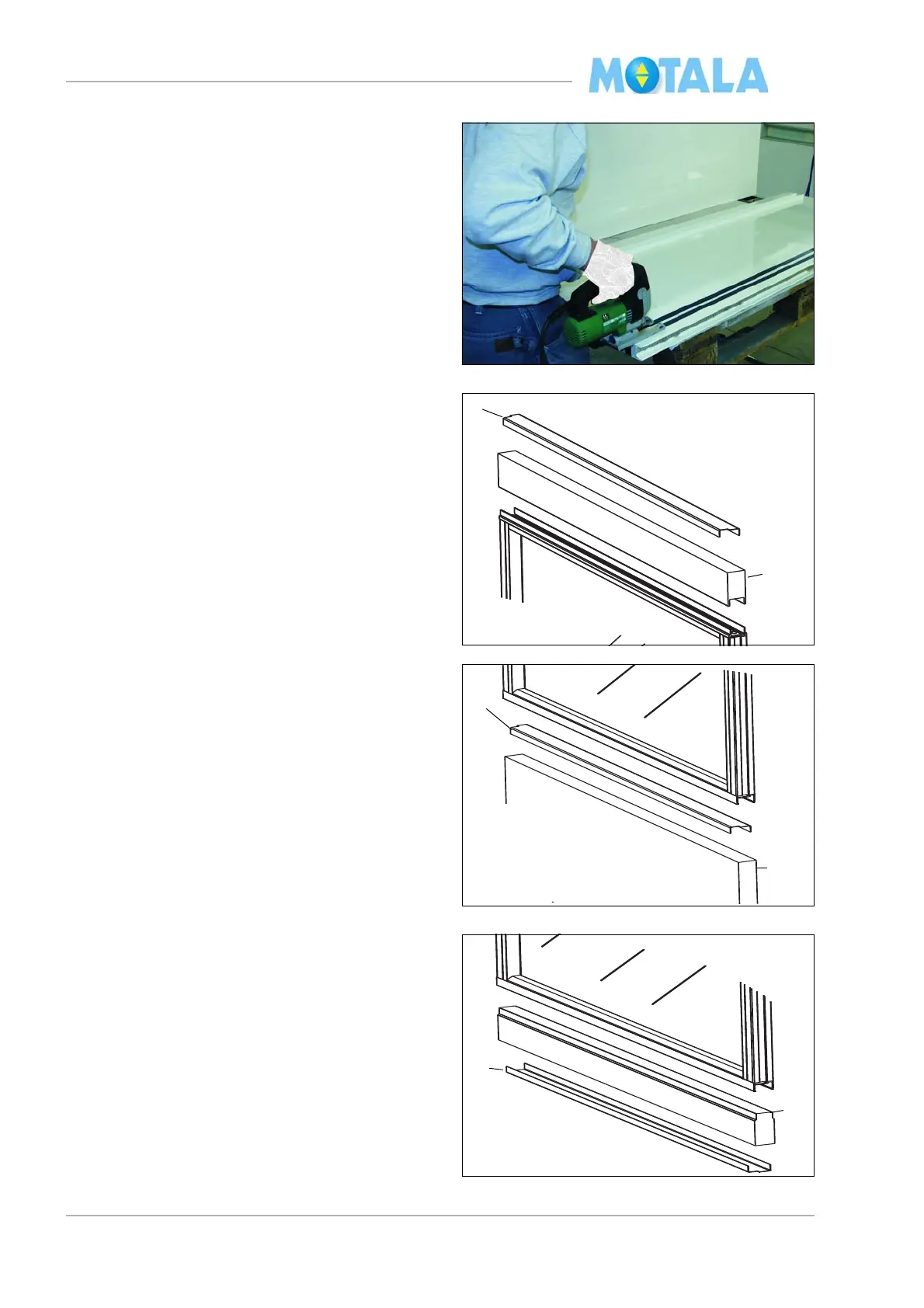

1. Cut the lift well modules with a jigg saw.
Protect the surface with insulating tape or
something similar.
2. Remove the sharp edges.
3. Turn the U-profile with notch 1 towards the
out
side of the lift well. Note that the top U-
profile looks different.
Finish (top clearance of lift well)
Use female section 2 of a lift well module.
Joist passage
Use female section 2 of a lift well module.
Pit
For glass modules, for example.
Use male section 4 of a lift well module.
