MOTALA MC2000 – Mechanical blocking device
Instruction
© 2012 Motalahissar AB 6 (12) IQ56-03 Rev: B

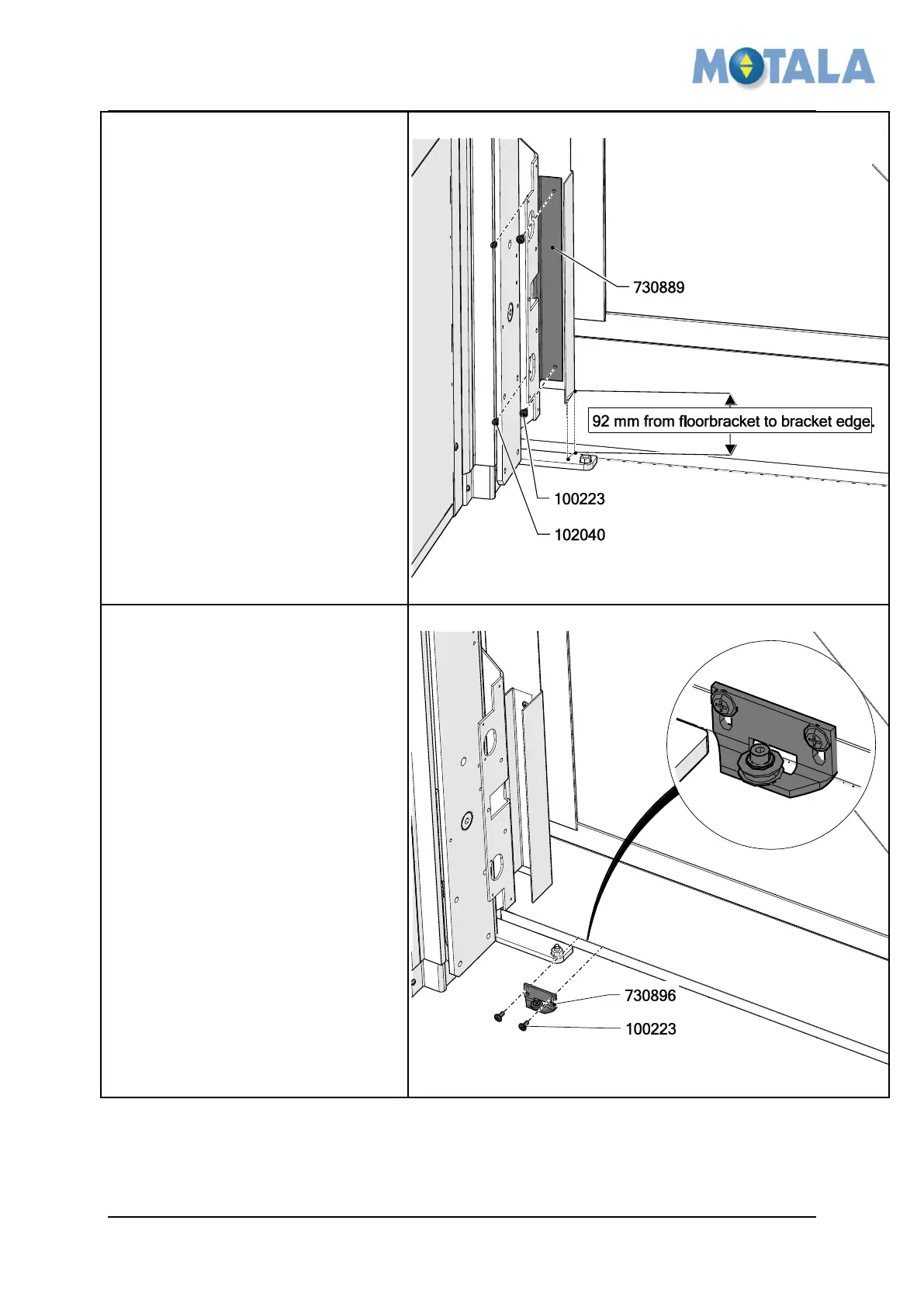

Mount the second bracket
1. Put the second bracket
730889 behind the first
bracket.
2. Use 2x 102040.
3. Use 2x 100223.
Mount the first pulley
1. The first pulley 730896 is
mounted right next to the floor
bracket.
2. Use 2x 100223
