MOTALA MC2000 Automatic door operator when headroom
is 1300mm (so-called “half door”)
Instruction
© 2012 Motalahissar AB 4 (6) IQ56-08
Rev: -
5. Installation
This instruction shows the installation of a automatic door operator part no. 730955
on a left-hinged door. For right-hinged door use automatic door operator part no.
731059.
Connect cables

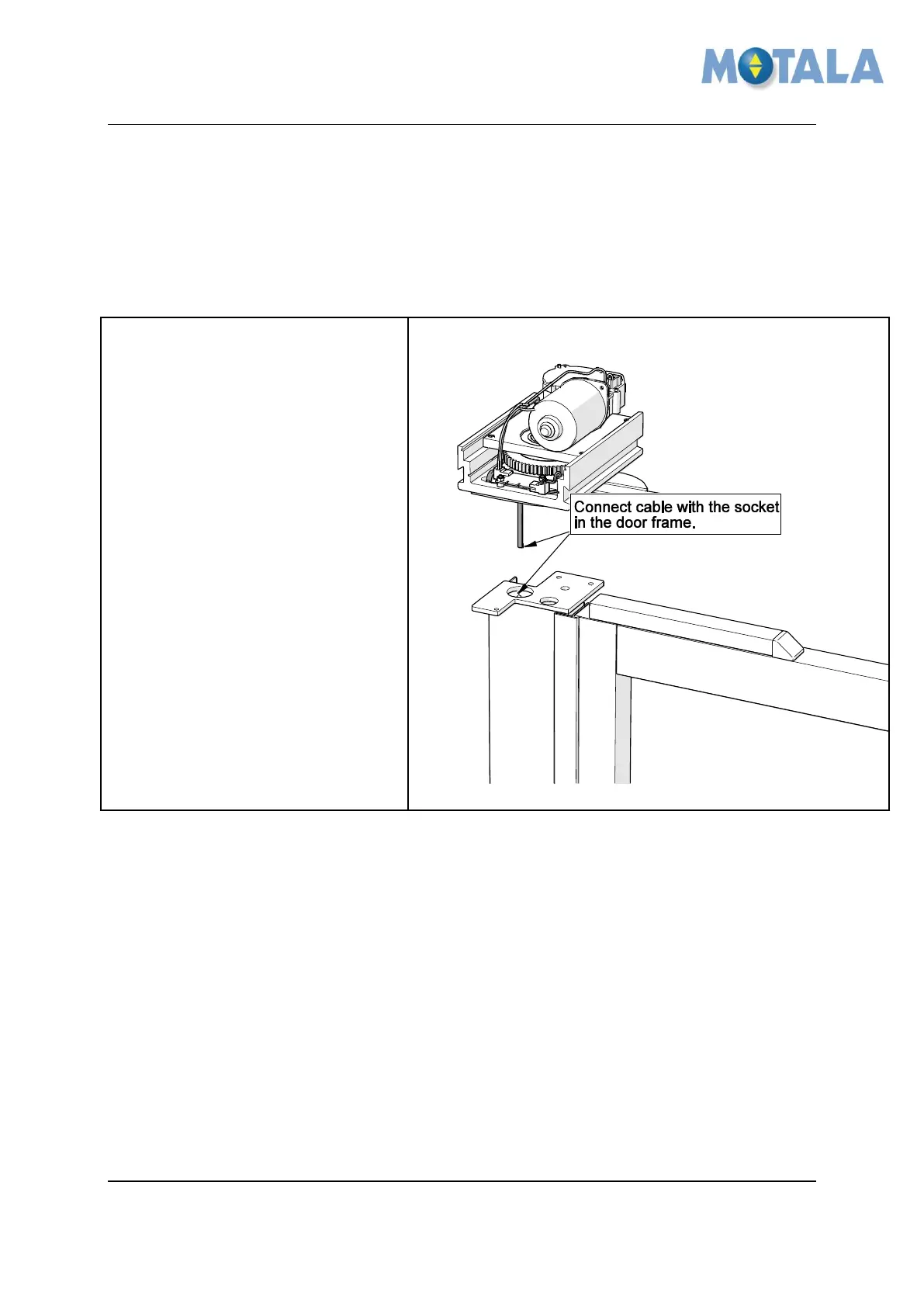

1. Remove the cover on the
automatic door operator.
2. Connect the cable from the
motor unit to the socket in the
door frame.
3. Not. All cables are not correct
shown in this illustration.
