MC2000 – Assembly Instruction Manual

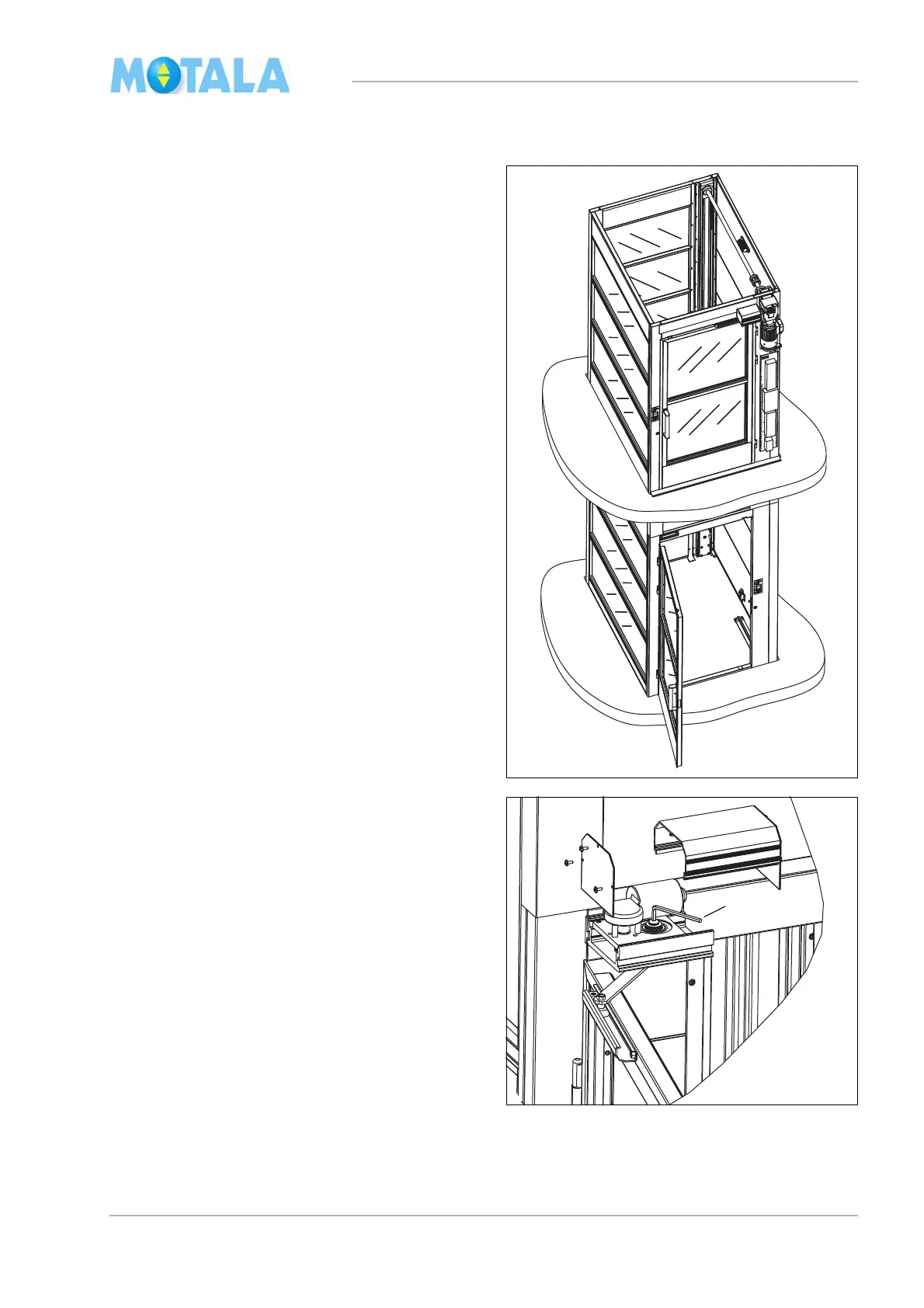

Door panel and removal of work platform
1. Secure the door openings so that nobody
can accidentally fall into the lift well.
2. Install all the sills loosely except on landing
0 w
here the sill should be fitted properly af-
ter fastening the lift well.
3. Hang up the doors.
4. Remove the work platforms and close the
door
s as the platforms are being removed.
5. Adjust the doors and the lock box. (There
shoul
d be an approximate play of 1 mm.)
Adjust by loosening the screw above the
lock box, push the loose wedge upwards or
downwards.
6. Fasten the screw.
7. Install the door closer or electric door
opener
, with the exception of landing 0
where only the door panel should be fitted.
The door closer is fitted after the fastening
of the lift well.
8. The electric door opener moment is fac-
tory-set.
The adjustment of door opening times for elec-
tric door openers is made later. See separate
ins
tructions in the electrical diagram.
